SereneDrains 16 Inch Satin Gold Linear Shower Drain Broken Lane Design
SereneDrains 16 Inch Satin Gold Linear Shower Drain Broken Lane Design
serene_linear_drain_broken_lane

SereneDrains 16 Inch Satin Gold Linear Shower Drain Broken Lane Design

Regular price $249.00 $0.00 Unit price per
Shipping calculated at checkout.

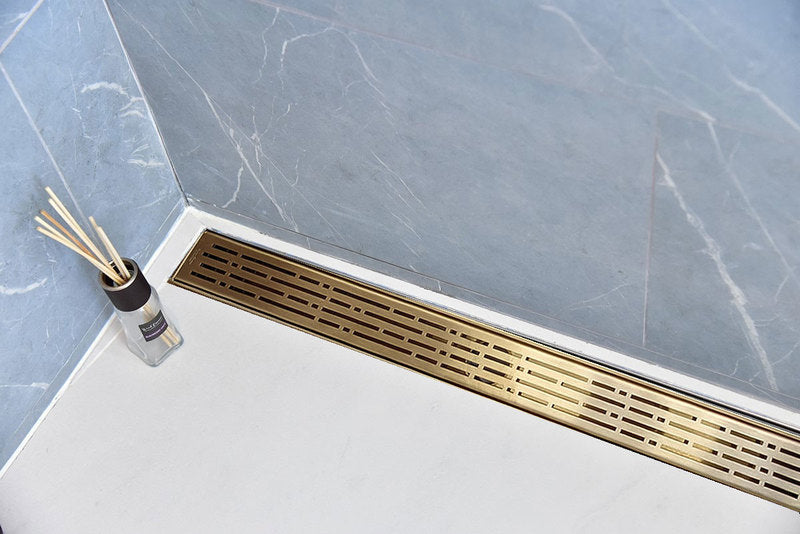

SereneDrains Satin Gold 16 Inch Linear Shower Drain Broken Lane Design

Drain Include: 100% stainless steel channel body & grate, drain rubber gasket, puller key, waterproofing membrane sheet around the drain flange (not require but included), Installation Instruction. Hair strainer NOT included.

Available In: 16", 24", 30", 35", 39", 47", 59".
Perfect for: wheelchair access and barrier-free showers (walk in floor plans).
Applications: Bathrooms, kitchens, pools, balconies, hotel rooms, gym, spa etc.

Features:

  • Electro polished finish. Bodies are fully welded and leak tested prior to dispatch.
  • 2 Inch diameter central vertical outlet, designed to be installed into any 2" shower drain flange.
  • Compatible with tiles up to 10mm depth (14mm lip).
  • Pre-slope channel. Channel width: 2 3/4" (70 mm).
  • Sized to match standard 1/2", 1", 2, and 4" tile without cutting.
  • Drain grade is 16 gauge 304 stainless steel.
  • Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).

Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.

Dimensions:

Length 15 3/4" x 2 3/4" (400mm) Intake sq. in: 12.38.
Length 23 1/2" x 2 3/4" (600mm) Intake sq. in: 14.96.
Length 30" x 2 3/4" (732mm) Intake sq. in: 17.62.
Length 35 3/8" x 2 3/4" (900mm) Intake sq. in: 20.03.
Length 39 3/8" x 2 3/4" (1000mm) Intake sq. in: 21.12.
Length 47 1/4" x 2 3/4" (1200mm) Intake sq. in: 26.68.
Length 59" x 2 3/4" (1500mm) Intake sq. in: 31.67.

Available accessories include plumbing connectors (ABS/ PVC flange) and debris strainer. Drain Accessories

Contact us for contractors and quantity discounts.
