Regular price $305.00 $0.00 Unit price per
Shipping calculated at checkout.

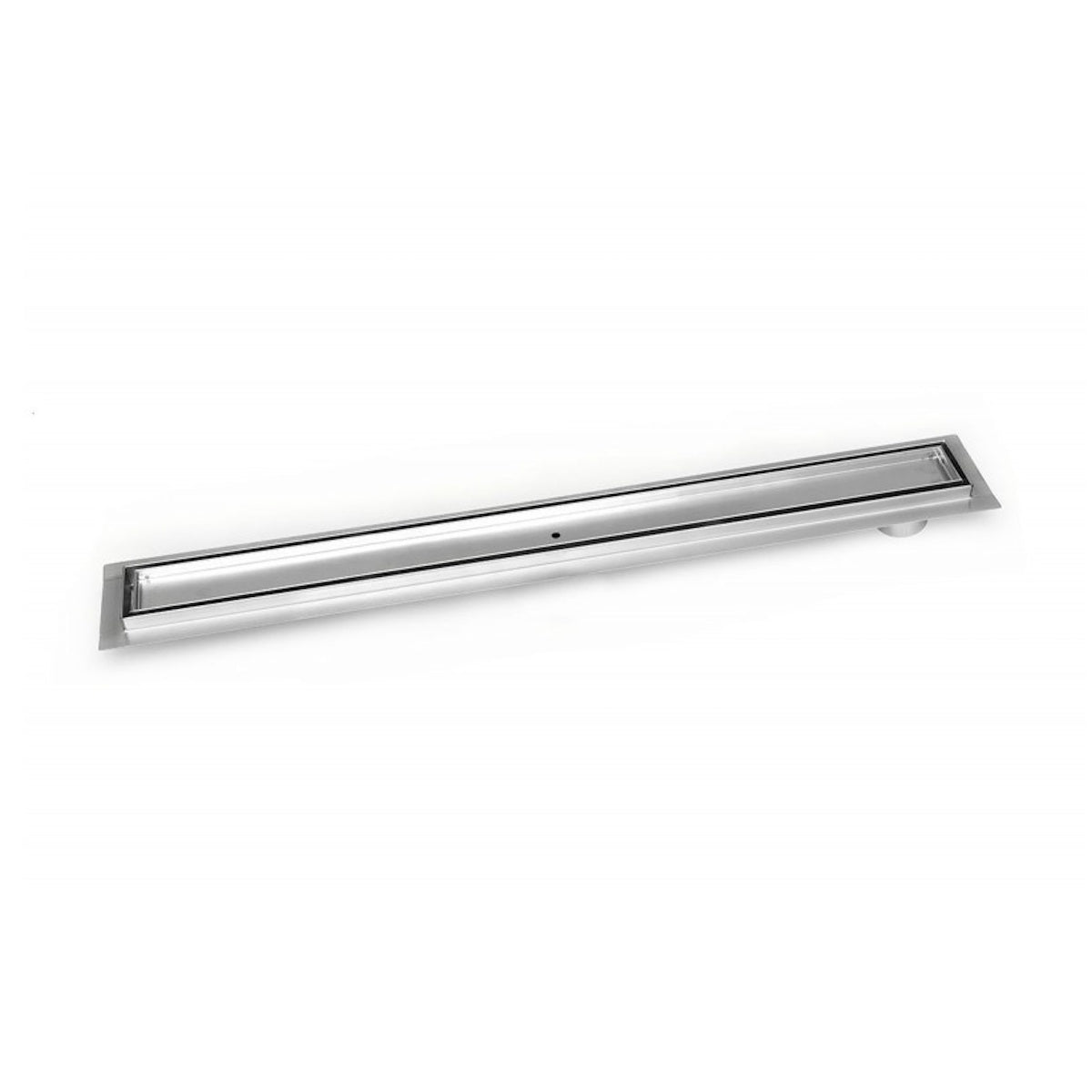

Linear Shower Drain Side Outlet 36 Inch (Brushed Nickel) With Rubber Gasket & Hair/Debris Strainer

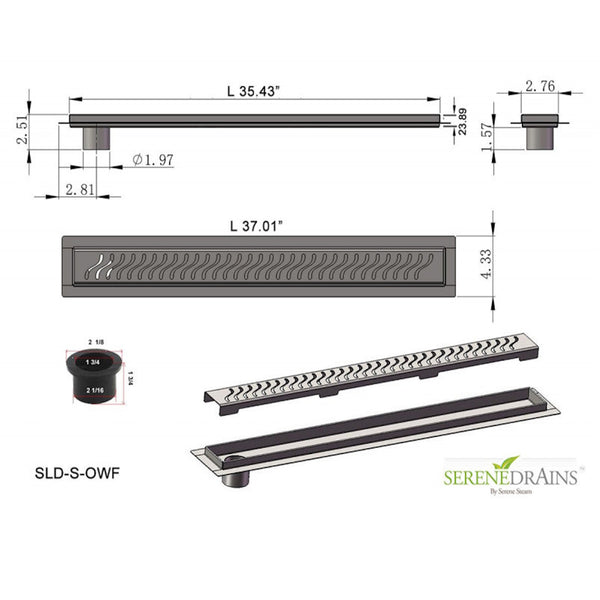

Net Size: (visible on floor) 35 3/8" x 2 3/4" (900mm) | Overall Size: 37.01" x 4 3/8" | Intake sq. in: 20.03.

Use the Offset Outlet Linear Drain If drain outlet already exists on the side of the shower. if joist is in the center of the shower opening and notching or drilling is not an option. If shower is set on a 4 inch or more concrete and relocation of the drain outlet is costly. Central vertical outlet linear drains also available (Consult a professional).

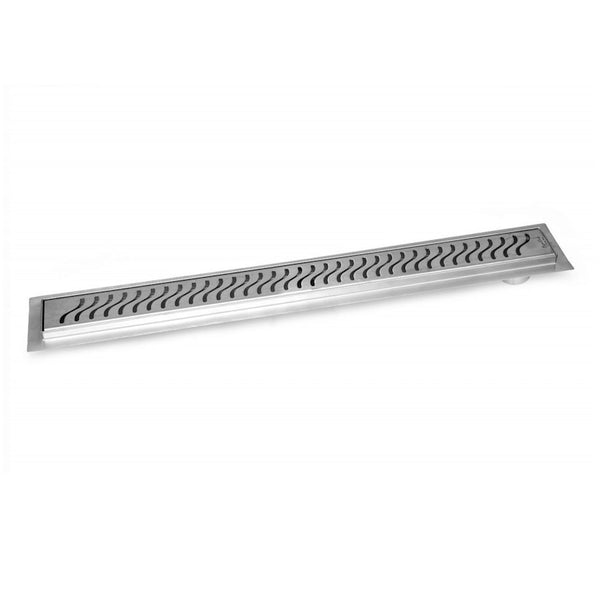

6 Luxurious Designs: Wind Design, Ocean Wave Design, Traditional Square Design, Broken Lane Design, Tile Insert Design, Linear Wedge Design.

Drain Includes: 100% stainless steel channel body & grate, puller key, waterproofing membrane sheet around the drain flange (not require but included), Installation Instruction.

Perfect for:
Wheelchair access (ADA complaint) & barrier-free showers (walk in floor plans).
Applications: Bathroom, kitchen, pool, balconies, hotel rooms, gym, spa etc.

Features:
Side outlet drain apex 2.8" oc of drain end, designed to be installed into any 2" shower drain flange.
Bodies are fully welded and leak tested prior to dispatch.
Compatible with tiles up to 10mm depth (14mm lip).
Electro polished finish. Pre-Slope channel.
Channel width: 2 3/4" (70 mm).
Serene Drains are sized to match standard 1/2", 1", 2, and 4" tile without cutting.
Drain grade is 16 gauge 304 stainless steel (The Wedge design grade is 6 gauge 304 stainless steel).
Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).
Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc.
