59 Inch Offset Outlet Linear Shower Drain with Hair Trap by SereneDrains

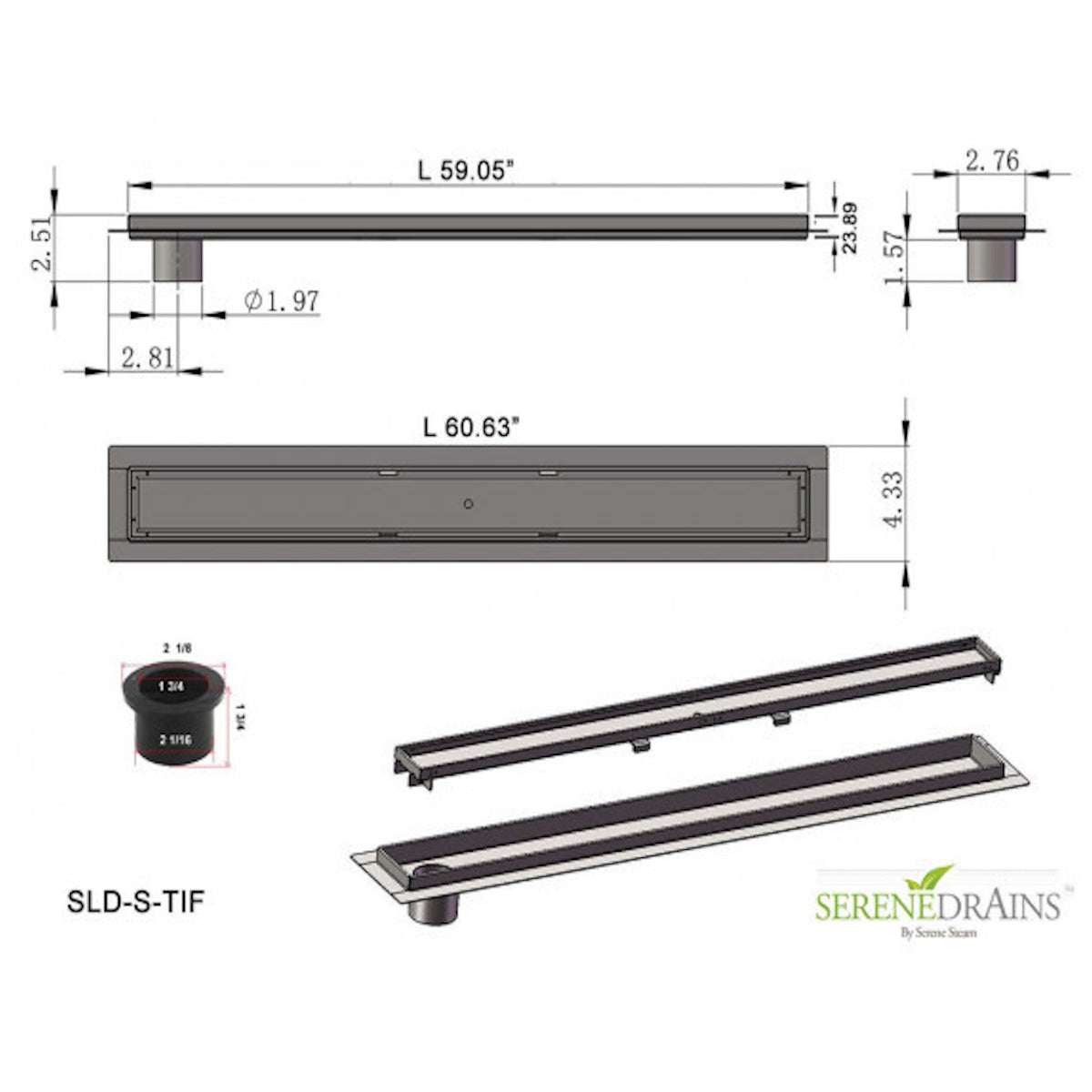

Net: 59" x 2 ¾" (1500mm) | Overall: 60.63" x 4 ⅜" | Intake: 27.01 sq. in. | Offset: 2.8" from end
Use this linear drain when a center outlet won't work:
Joist in the way: When a floor joist sits directly beneath the drain location, building codes and structural requirements can limit where and how it may be cut, notched, or drilled. This offset outlet linear drain positions the connection 2.8" from the drain end instead of centered, helping position the waste-line connection away from the joist and potentially avoiding the need to modify it.
Slab-on-grade construction: Showers built over poured concrete present a real challenge when the existing plumbing doesn't line up with a standard center outlet. Relocating drain plumbing in a concrete slab means breaking concrete, extensive demolition, and added labor costs. If your existing rough-in falls within the drain's offset range, you can connect directly to it, potentially avoiding slab-cutting or coring.
Existing off-center outlet: Older bathrooms, previous remodels, and existing rough-ins don't always have plumbing centered beneath the shower. This offset outlet linear drain is built to match plumbing that's already positioned off-center, so you can work with the existing waste pipe instead of relocating it, saving time, labor, and remodeling costs.
Specifications
| Net size | 59" x 2 ¾" (1500mm) |
| Overall size | 60.63" x 4 ⅜" |
| Intake area | 27.01 sq. in. |
| Offset outlet | 2.8" from drain end |
| Channel width | 2 ¾" (70mm), pre-sloped |
| Material | 16-gauge 304 stainless steel, electro-polished, fully welded, leak-tested, corrosion-resistant |
| Finish | Brushed Stainless Steel |
| Flow rate | 6.3 GPM entrance / 9.5 GPM wall-adjacent |
| Tile compatibility | Up to 10mm (14mm lip), sized to ½", 1", 2", 4" modules |
| Waterproofing | Hot mop, membrane, sheet, vinyl, all standard methods |
| Connection | Standard 2" flange |
| Maintenance | No special cleaning required |
| Availability | In stock, ships same day |
Included
Stainless channel and grate, rubber gasket, puller key, waterproofing membrane, hair/debris strainer, installation instructions.
Grate Styles

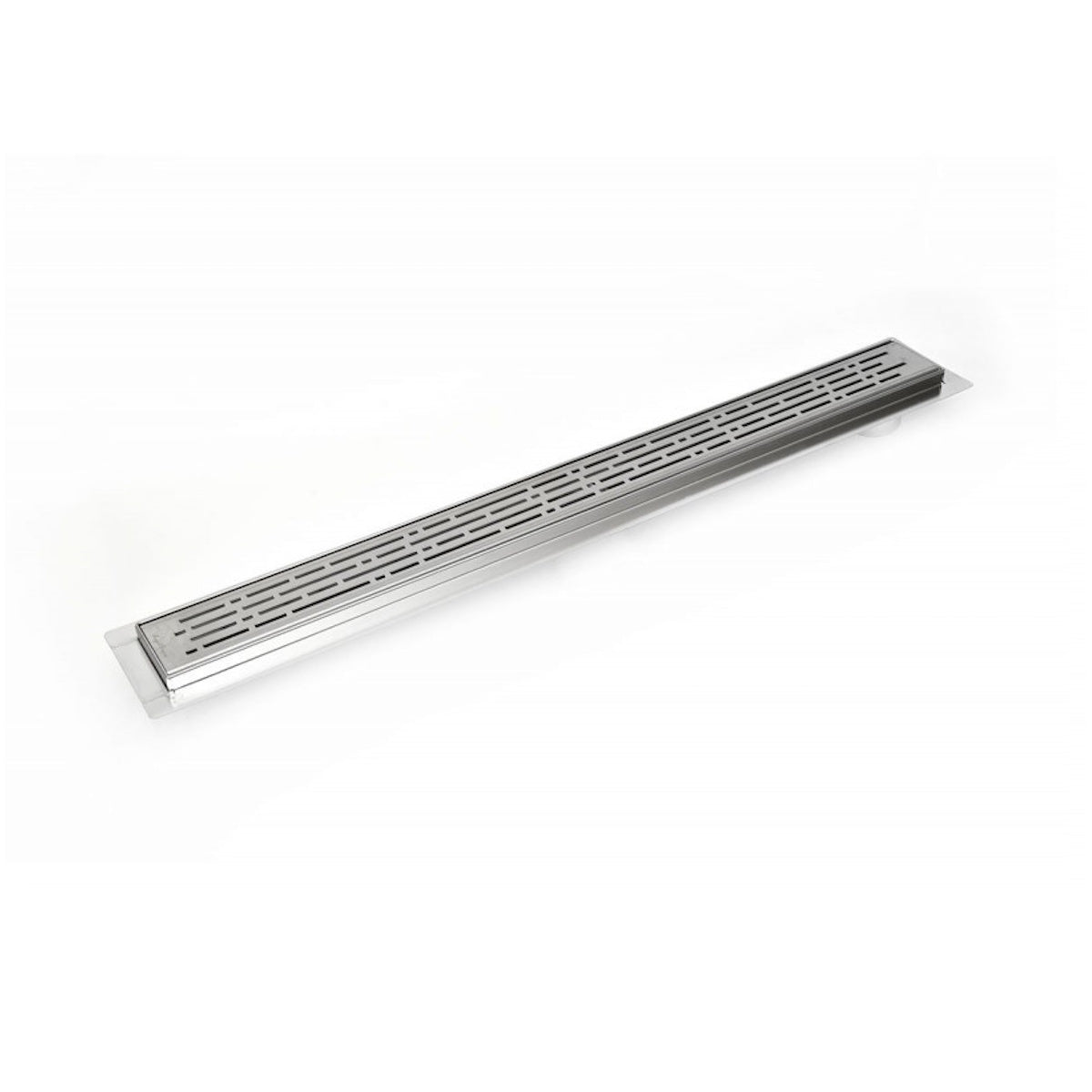

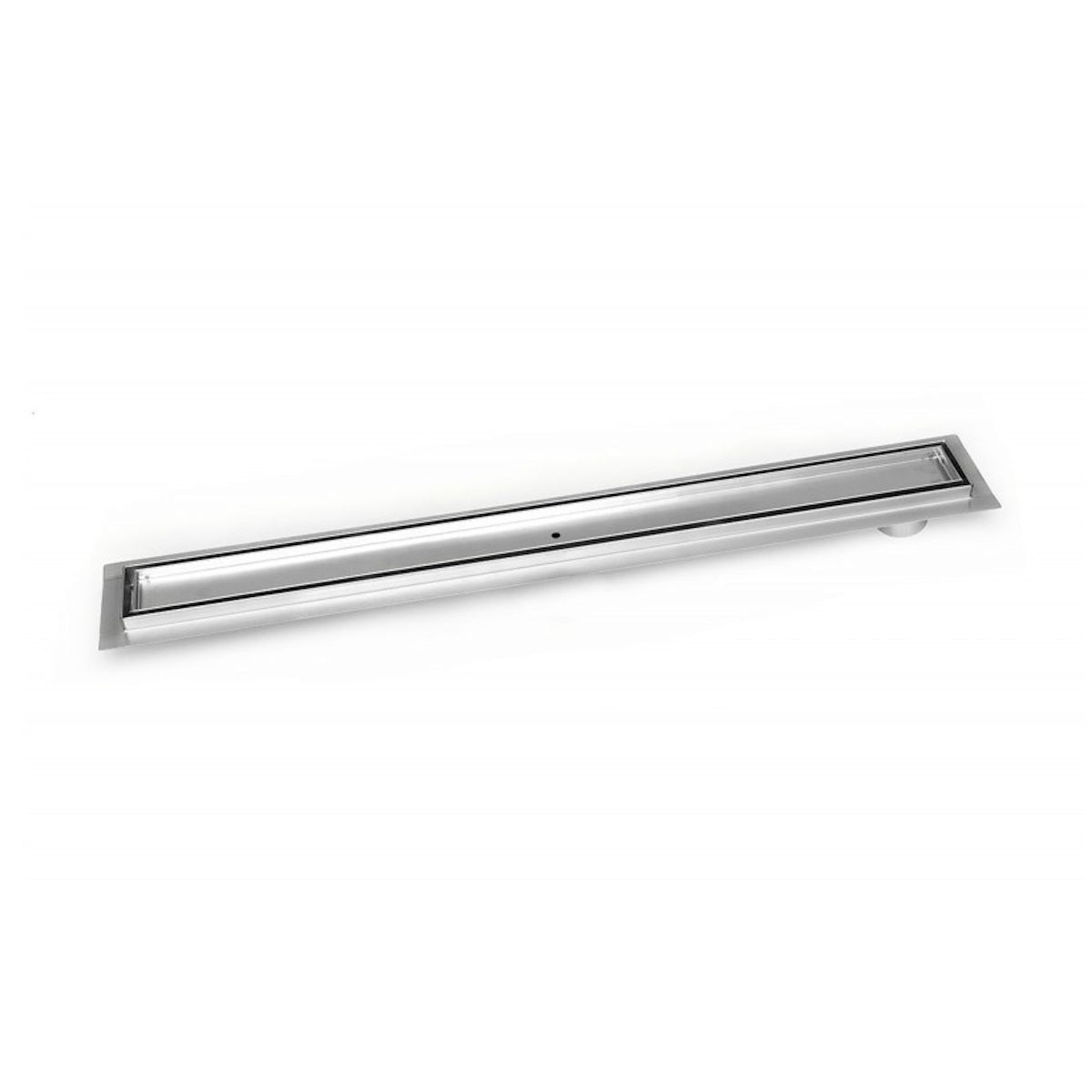

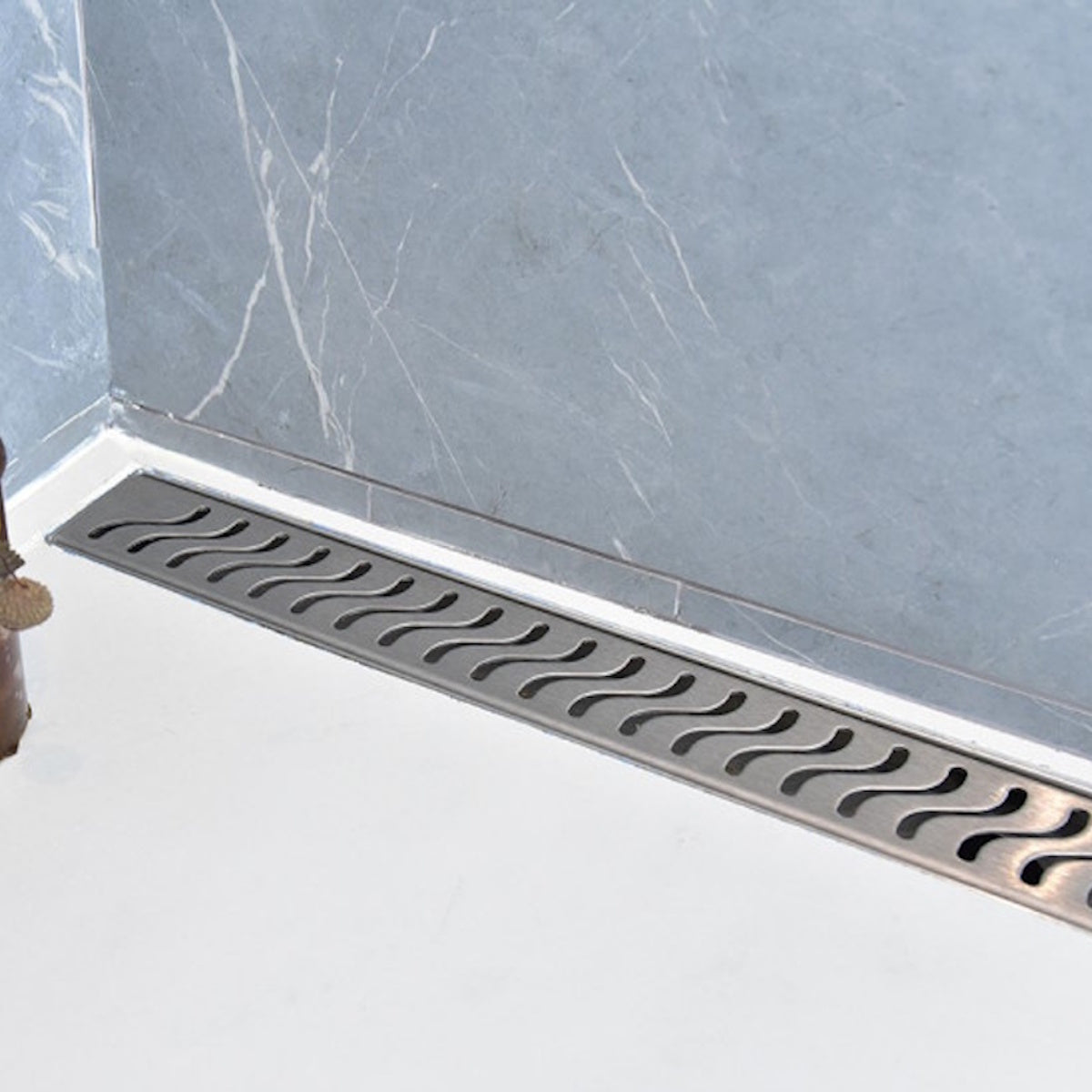

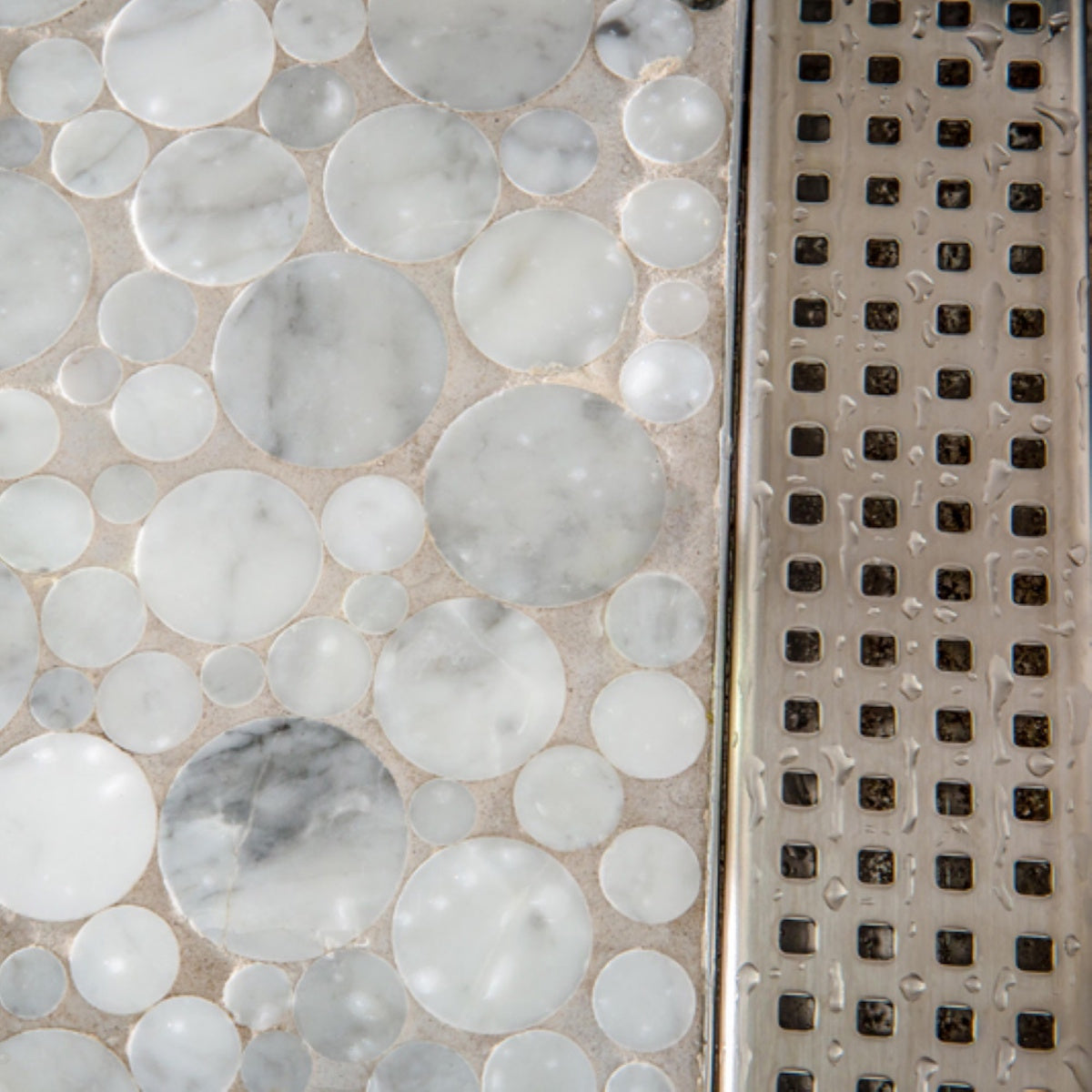

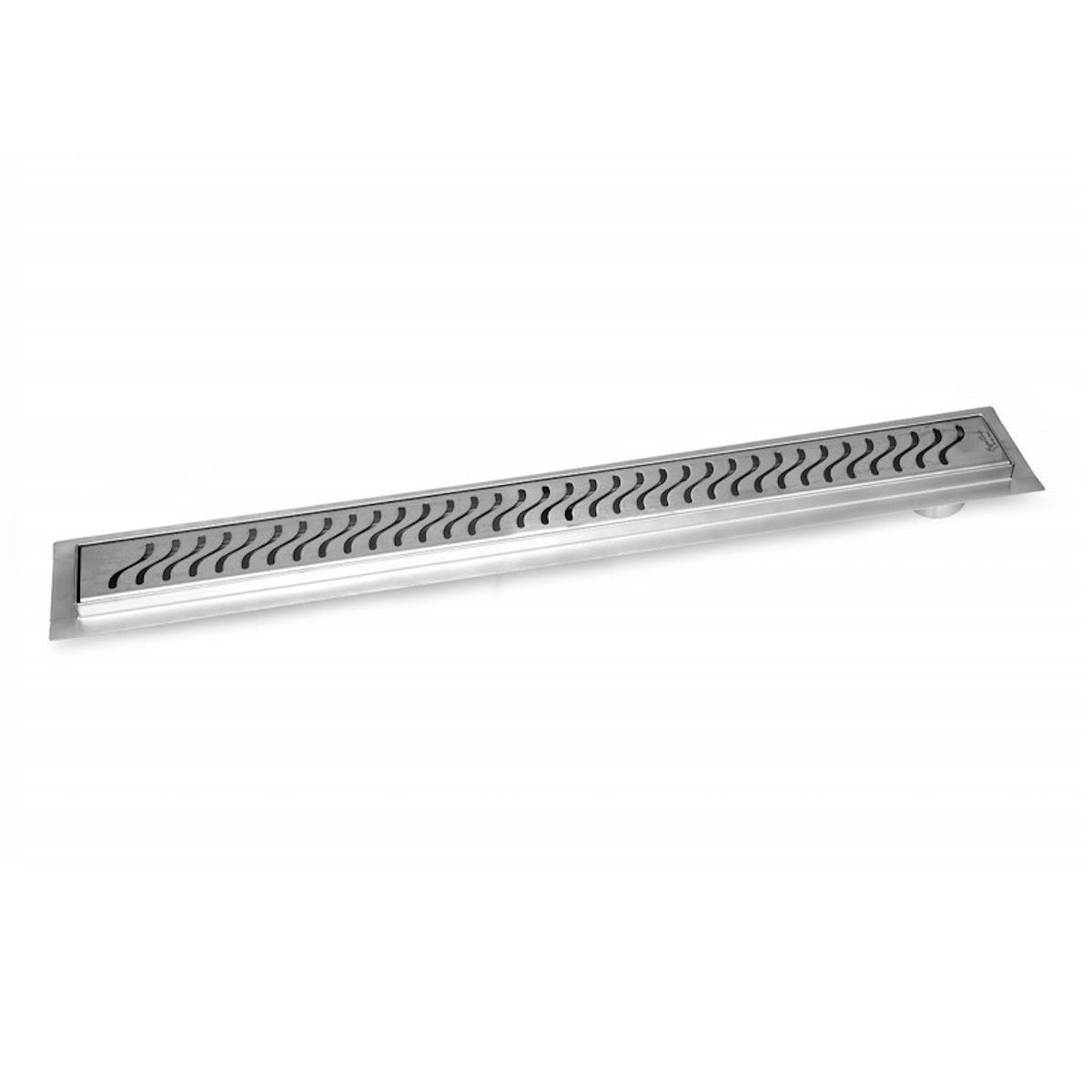

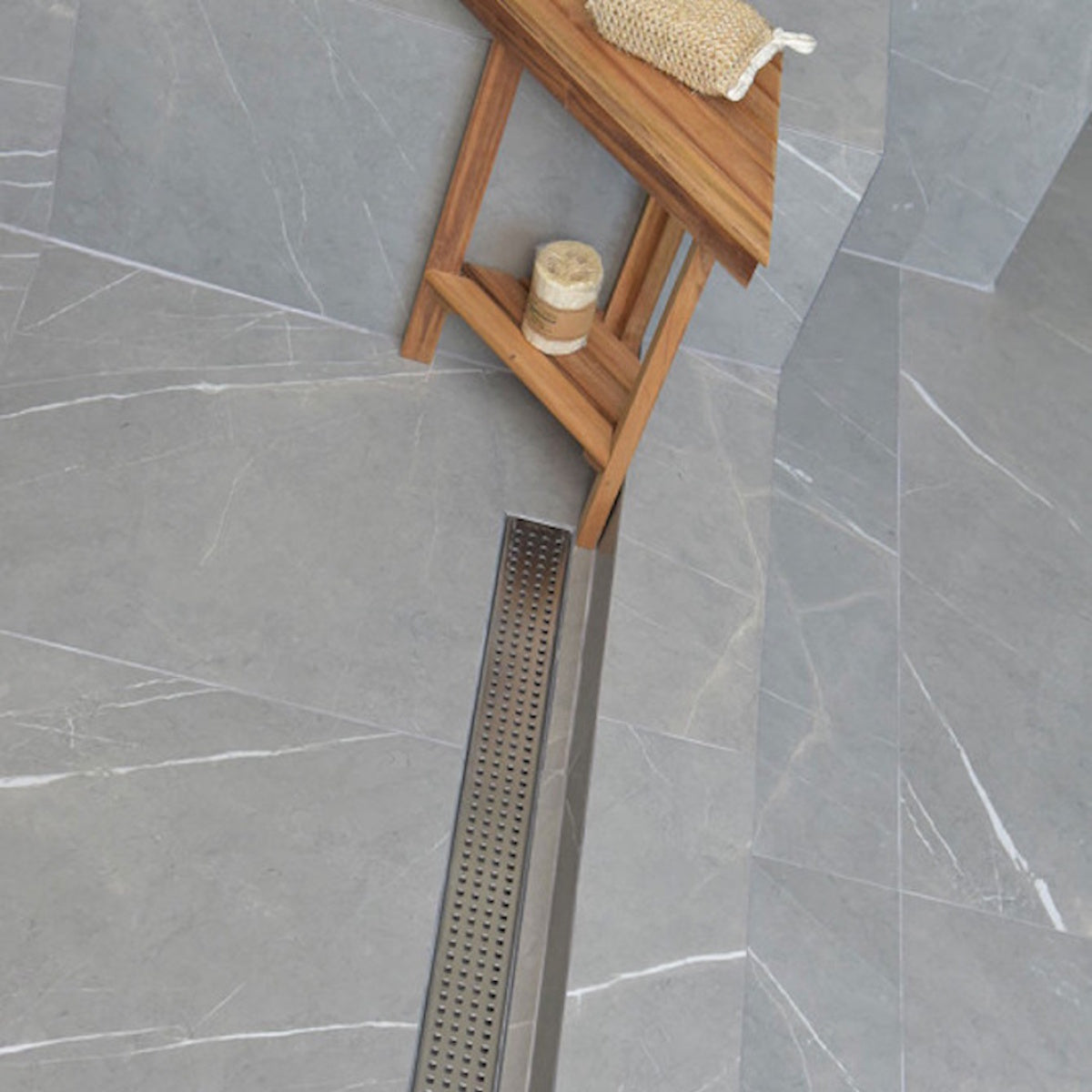

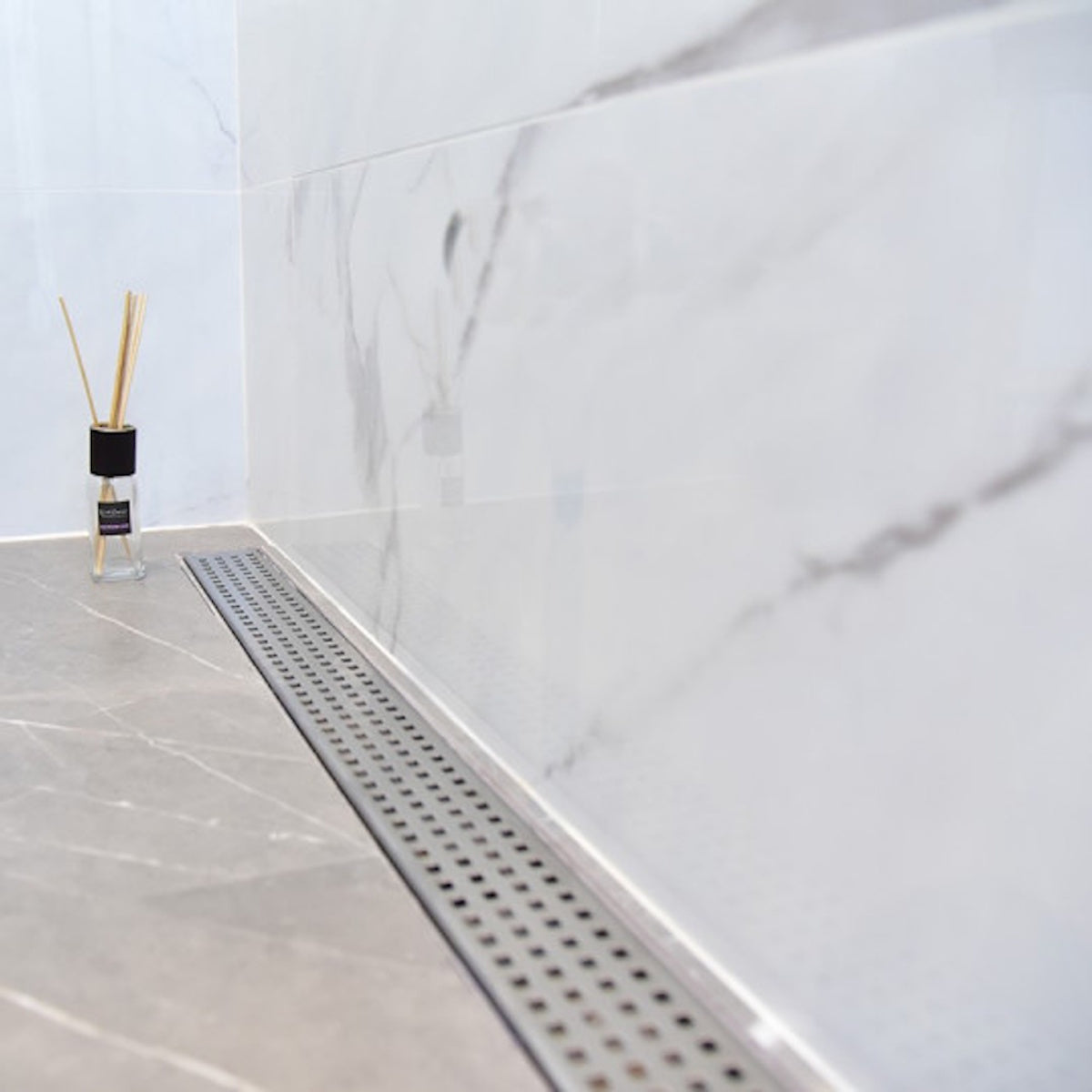

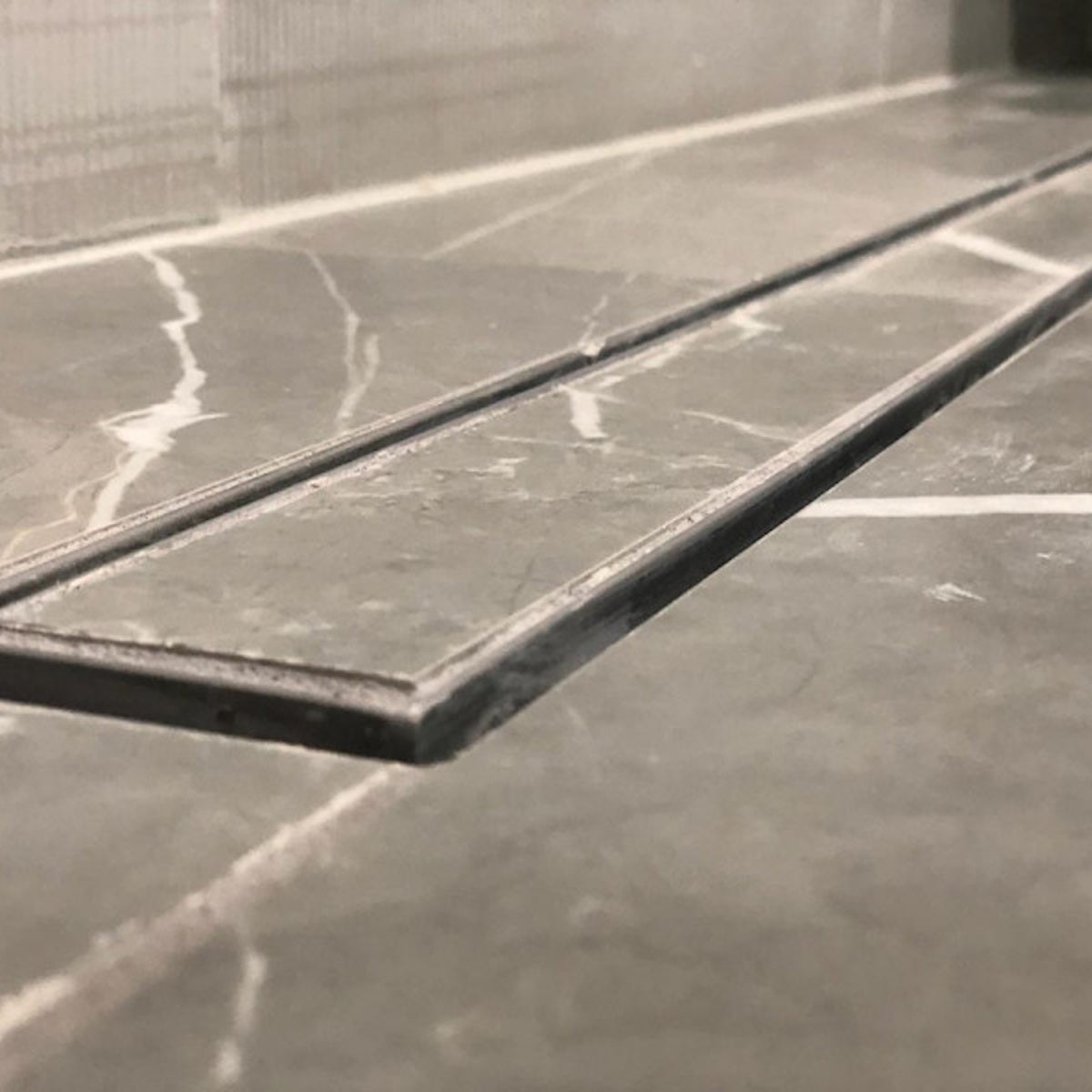

Ocean Wave, Traditional Square, Broken Lane, Tile Insert
Available Sizes
| Size | Net Dimensions | Overall Dimensions | Intake Area |
|---|---|---|---|
| 16" | 15 ¾" x 2 ¾" (400mm) | 17 ¼" x 4 ⅜" | 7.80 sq. in. |
| 24" | 23 ½" x 2 ¾" (600mm) | 25.2" x 4 ⅜" | 11.67 sq. in. |
| 30" | 30" x 2 ¾" (762mm) | 31.57" x 4 ⅜" | 14.82 sq. in. |
| 35" | 35 ⅜" x 2 ¾" (900mm) | 37.01" x 4 ⅜" | 17.48 sq. in. |
| 39" | 39 ⅜" x 2 ¾" (1000mm) | 40.95" x 4 ⅜" | 19.39 sq. in. |
| 47" | 47 ¼" x 2 ¾" (1200mm) | 48.82" x 4 ⅜" | 23.20 sq. in. |
| 59" | 59" x 2 ¾" (1500mm) | 60.63" x 4 ⅜" | 27.01 sq. in. |
Browse our full range of Side Outlet Linear Drains for Off-Center Plumbing.
Compatible optional accessories include ABS, PVC, or Cast Iron CPE membrane fitting, clad flexible coupling, and stainless steel hair trap. Find these and more in our drain accessories and adapters collection.
Have more questions about outlet position, sizing, or installation? See our Off-Center Shower Drain Plumbing FAQ.
Contact us for contractor pricing and quantity discounts.
