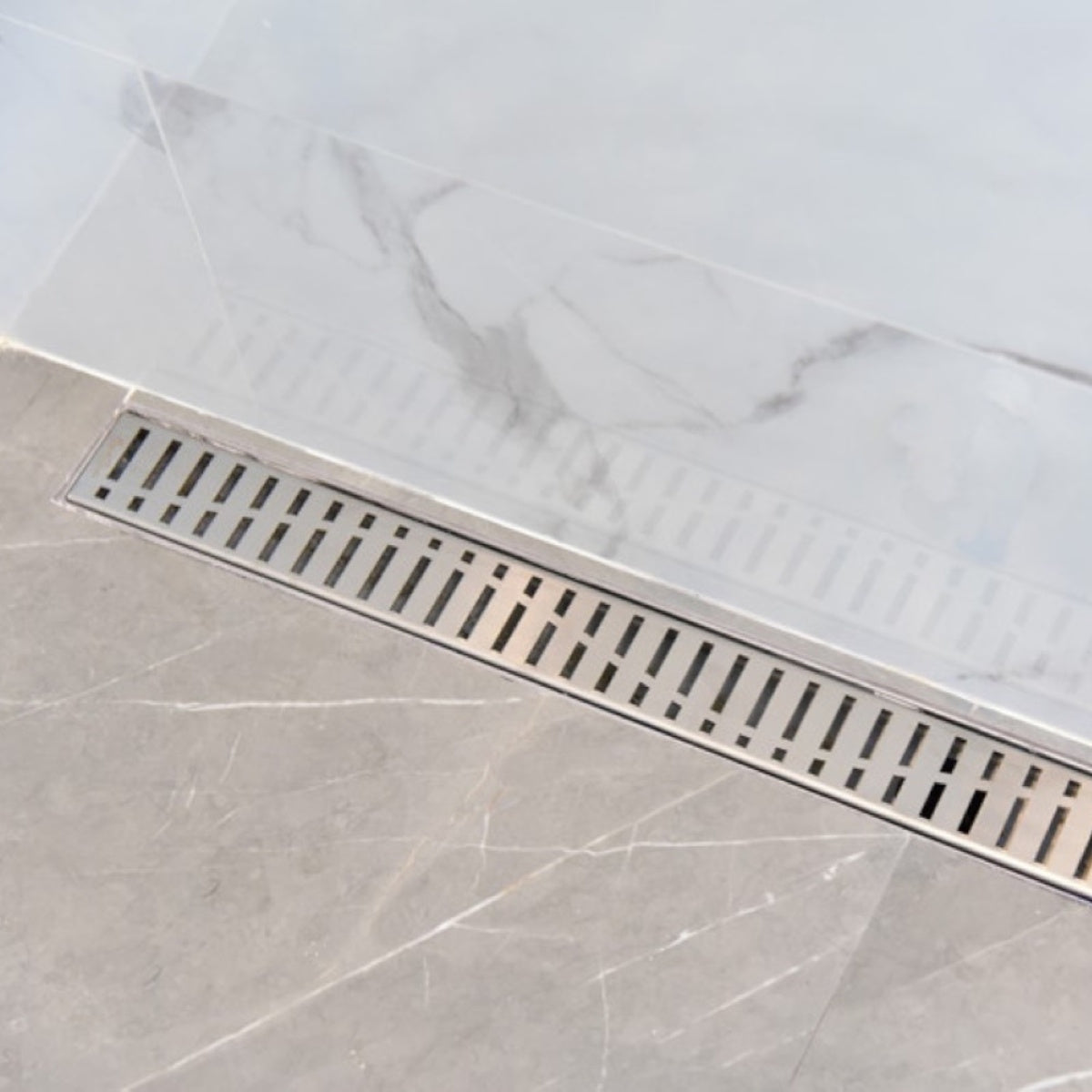

30 Inch Offset Outlet Linear Shower Drain with Hair Strainer by SereneDrains

$299.00 USD

Sale Sold out

Shipping calculated at checkout.

30 Inch Offset Linear Shower Drain with Hair Trap by SereneDrains

The joist is in the way. The slab's poured. The old drain's on the wrong side of the shower. A center-outlet drain can't fix any of these, an offset one can.

Three Reasons Installers Reach for an Offset Linear Drain

Joist in the way: When a floor joist sits directly beneath the drain location, building codes and structural requirements can limit where and how it may be cut, notched, or drilled. This offset outlet linear drain positions the connection 2.8" from the drain end instead of centered, so the waste line connects at a point clear of the joist, rather than needing to pass directly through where the joist sits.

Slab-on-grade construction: Showers built over 4 inches or more of poured concrete present a real challenge when the existing plumbing doesn't line up with a standard center outlet. Relocating drain plumbing in a concrete slab means breaking concrete, extensive demolition, and added labor cost. If your existing rough-in falls within the drain's offset range, you can connect directly to it, potentially avoiding slab-cutting or coring.

Existing off-center outlet: Older bathrooms, previous remodels, and existing rough-ins don't always have plumbing centered beneath the shower. This offset outlet linear drain is built to match plumbing that's already positioned off-center, so you can work with the existing waste pipe instead of relocating it, saving time, labor, and remodeling cost.

Specifications (30" Size)

Net size	30" x 2 ¾" (762mm)
Overall size	31.57" x 4 ⅜"
Intake area	14.82 sq. in.
Offset outlet	2.8" from drain end
Channel width	2 ¾" (70mm), pre-sloped
Material	16-gauge 304 stainless steel, electro-polished, fully welded, leak-tested, corrosion-resistant
Finish	Brushed Stainless Steel
Flow rate	6.3 GPM entrance / 9.5 GPM wall-adjacent
Tile compatibility	Up to 10mm (14mm lip), sized to ½", 1", 2", 4" modules
Waterproofing	Hot mop, membrane, sheet, vinyl, all standard methods
Connection	Standard 2" flange
Maintenance	No special cleaning required
Availability	In stock, ships same day

Included

Stainless channel and grate, rubber gasket, puller key, waterproofing membrane, hair/debris strainer, installation instructions.

Grate Styles

Ocean Wave, Traditional Square, Broken Lane, Tile Insert

Available Sizes

Size	Net Dimensions	Overall Dimensions	Intake Area
16"	15 ¾" x 2 ¾" (400mm)	17 ¼" x 4 ⅜"	7.80 sq. in.
24"	23 ½" x 2 ¾" (600mm)	25.2" x 4 ⅜"	11.67 sq. in.
30"	30" x 2 ¾" (762mm)	31.57" x 4 ⅜"	14.82 sq. in.
35"	35 ⅜" x 2 ¾" (900mm)	37.01" x 4 ⅜"	17.48 sq. in.
39"	39 ⅜" x 2 ¾" (1000mm)	40.95" x 4 ⅜"	19.39 sq. in.
47"	47 ¼" x 2 ¾" (1200mm)	48.82" x 4 ⅜"	23.20 sq. in.
59"	59" x 2 ¾" (1500mm)	60.63" x 4 ⅜"	27.01 sq. in.

Browse our full range of Side Outlet Linear Drains for Off-Center Plumbing.

Compatible optional accessories include ABS, PVC, or Cast Iron CPE membrane fitting, clad flexible coupling, and stainless steel hair trap. Find these and more in our drain accessories and adapters collection.

Have more questions about outlet position, sizing, or installation? See our Off-Center Shower Drain Plumbing FAQ.
