Large 90 Inch Tile Insert Linear Shower Drain, Brushed Nickel by SereneDrains

Net Size 90" x 2 3/4" | Overall Size 91.5" x 4 3/8" (2286mm) | Intake sq. in: 31.67

This large tile insert linear shower drain offers both high-end design and reliable performance for modern bathrooms. At 90 inches, it’s one of the longest tile-in drains available—perfect for expansive, open-concept or barrier-free showers.

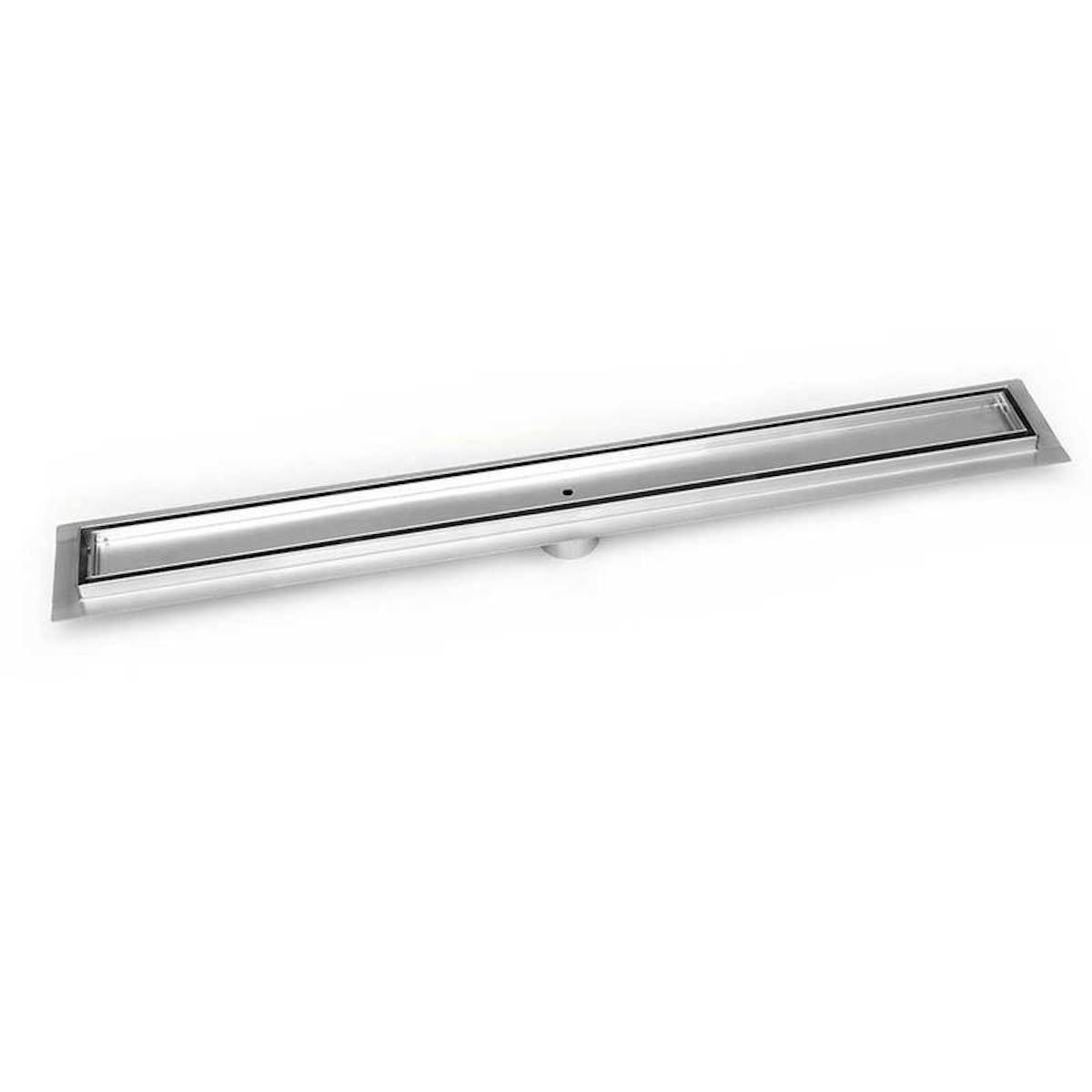

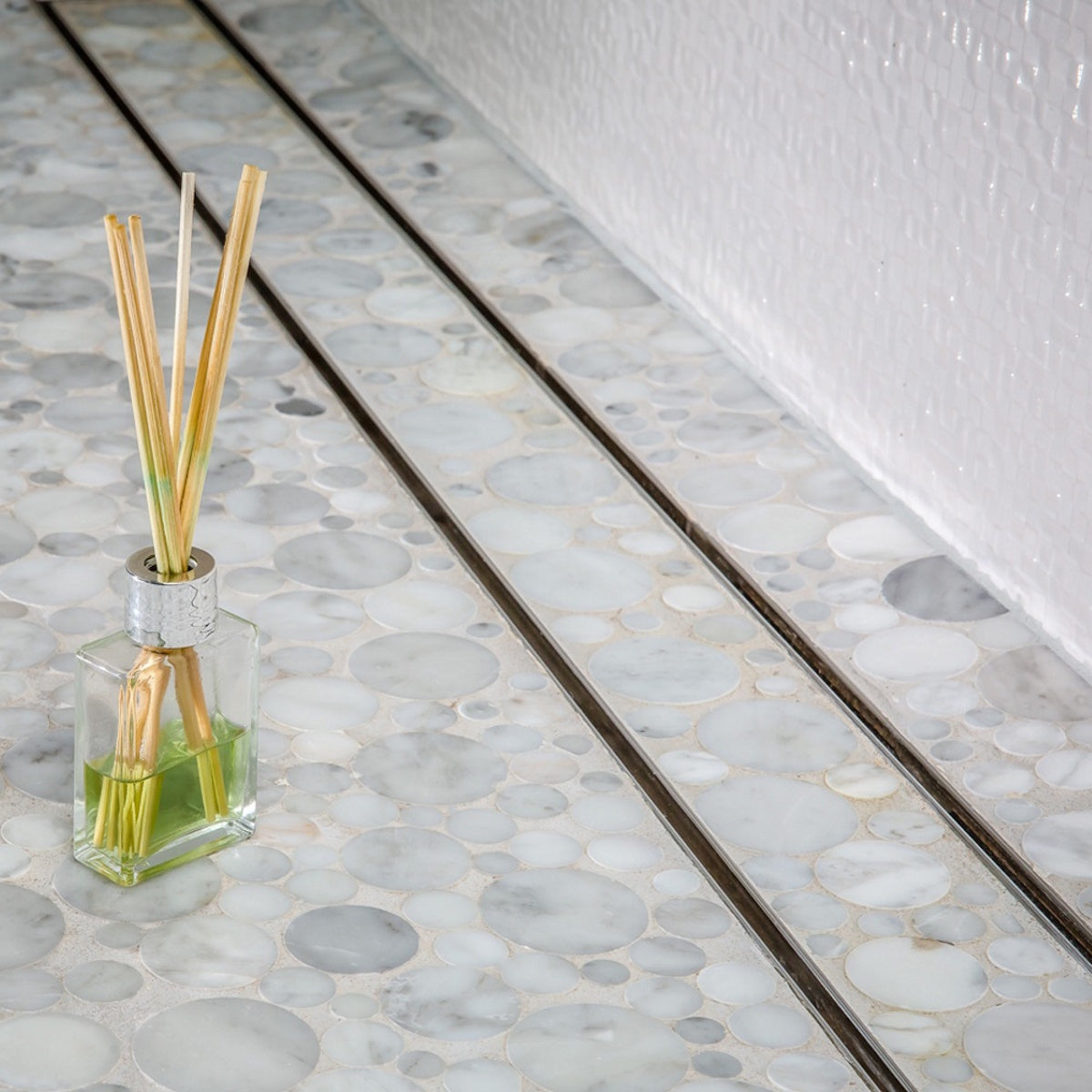

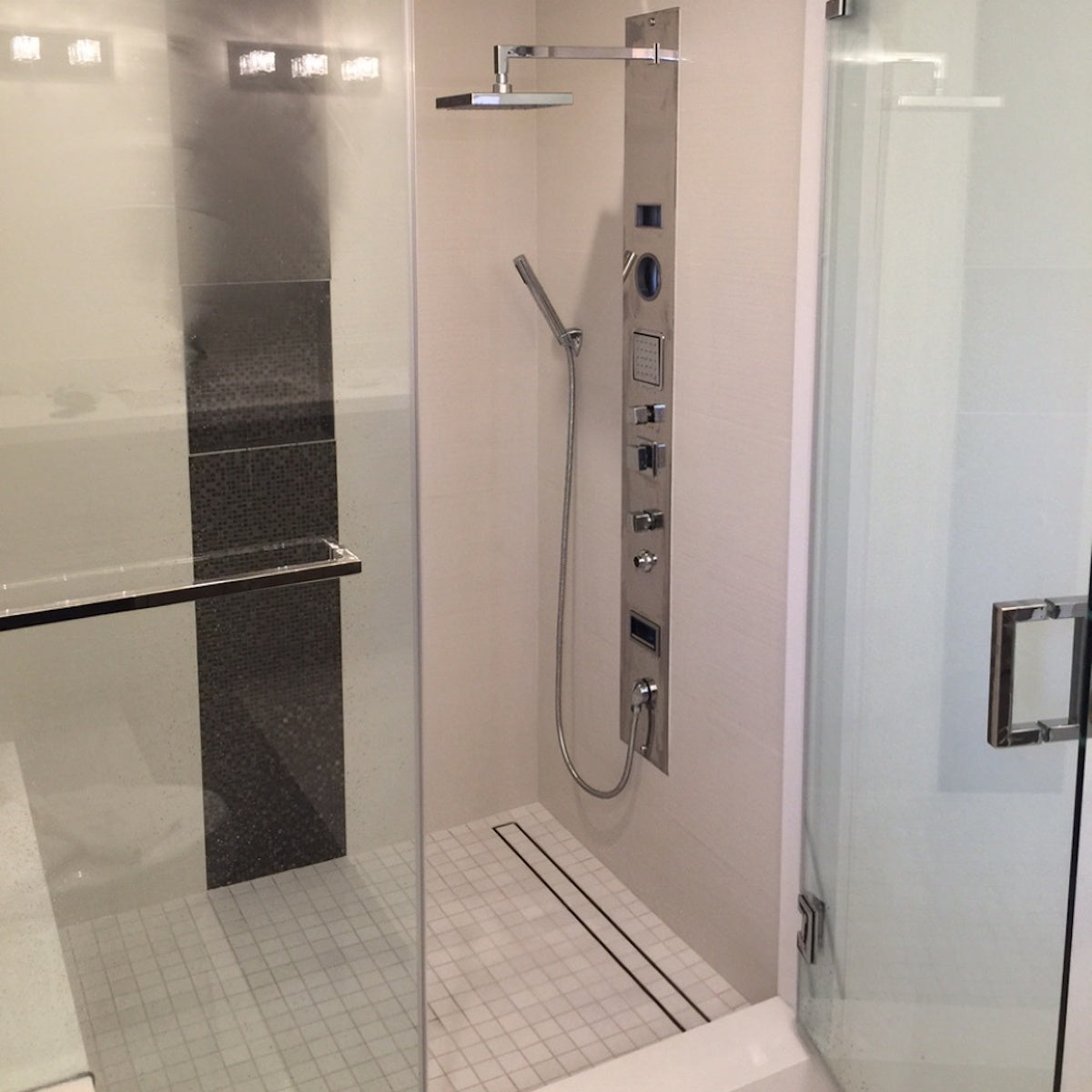

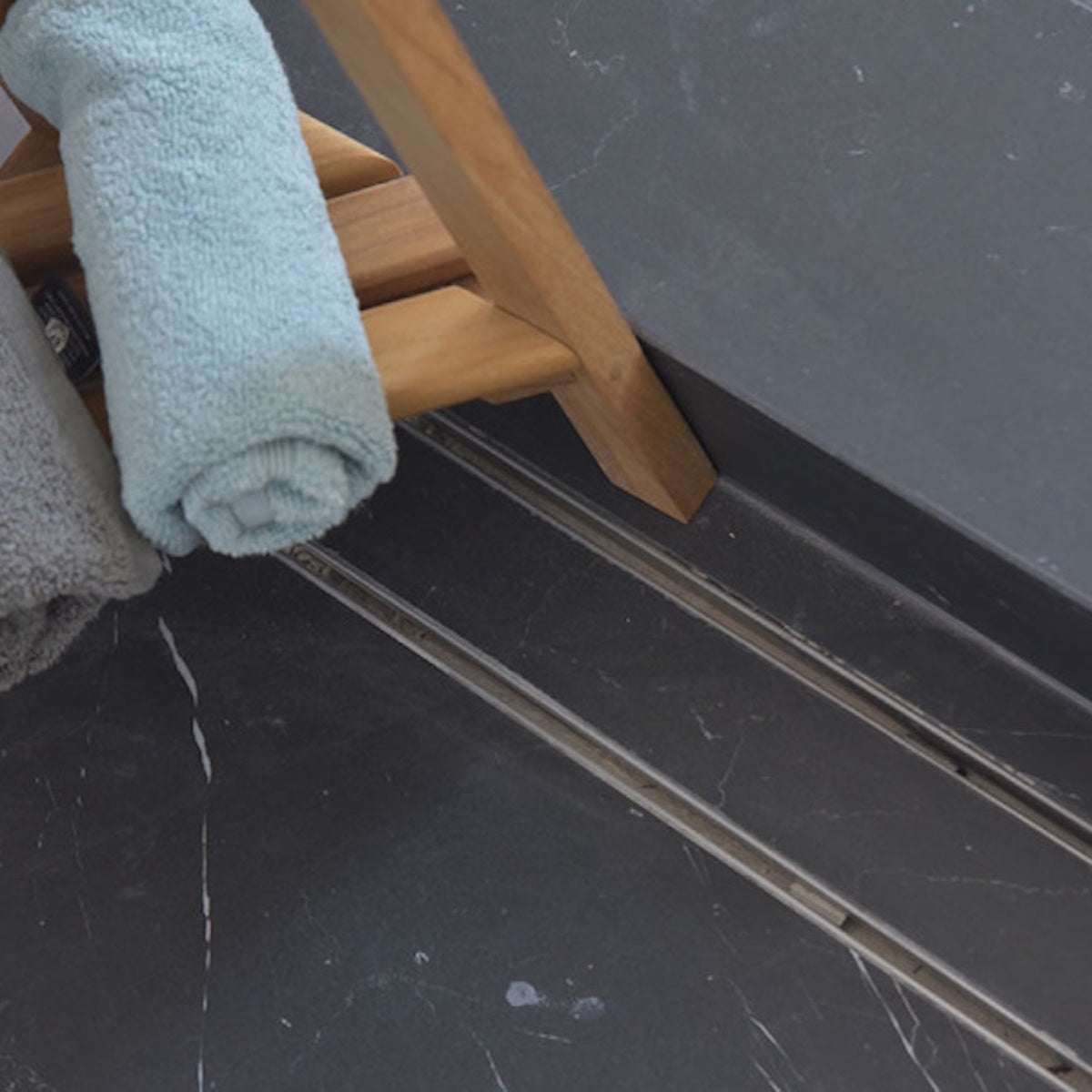

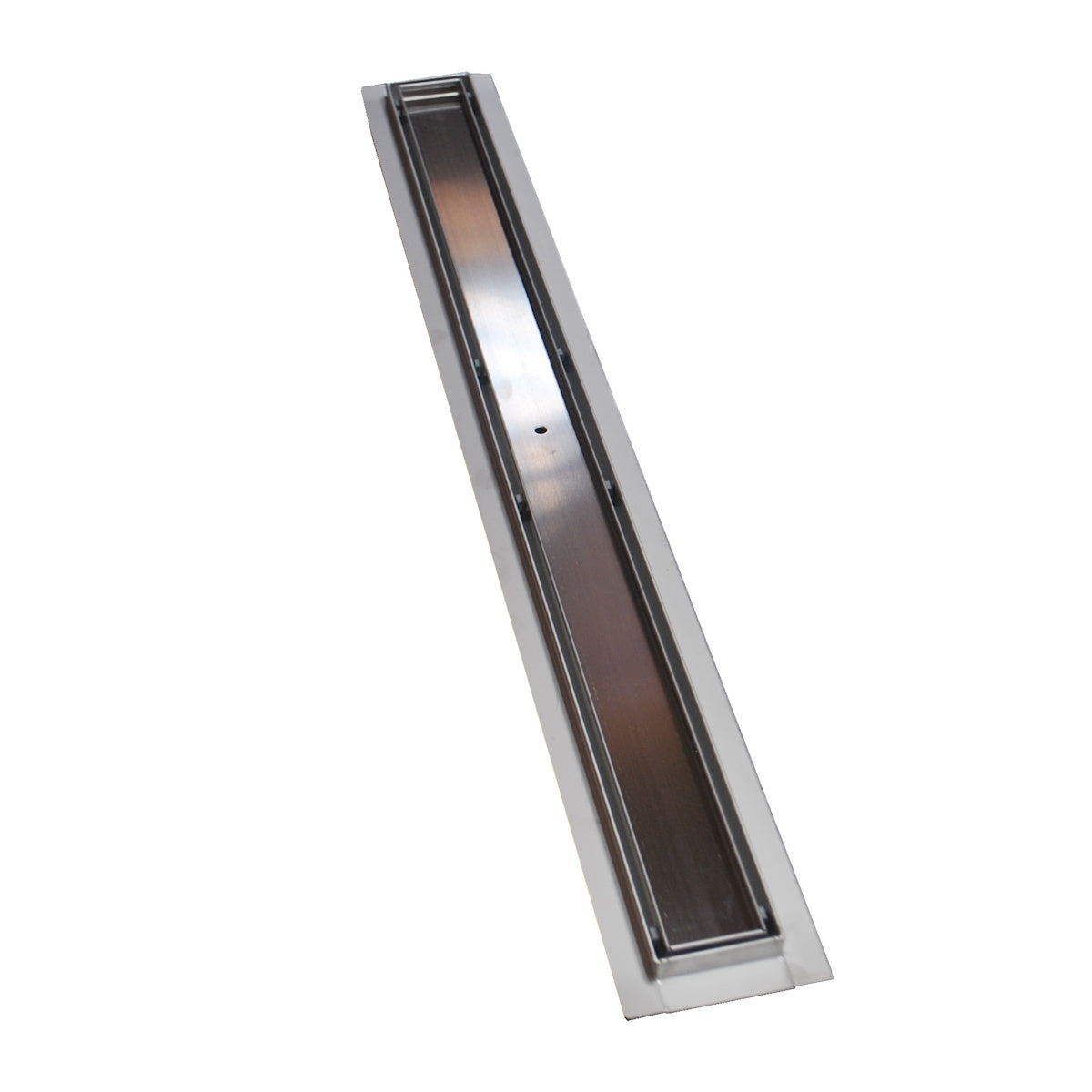

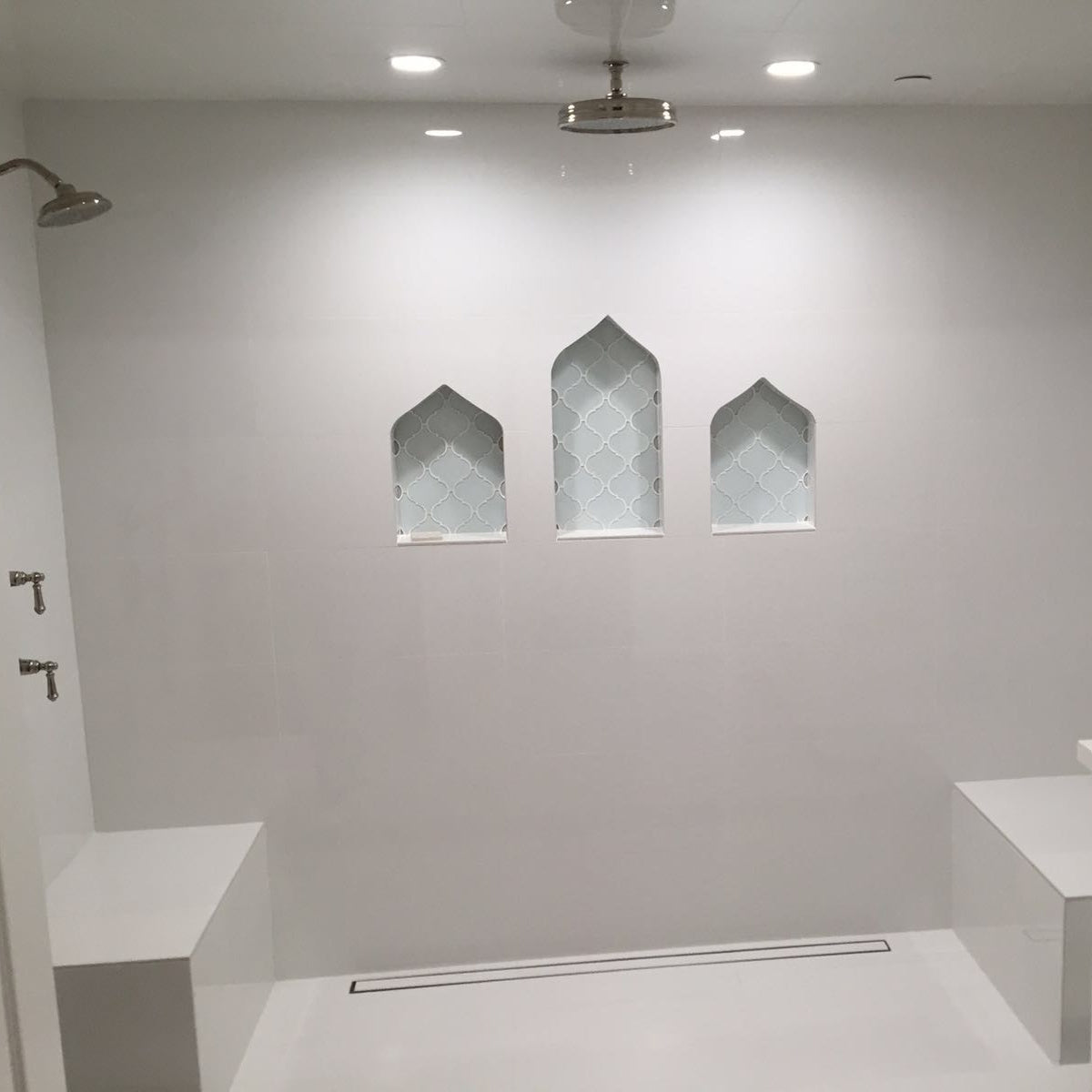

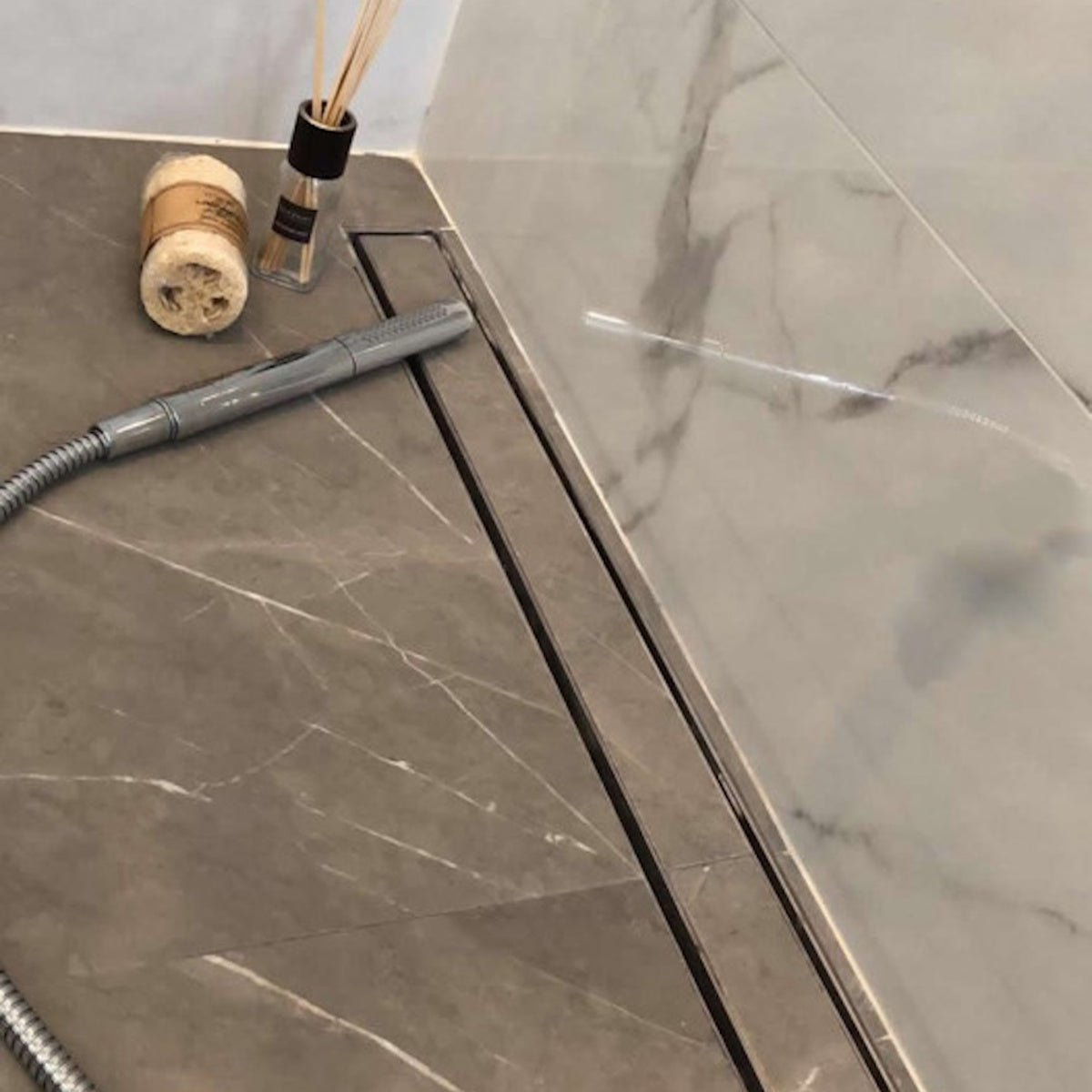

Designed as a tile-in linear drain, it allows your shower floor tile to be inserted directly into the grate, creating a virtually invisible shower drain that blends into the floor for a sleek, minimalist look. The concealed linear drain design eliminates visual clutter and highlights your tile work, making it ideal for luxury bathrooms, spas, and contemporary wet room installations.

This extra-long linear shower drain is crafted from durable 304 stainless steel with a brushed nickel finish and a pre-sloped channel for efficient drainage. It's ADA-compliant and well-suited for wheelchair-accessible, curbless shower designs.

Whether you’re looking for a 90 inch tile insert drain for a new build or a stylish upgrade to an existing space, this concealed drain offers seamless integration, easy maintenance, and high flow capacity—everything you need for a clean, elegant, and high-functioning shower space.

Drain Includes:
100% stainless steel channel body and grate, puller key, waterproofing membrane sheet around the drain flange (not required but included), and installation instructions.

Features:
Also available in: 16", 24", 30", 35", 39", 47", 59", 72", and 90"
Stainless steel brushed nickel finish
Superior quality laser cut electropolish finish
Bodies are fully welded and leak tested prior to dispatch
2 inch diameter central vertical outlet

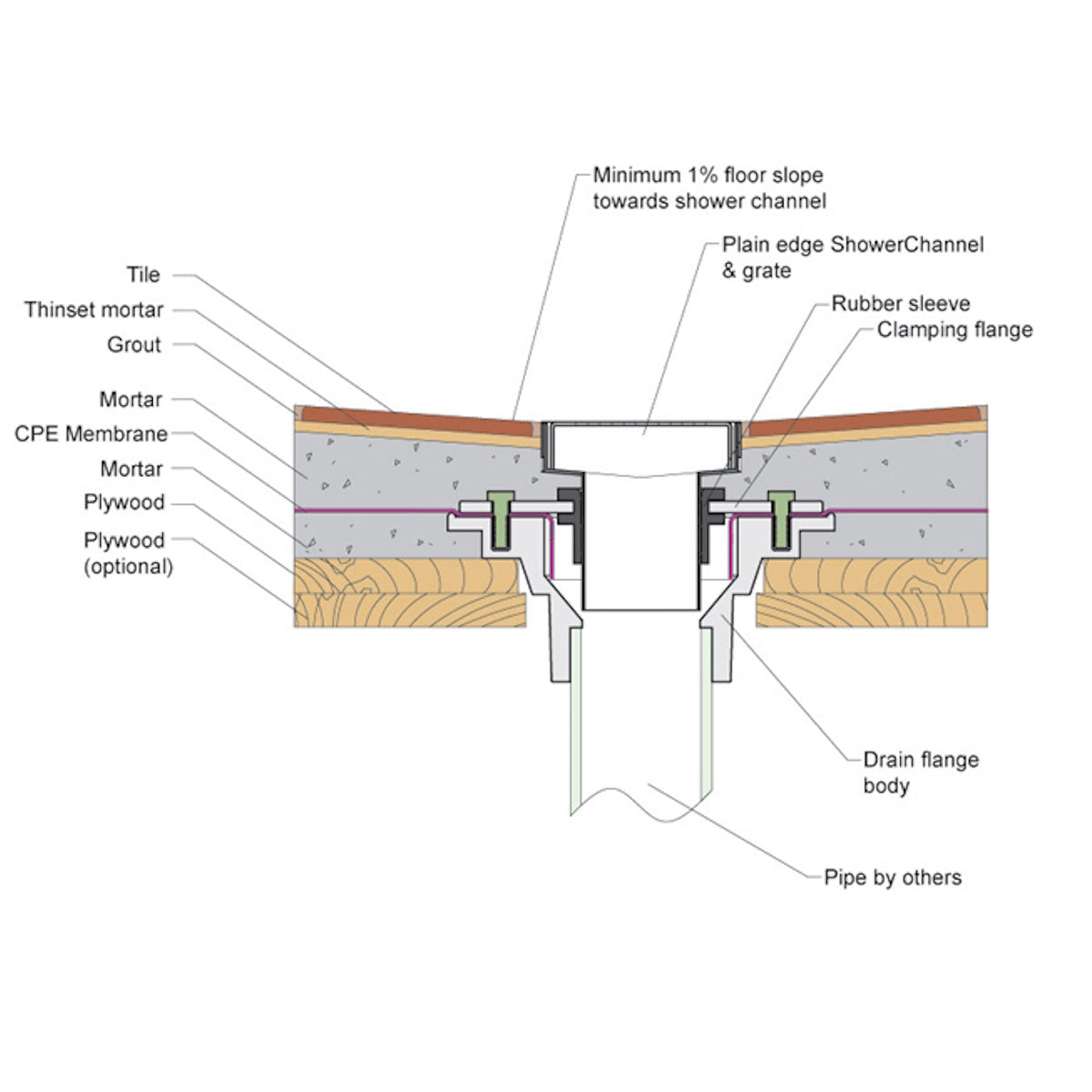

Designed to be installed into any 2" shower drain flange
Compatible with tiles up to 10mm depth (14mm lip)
Sized to match standard 1/2", 1", 2", and 4" tile without cutting
Pre-slope channel, channel width: 2 3/4" (70 mm)
Drain grate is 16 gauge 304 stainless steel
Flow rate: 6.3 GPM at entrance (0.4 l/s); 9.5 GPM against the wall (0.6 l/s)
Flange body edge works with all waterproofing types: hot mop, painted or liquid membranes, sheet membrane, vinyl, etc.

Accessories Available:

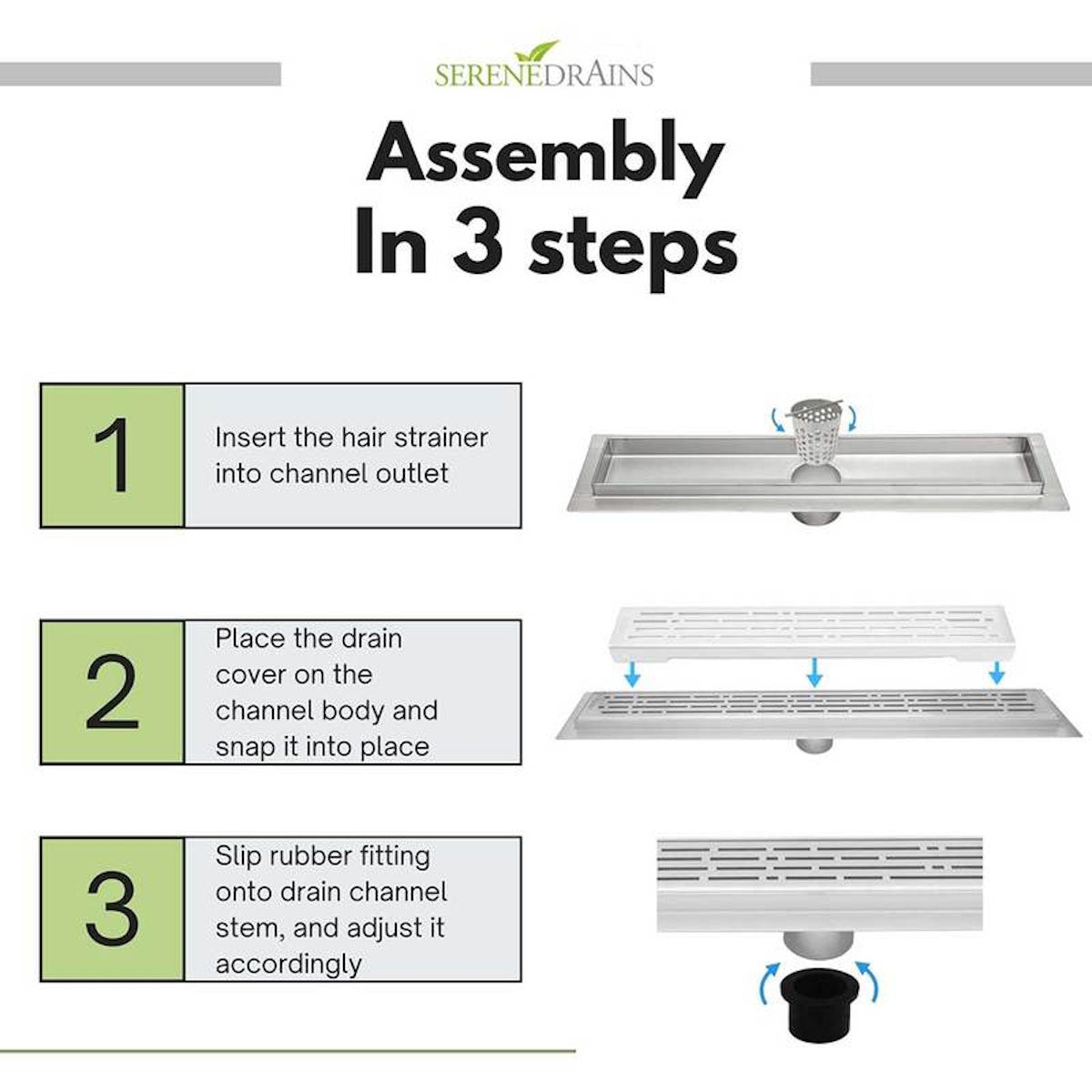

Plumbing connectors (ABS/PVC flange) and debris strainer (see Drain Accessories)
