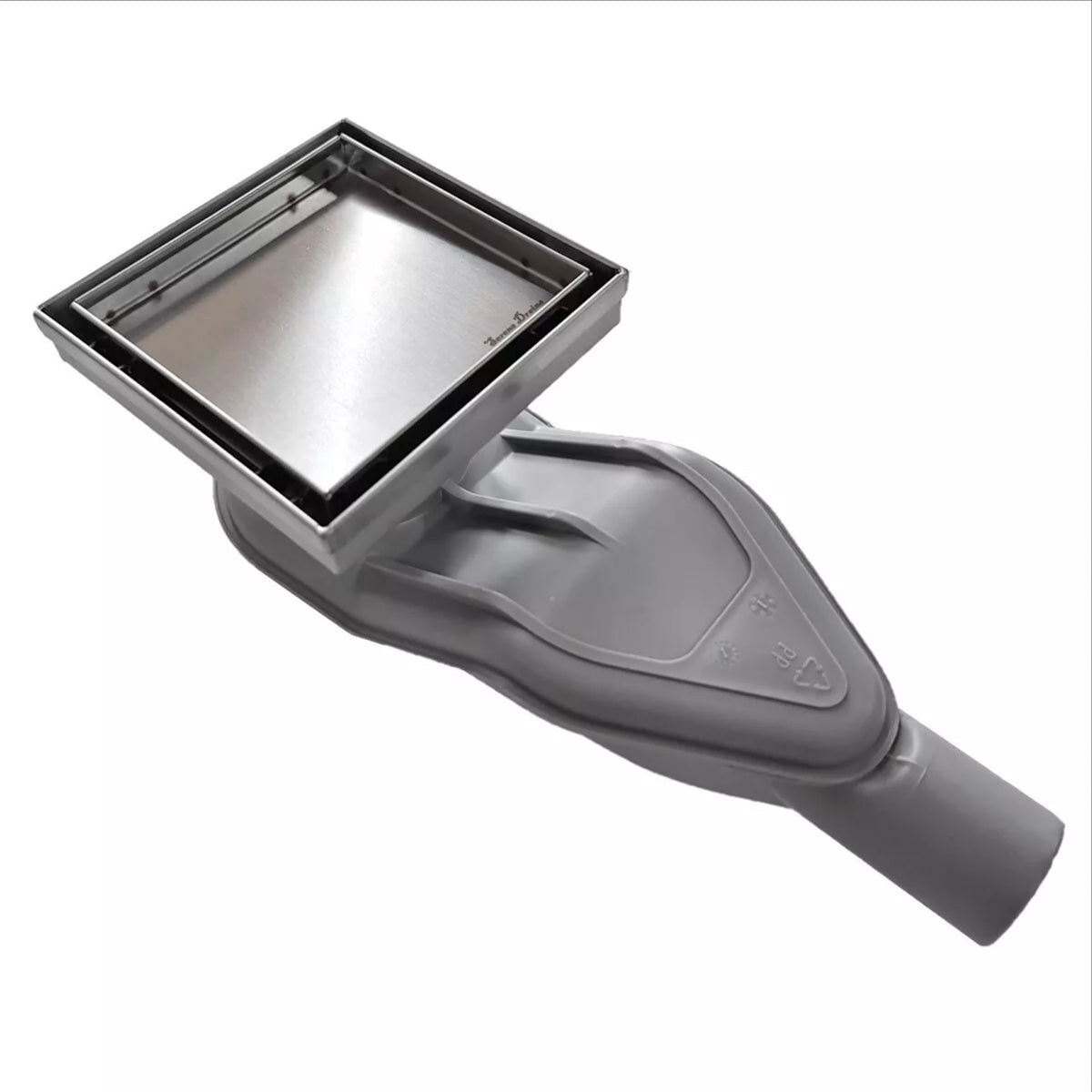

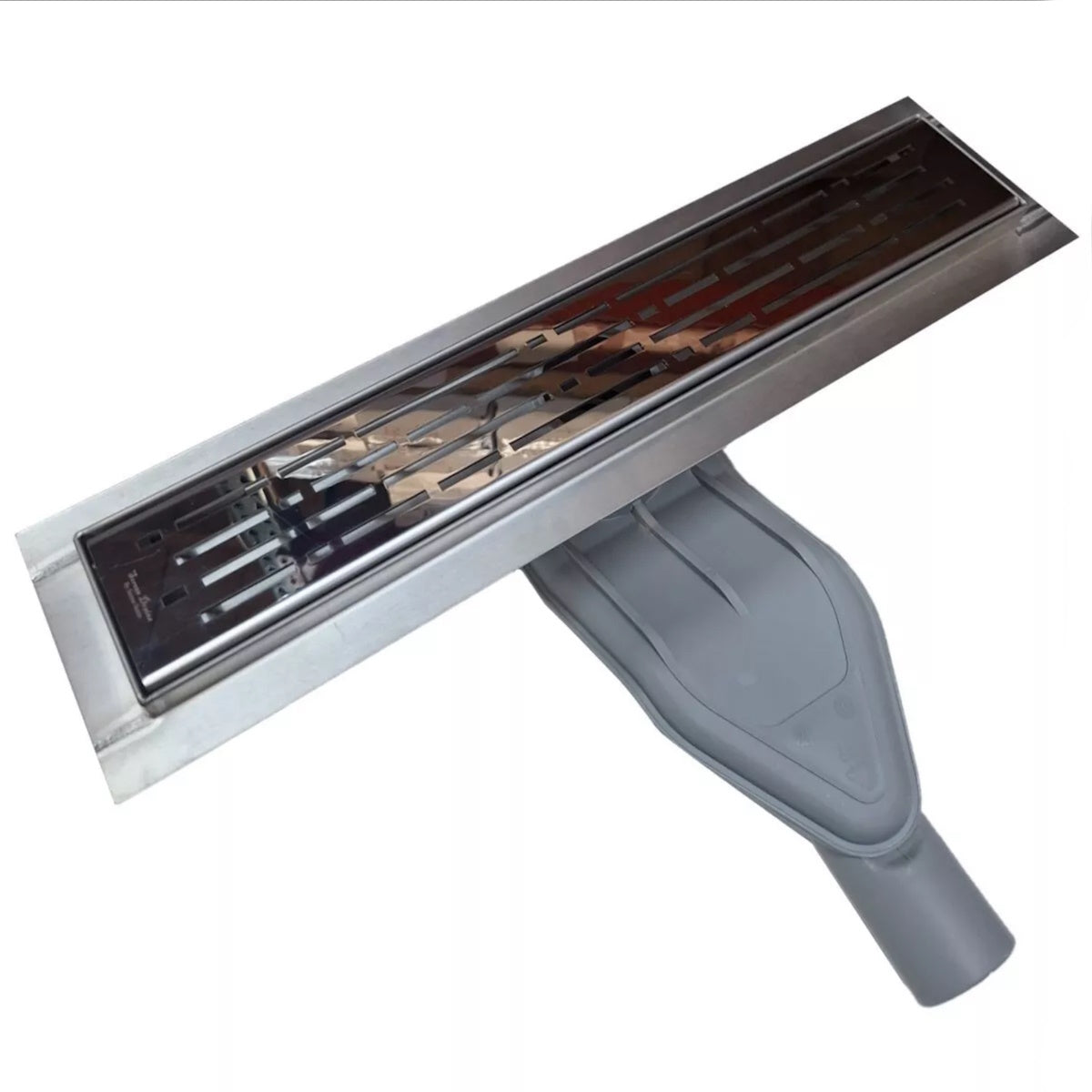

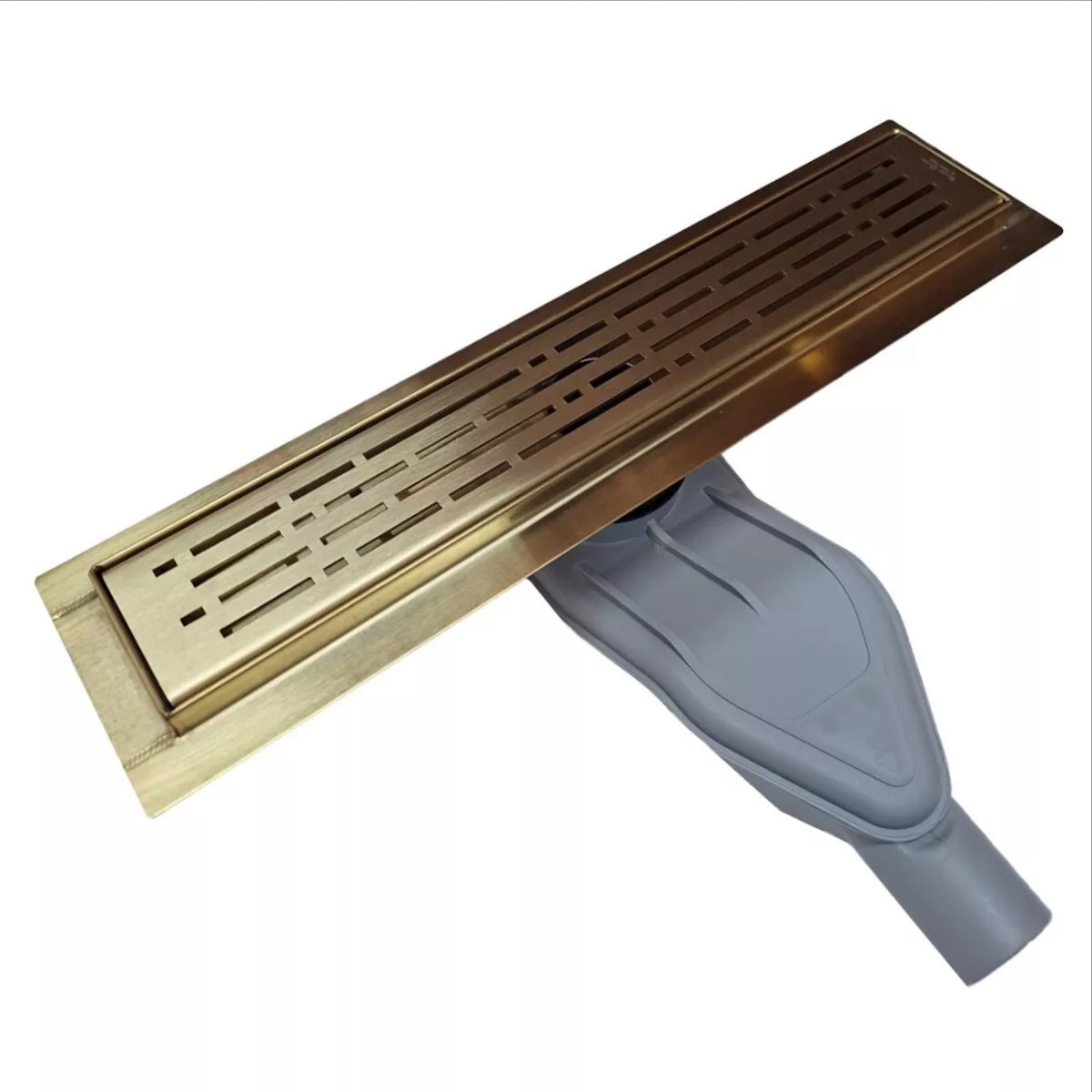

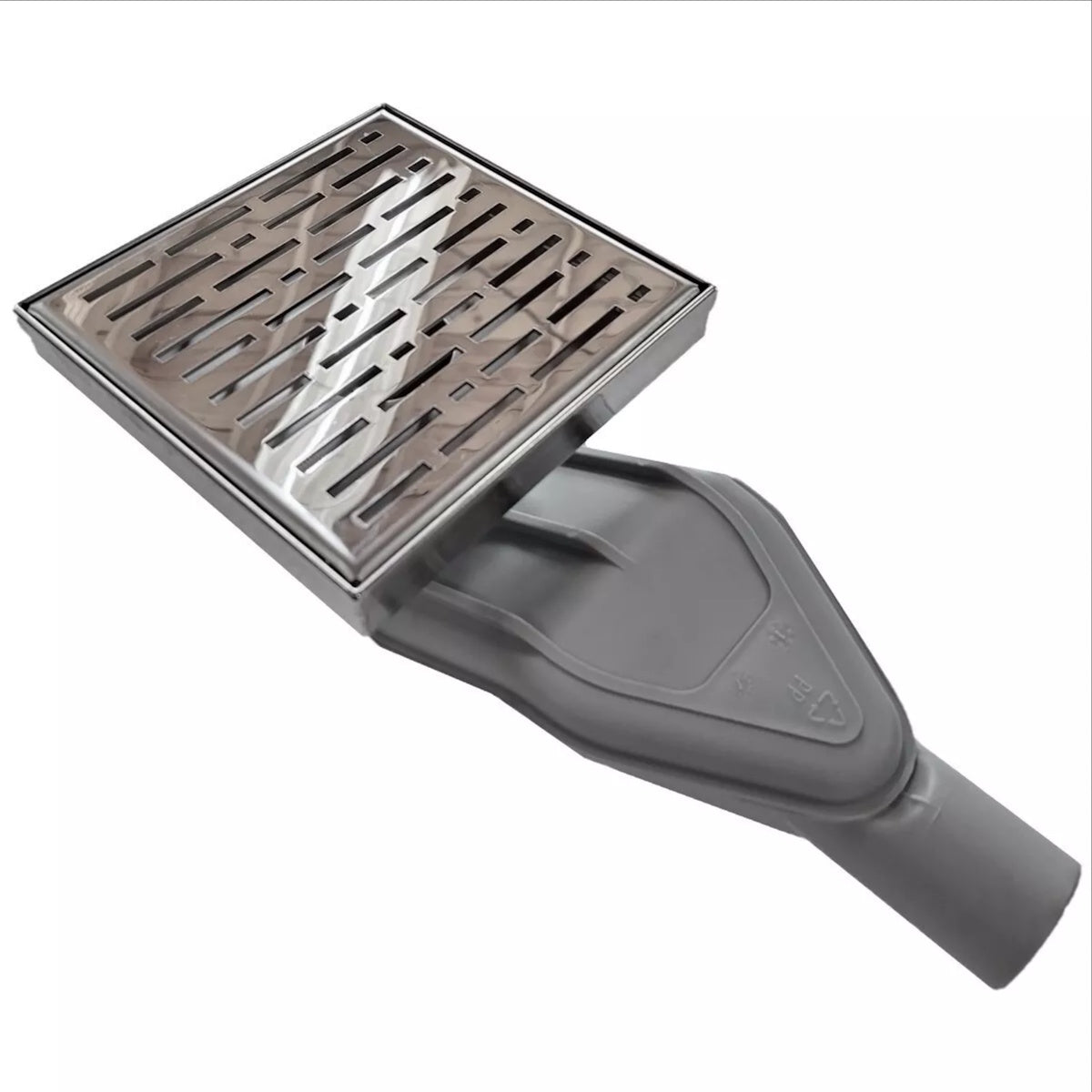

SereneDrains Horizontal Side Discharge Outlet Converter for Linear & Square Shower Drains

A Horizontal Side Discharge Outlet Converter is a specialized plumbing accessory designed to pivot the drainage flow from vertical (straight down) to horizontal (sideways). This simple but powerful tool allows standard linear and square drains to function in tight spaces where a traditional deep vertical trap isn't possible.

Convert any vertical drain to a horizontal side discharge shower drain. Make any regular shower drain function as a side outlet shower drain.

Product Compatibility & Included Components

This amazing invention will fit all our SereneDrains linear shower drains and square drains.

Includes:

• Base discharge
• Rubber fitting
• Choose extension fitting if needed (to increase drain connection height when necessary)
• Our Horizontal Side Discharge Outlet Converter is now available in complete, all-in-one shower drain kits.

Main Construction Situations Requiring a Horizontal Converter

In modern shower construction, you will typically need this solution in three primary scenarios:

Low Profile / Shallow Floor Joists:
When the space between the bathroom floor and the ceiling below is too shallow to accommodate a standard 2-inch vertical P-trap.

Concrete Slab Installations:
In high-rise condos or basements where "coring" (drilling) through a concrete slab is either prohibited, too expensive, or structurally impossible. The converter allows the waste pipe to run along the top of the slab within a raised mortar bed.

Renovations with Offset Plumbing:
When you want to move the shower drain to a new location (like the wall) but the existing waste pipe is fixed a few inches away. The converter bridges that horizontal gap without requiring you to tear up the entire subfloor.

Challenging Installations with No Access Below the Floor:
In scenarios such as slab foundations or second-story installations, the horizontal drain outlet makes it feasible to undertake a project that would otherwise be impossible. This flexibility is particularly valuable for retrofitting older homes or buildings where access to plumbing is limited.

Key Benefits for Your Project

Connection to Existing Plumbing:
The horizontal side outlet allows the new drain to connect to an existing drainpipe and P-trap that are not directly beneath the new drain location. This can minimize the need for extensive demolition and reduce both the mess and cost of the renovation project.

Barrier-Free / Curbless Entry:
It is the "secret weapon" for ADA-compliant showers. By keeping the plumbing horizontal and slim, you can keep the entire floor at a lower height to create a seamless walk-in entry.

Single-Direction Slope / Better Slope Management:
Unlike traditional center drains that require a "bowl" shape (4-way slope), horizontal discharge linear drains allow the floor to be pitched in just one direction. This is essential for using large-format tiles and makes the shower floor easier to design and construct.

Increased Design Flexibility:
They allow for more flexibility in shower design, enabling the use of large-format tiles or even barrier-free shower entries, which can be particularly useful for creating accessible bathrooms.

Enhanced Accessibility:
These drains are ideal for walk-in showers and can help create a safer, barrier-free environment for individuals with mobility issues.

Enhanced Aesthetic Appeal:
Horizontal side outlet shower drains provide a sleek, modern look, as they can be integrated seamlessly into the floor, often along one side or wall of the shower.

Improved Water Drainage:
These drains can handle a larger volume of water more efficiently, which helps prevent water from pooling in the shower.

Reduced Clogging:
Due to their design, horizontal side outlet drains can reduce the likelihood of clogs and are often easier to clear if they do occur.

Easy Maintenance:
Horizontal drains typically have removable covers, making them easier to clean and maintain compared to traditional center drains.

Cost Savings:
It significantly reduces demolition costs by avoiding the relocation of main vertical stacks or the cutting of floor joists.

Universal Compatibility: One Solution for Many Drain Brands

This innovative solution by SereneDrains is engineered to work seamlessly with our full line of Linear and Square drains, while offering broad versatility across the plumbing industry. Using an industry-standard 2-inch (50mm) non-threaded outlet and a high-tolerance friction-fit rubber gasket, it can serve as a practical solution for many shower drain installations requiring horizontal discharge.

In addition to SereneDrains products, this converter may be compatible with many 2-inch drain systems from popular manufacturers, including Schluter-KERDI-LINE, Infinity Drain, Oatey / QuickDrain, Laticrete, QM Drain, LUXE Linear Drains, Dawn USA, and other widely used drain brands. Compatibility may vary depending on drain body design, outlet configuration, and local plumbing requirements.

For best results, consult with a licensed contractor or professional plumber to confirm proper fit, installation method, and local code compliance.
