Vertical-to-Horizontal Linear Shower Drain Kit | SereneDrains
The Ultimate Solution for Slab Foundations & Low-Profile Remodels

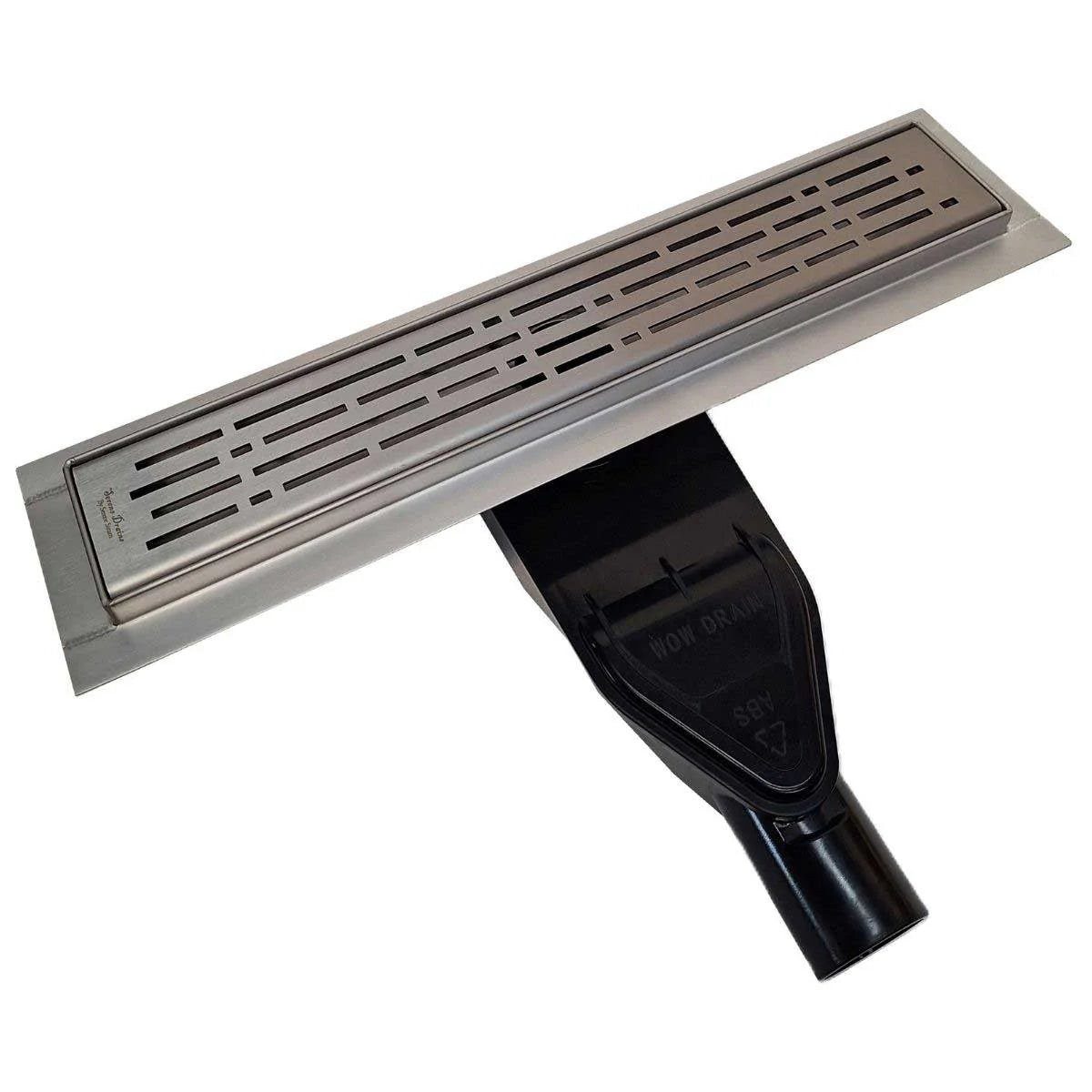

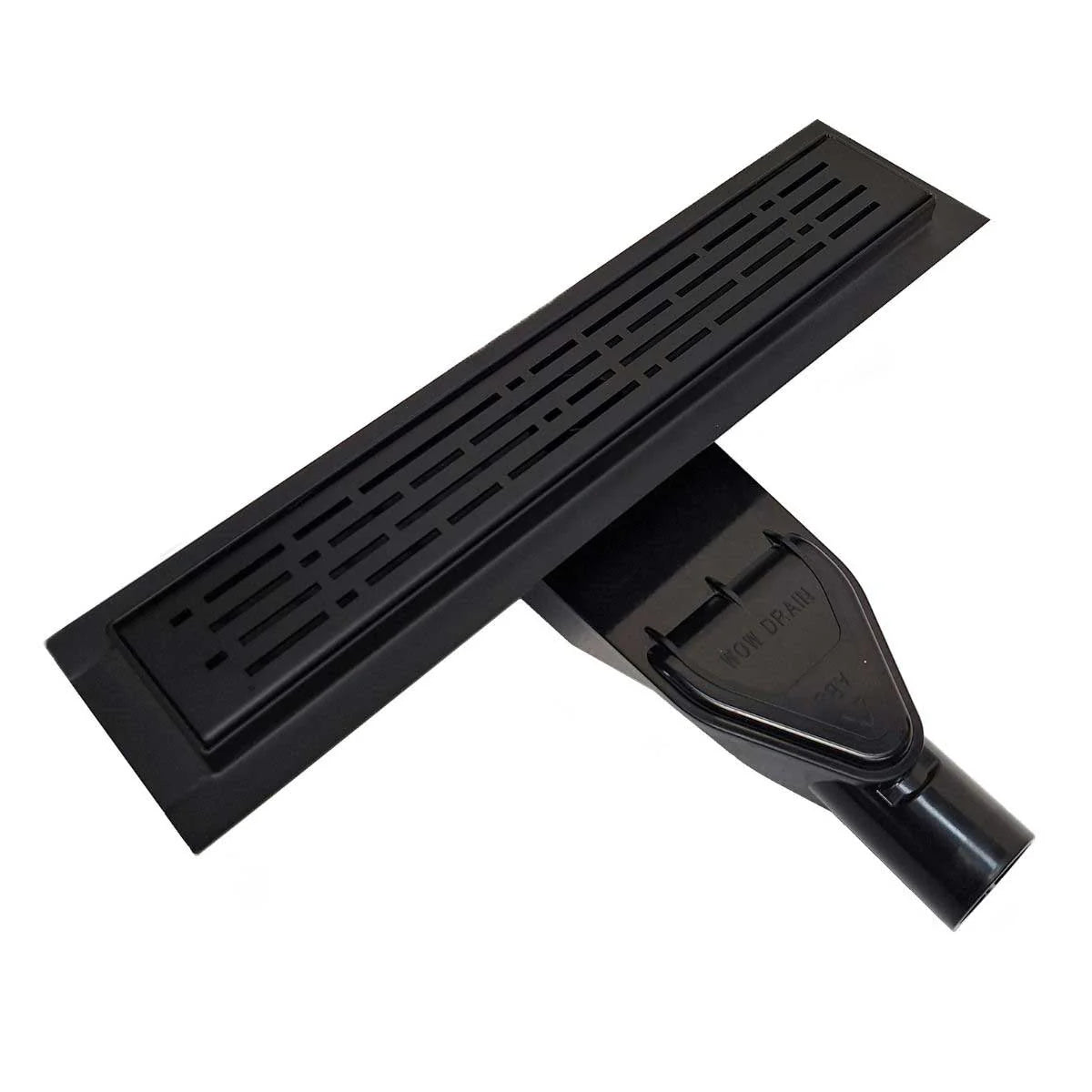

The SereneDrains Linear Shower Drain Kit with ABS Side Discharge Adapter is a professional-grade solution for installations where a traditional vertical outlet isn't possible. This kit allows you to transition a vertical drain outlet to a horizontal discharge, making it ideal for concrete slabs, second-story renovations, and barrier-free modern showers.
✓ In Stock & Ready to Ship | Bonus: Free Hair Trap Included
Key Technical Specifications
Feature
Details
Material
16-Gauge 304 Stainless Steel
Grate Design
"Broken Lane" Laser-Cut Pattern
Adapter Type
Side Discharge (Converts 2" Vertical to Horizontal)
Body Build
Fully Welded & Leak Tested
Flow Rate
6.3 GPM (Entrance) to 9.5 GPM (Against Wall)
Waterproofing
Flange compatible with Liquid, Sheet, and Hot Mop
Product Highlights
Slab & Remodel Friendly: The included ABS reducer connects the vertical drain body to standard horizontal PVC base pipes and P-traps, eliminating the need for deep subfloor demolition.
Superior Construction: Crafted from electro-polished 304 stainless steel for maximum corrosion resistance and a luxury aesthetic.
Optimized Drainage: Features a pre-sloped channel (2 ¾" width) to ensure efficient water flow and prevent pooling.
Universal Compatibility: The flange body edge accommodates all standard waterproofing membranes. Designed to fit standard tiles up to 10mm depth without complex cutting.
Available Dimensions & Intake Capacity
Length
Intake Area
16" (400 mm)
10.44 sq. in.

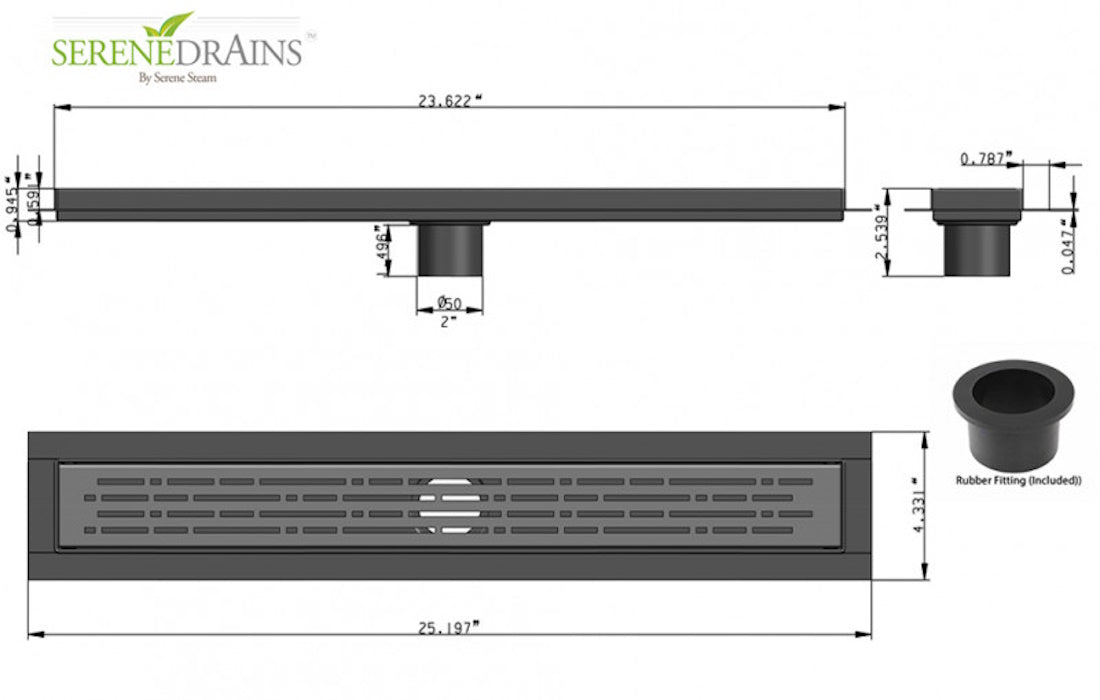

24" (600 mm)
15.66 sq. in.
30" (762 mm)
19.94 sq. in.
35" (900 mm)
23.56 sq. in.

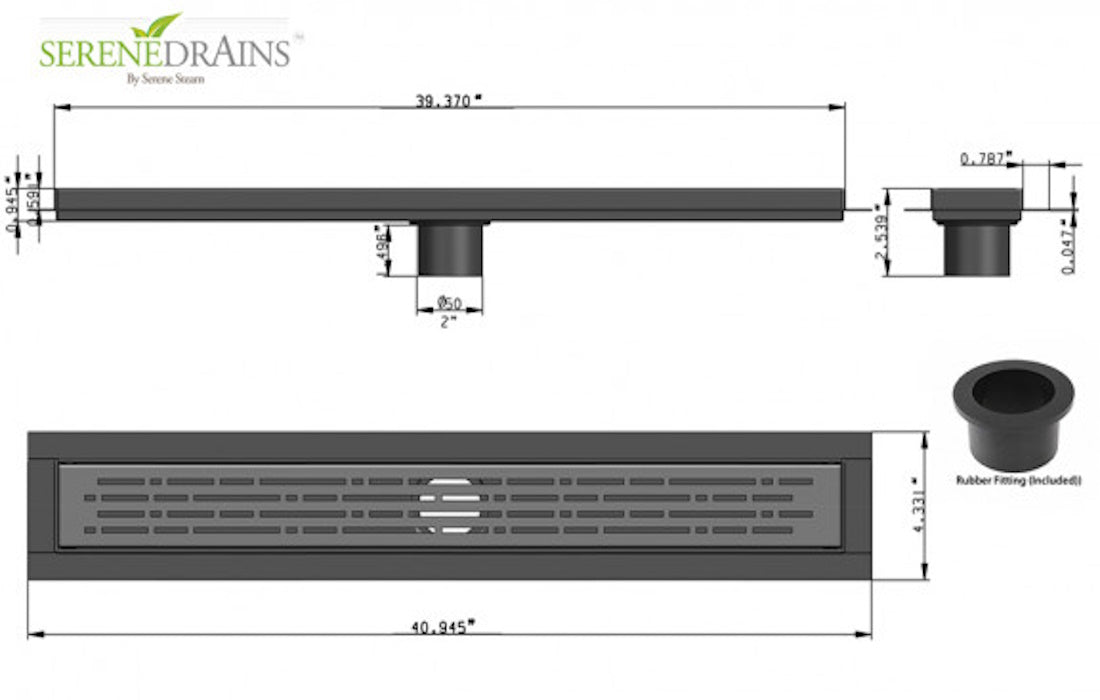

39" (1000 mm)
26.47 sq. in.
47" (1200 mm)
27.72 sq. in.

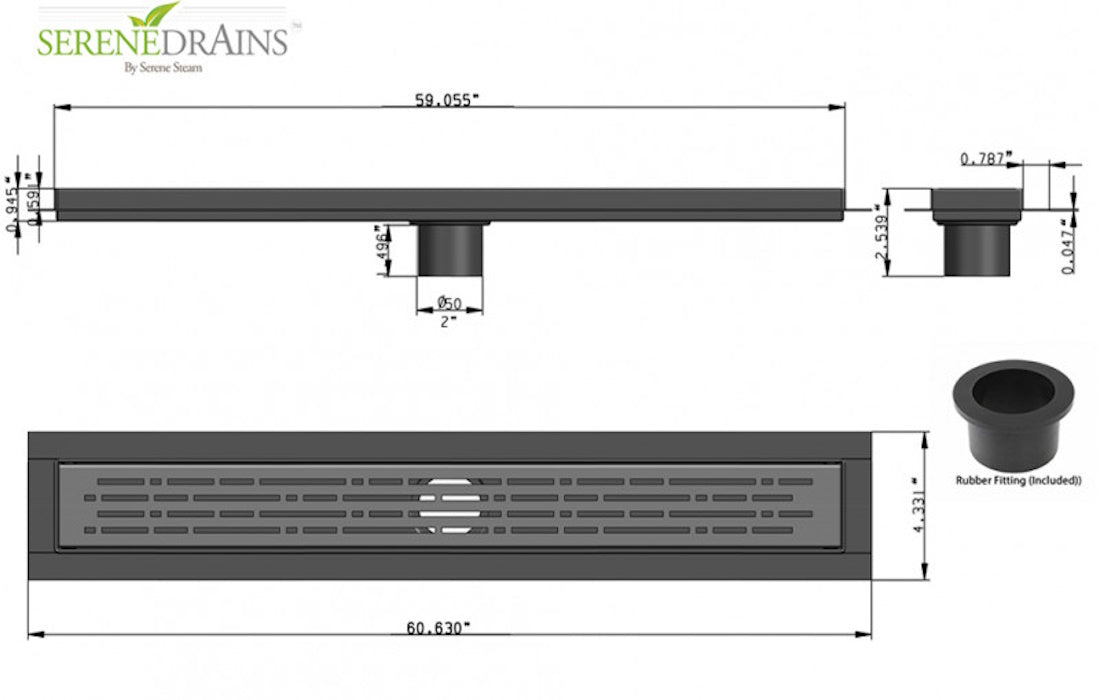

59" (1500 mm)
39.10 sq. in.

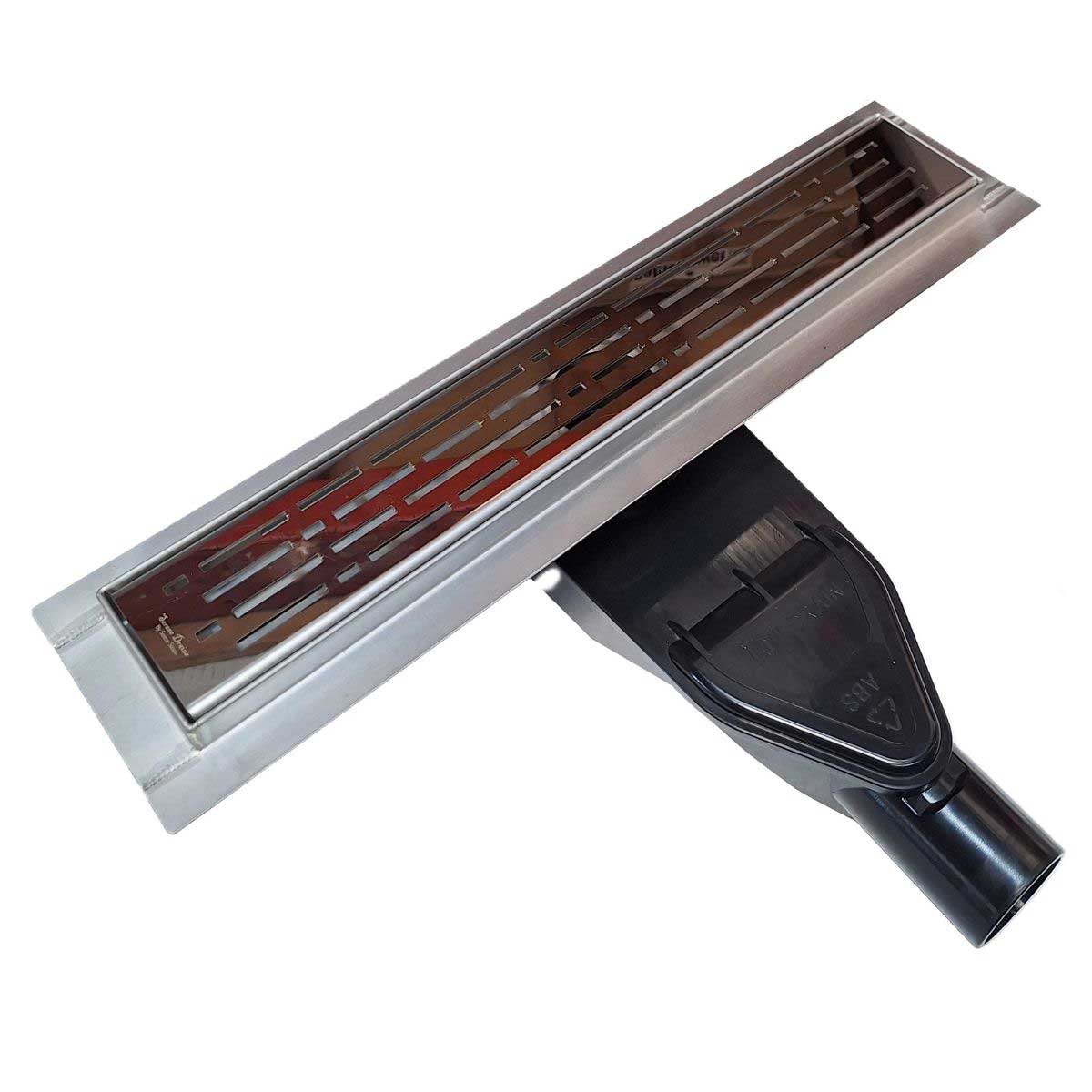

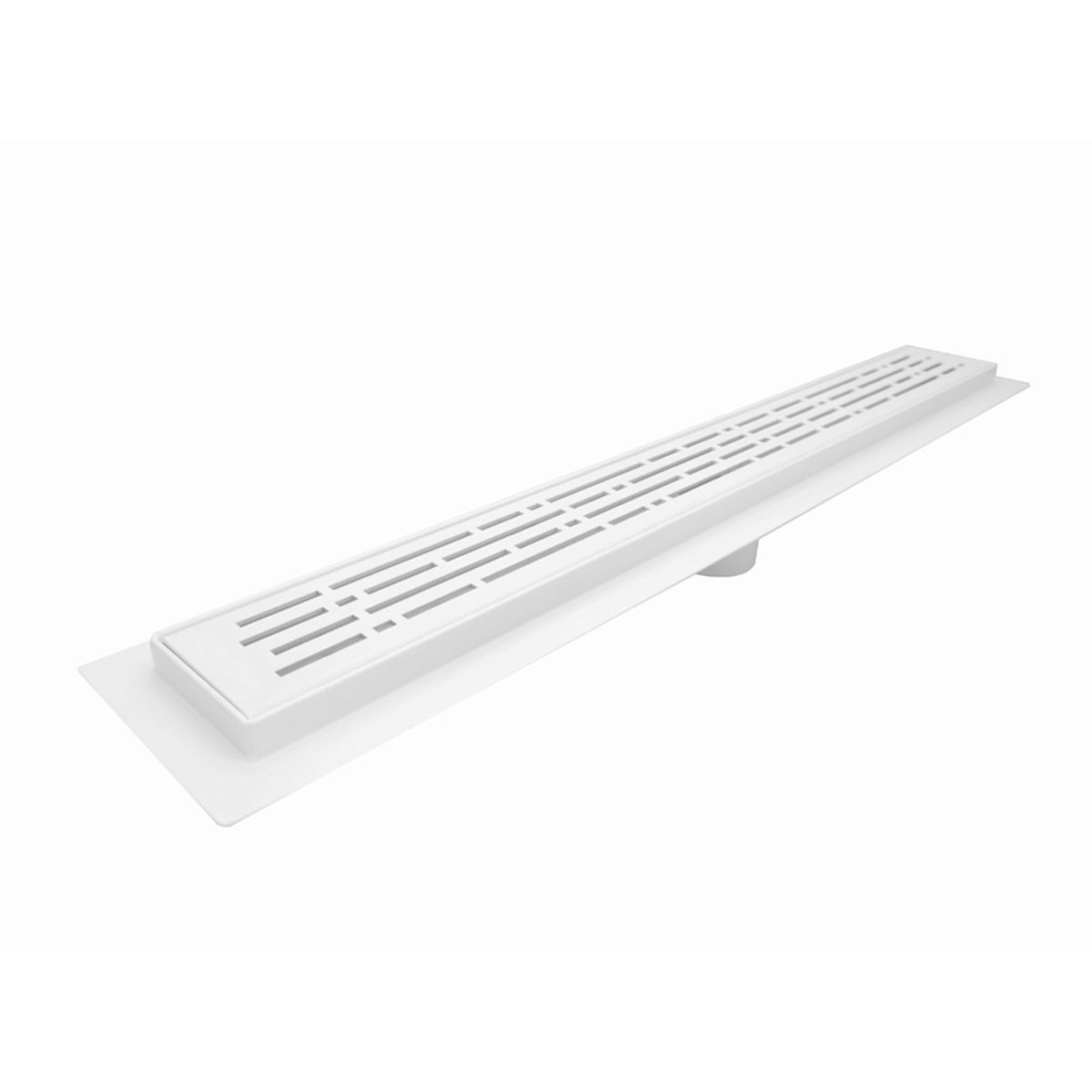

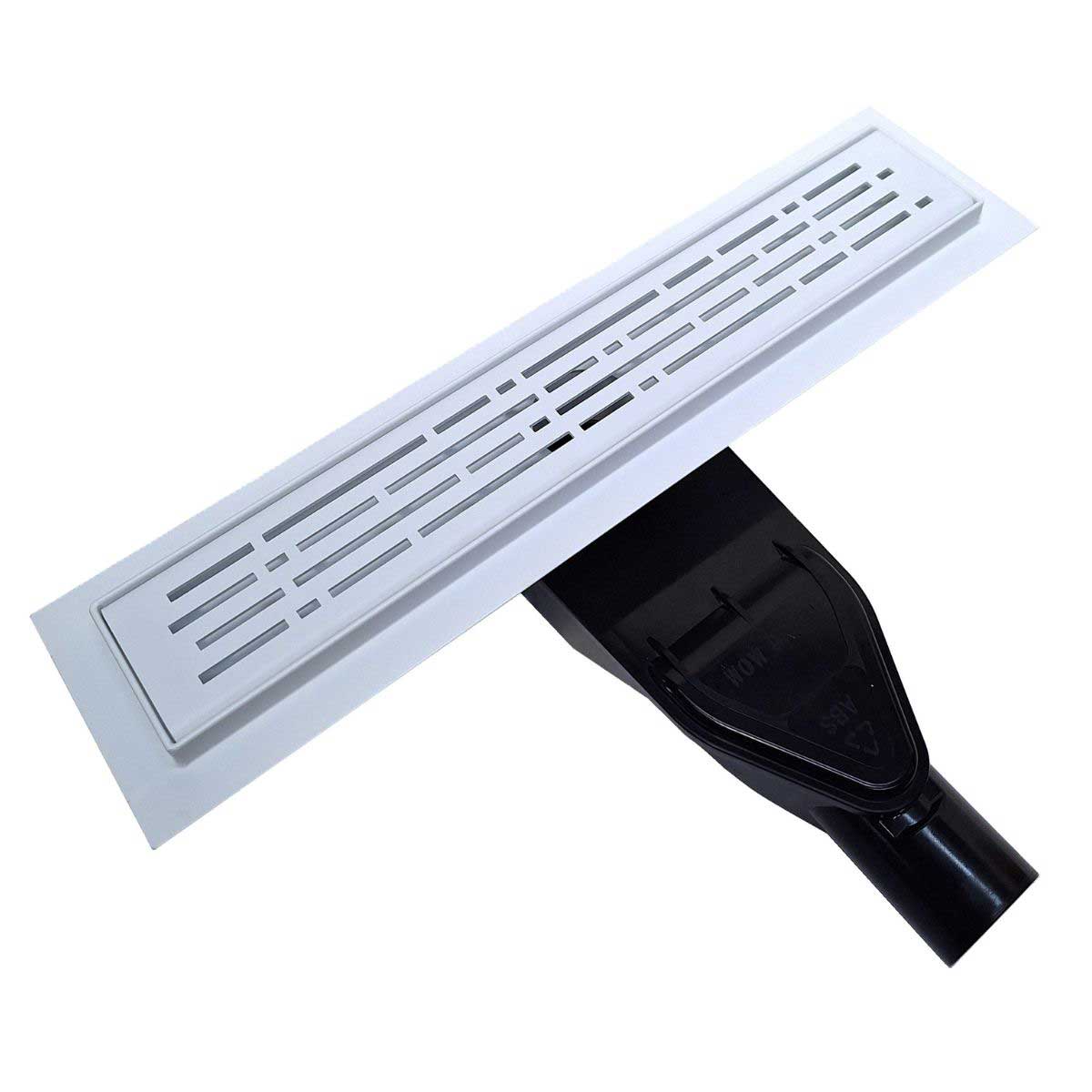

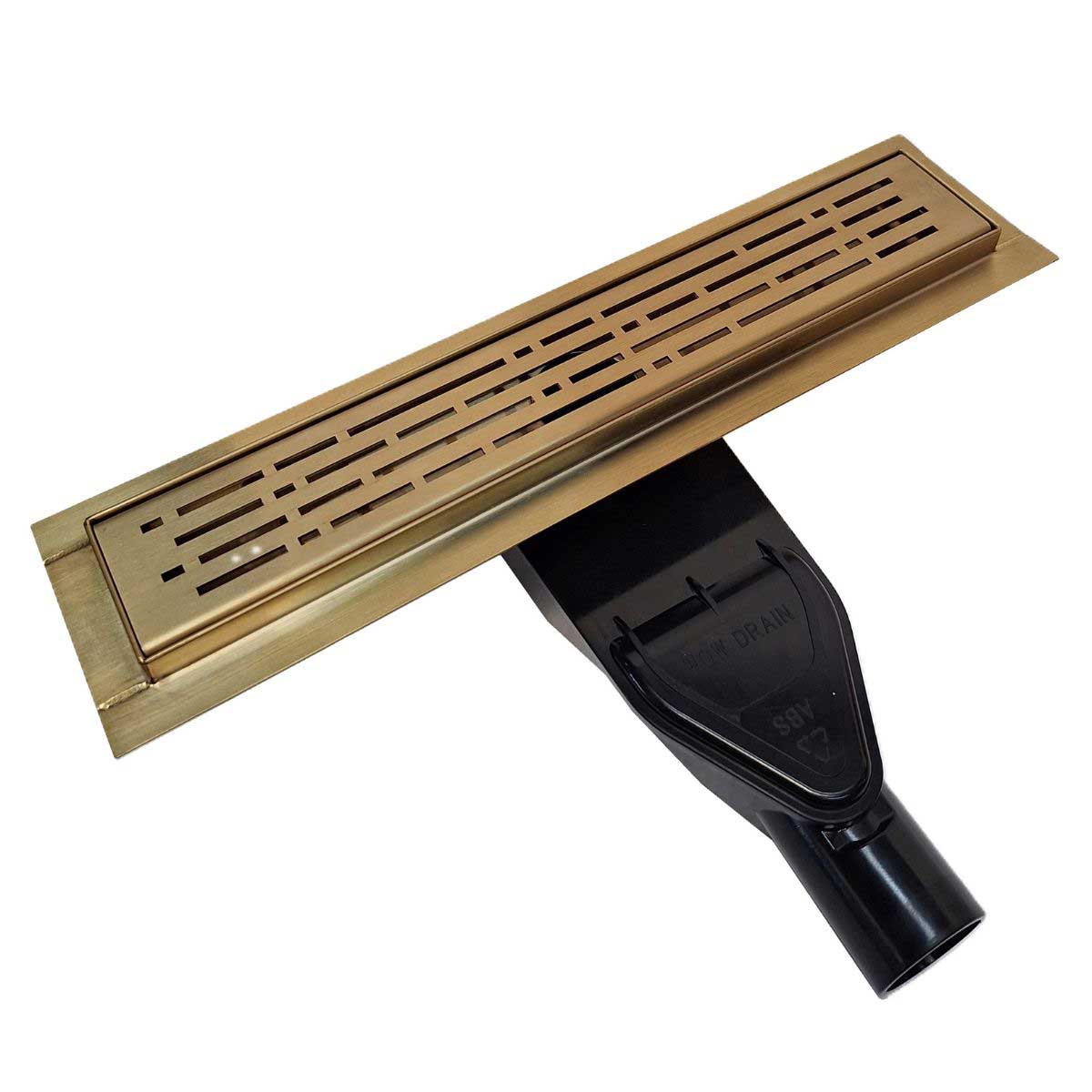

Available Finishes: Brushed Nickel (Standard), Polished Stainless, Matte Black, Satin Gold, and Matte White.
Benefits of the Horizontal Converter System
Reduced Renovation Costs: Connect to existing plumbing even if it is not directly beneath the new drain location, minimizing floor destruction.
Architectural Flexibility: Enables curbless, barrier-free, and walk-in shower designs in challenging environments like concrete subfloors.
Consistent Slope Management: Simplifies installation by allowing a single, consistent floor slope toward the wall or side.
Easy Maintenance: The "Broken Lane" grate is easily removed using the included puller key for debris clearing and cleaning.
