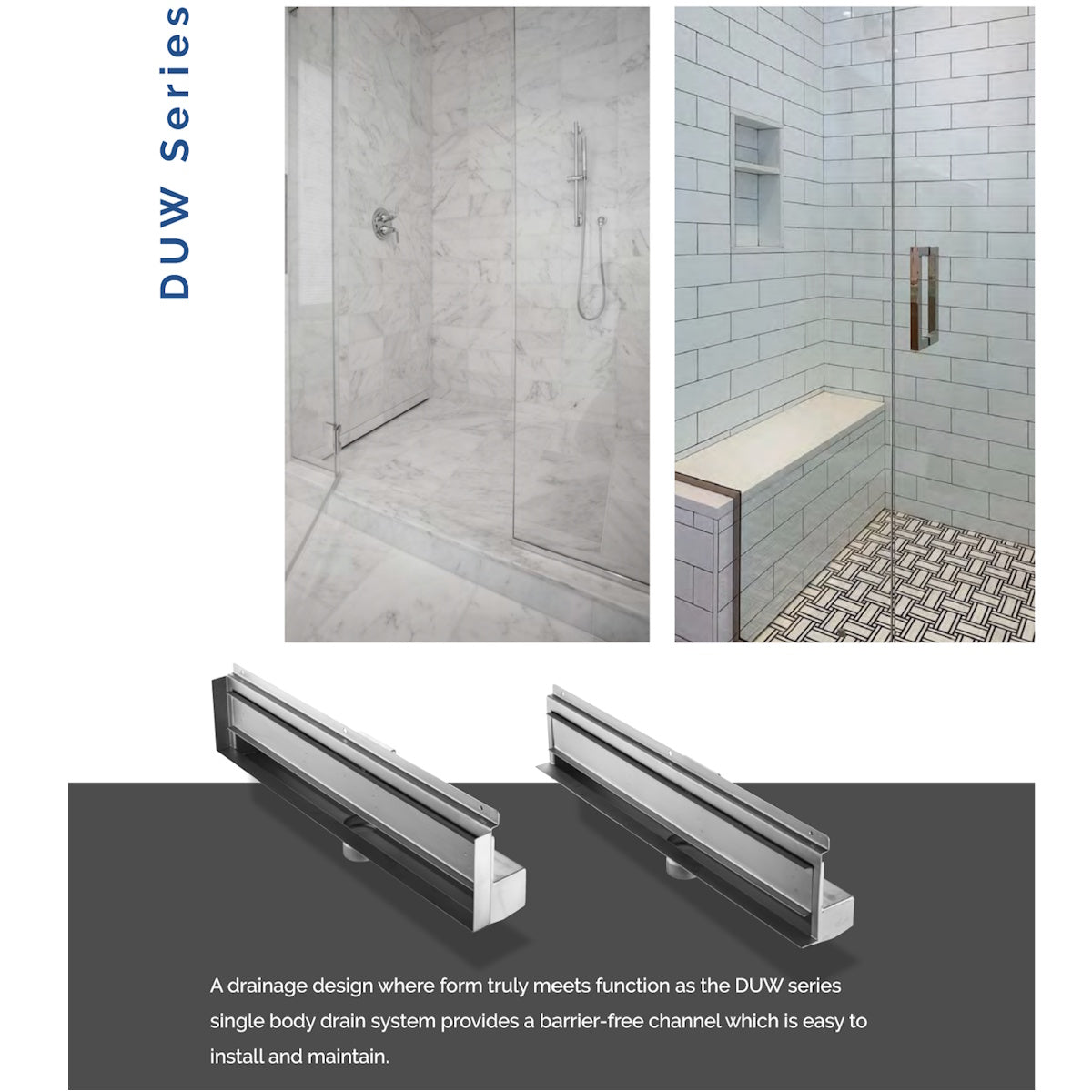

Linear Wall Drain – Invisible Wall Recessed Linear Shower Drain by Drains Unlimited

Flangeless DUW Series - Designed for universal installation, this drain is perfect for most applications—especially where the drain ends are located near a curb or a curbless shower entry.

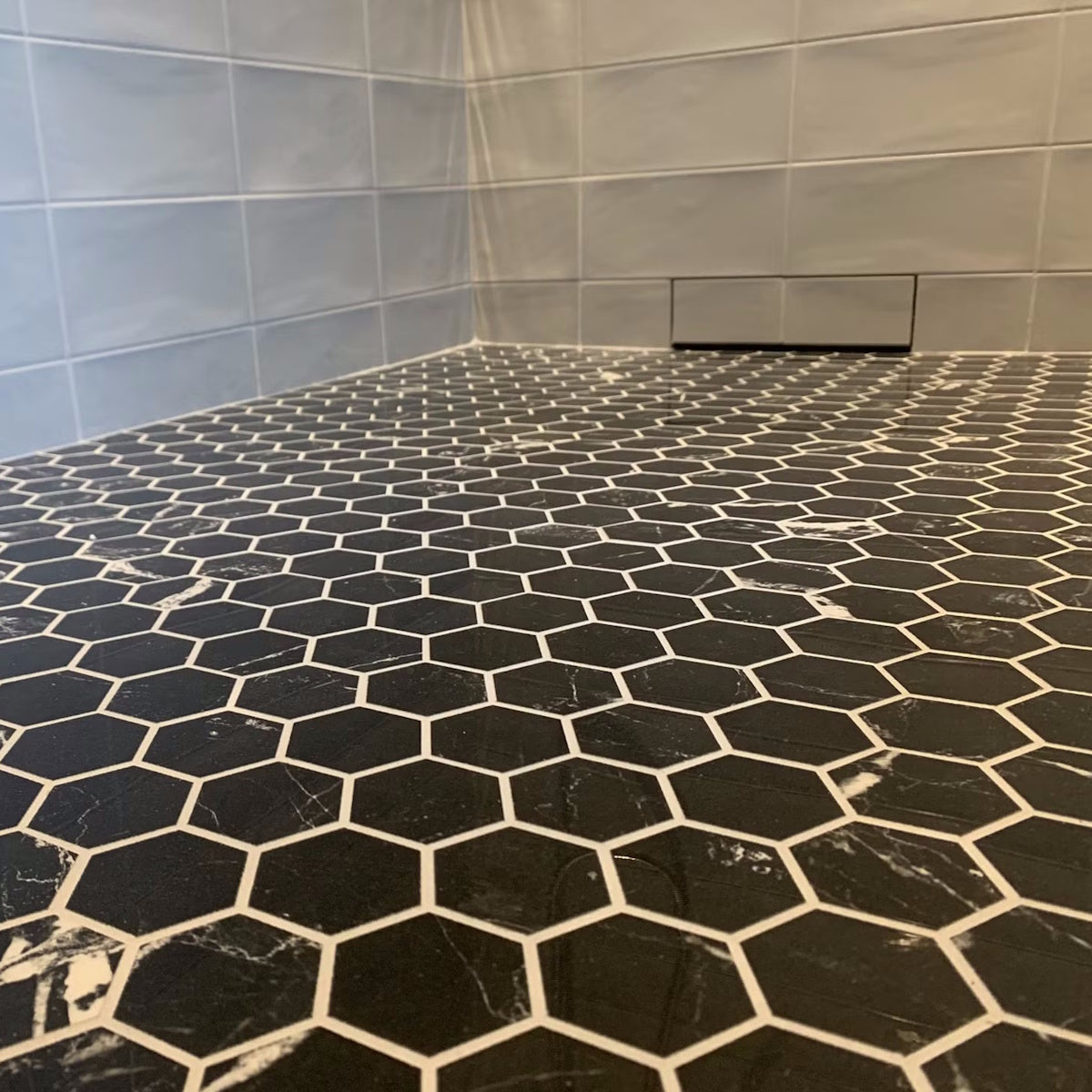

Our linear wall drain is a sleek, modern solution installed flush with the wall, offering a seamless, clean aesthetic. Positioned along the wall with the floor sloping toward it, this design ensures efficient water drainage while maximizing hygiene and durability. Featuring a tile-insert grate that seamlessly blends with the wall tile, it provides a discreet, minimalistic look.

Main Features

• Magnetic Tile Insert Grate – Removable and tile-inlay for near invisibility and easy cleaning
• 2-3/8" Center Outlet – Compatible with no-hub coupling installation
• 14-Gauge AISI 304 Stainless Steel – Rust-resistant with electro-passivated finish for long-term durability
• Seamless Design – Enhances the aesthetic of your shower space
• Single Slope to Drain – Ensures efficient drainage

Versatile & Universal Design

The flangeless recessed linear drain is engineered for versatility in both curb and curbless shower designs. It’s especially well-suited for installations where the drain ends are close to the shower entry. For wall-to-wall installations, a Wall Flange (DUWR) Design is available.

Tile & Slab Compatibility

• Floor Tile: 1/8" – 3/8"
• Stone Slab: 1/2" – 3/4"
• Accommodates Any Tile Format – Flexibility to match your design preferences

Package Includes

• Drain Body
• Grate
• Hair Strainer
• Puller Key

Available Sizes

12", 29", 31", 33", 35", 39", 41", 43", 47", 53", 59", 65", 71"

Key Features

• Flangeless (DUW) and Wall Flange (DUWR) Options – Flexible designs for all shower setups
• Heavy-Duty 304 Stainless Steel – Built to last
• Electro-Passivated Finish – Food-grade, hygienic surface
• Under-Shower Bench Installations – Create a refined, modern aesthetic
• Magnetic, Removable Tile-Inlay Grate – For easy cleaning and minimal visibility
• Waterproofing Compatibility – Liquid and fabric membranes
• Certifications – UPC, CSA, ASME
• Tile-in Grate to Match Wall Tile – Seamless integration with your shower design
• Shallow V-Bottom Design – Ensures better water flow to the drain outlet
• SANS10400 Compliant – Meets 75mm water seal requirements
• Strainer Included – Prevents debris from blocking drainage

Applications

• Showers
• Baths
• Balconies
• Hotel Rooms
• Gyms
• Spas

Compatible Substrates

• Concrete
• Exterior Glue Plywood (interior only)
• Cement Backer Board
• Pre-Slope Foam Shower Pans

Industry Compatibility

DUW Series drains are highly compatible with North American shower construction systems and waterproofing materials from top brands, including:

• Blanke Aqua-Shield
• Laticrete
• Mapei
• Schluter

Custom Sizes Available

Contact Us for Contractor Discounts
