SereneDrains 24 Inch Linear Shower Drain Kit with 2 Inch Drain Flange, Hair Trap | 6 Grate Designs
24 Inch Linear Shower Drain Kit with Hair Trap and ABS or PVC 2 Inch Drain Flange Base
SereneDrains are the perfect choice for luxury bathrooms and modern shower spaces. Known for their clean aesthetics and reliable performance, SereneDrains are crafted from 16-gauge SS304 stainless steel for outstanding durability. With a wide selection of stylish grate designs and compatibility with all major waterproofing systems, SereneDrains deliver professional-grade quality for both small and large residential shower remodeling projects.
We make installation easy by including your choice of ABS or PVC drain flange to match local plumbing codes. The kit also comes with a removable hair strainer to help keep your pipes clear. It’s a complete setup at a discounted price—everything you need for a smooth, worry-free install.

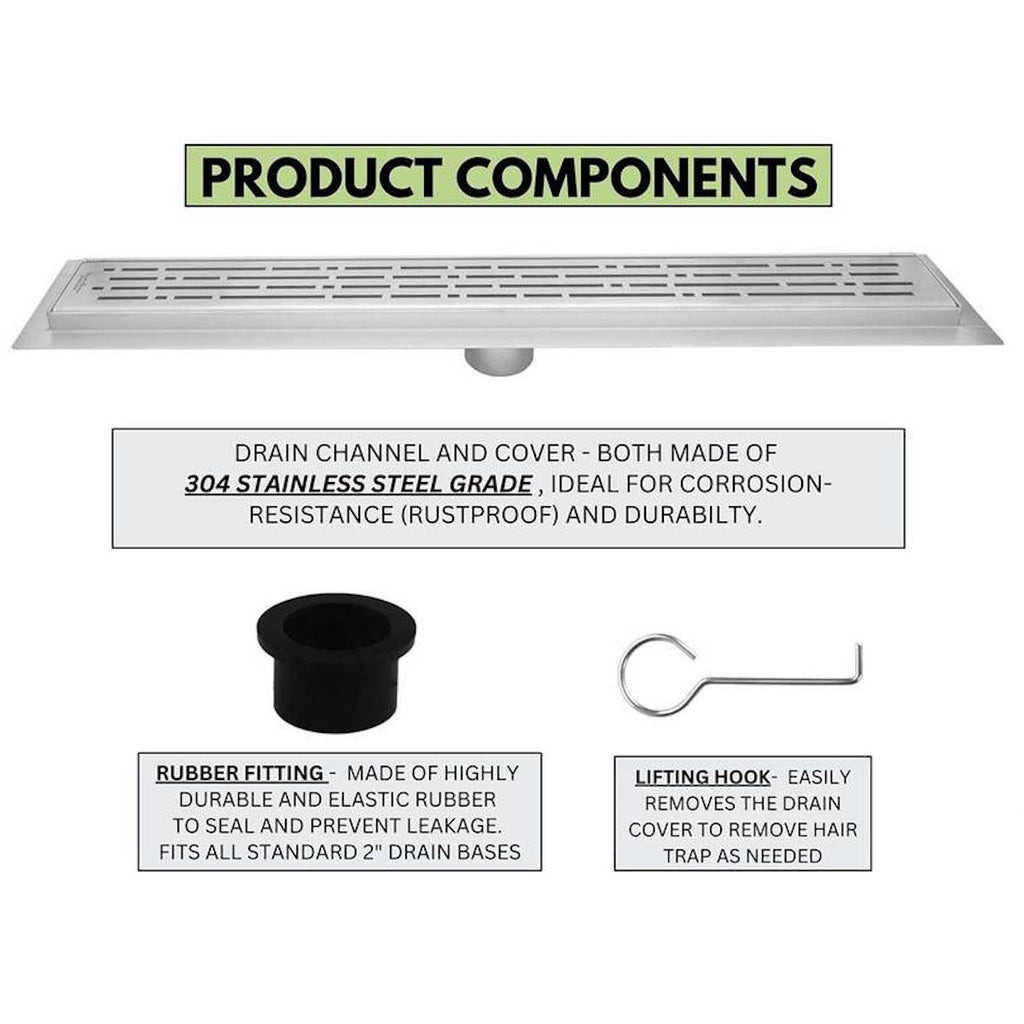

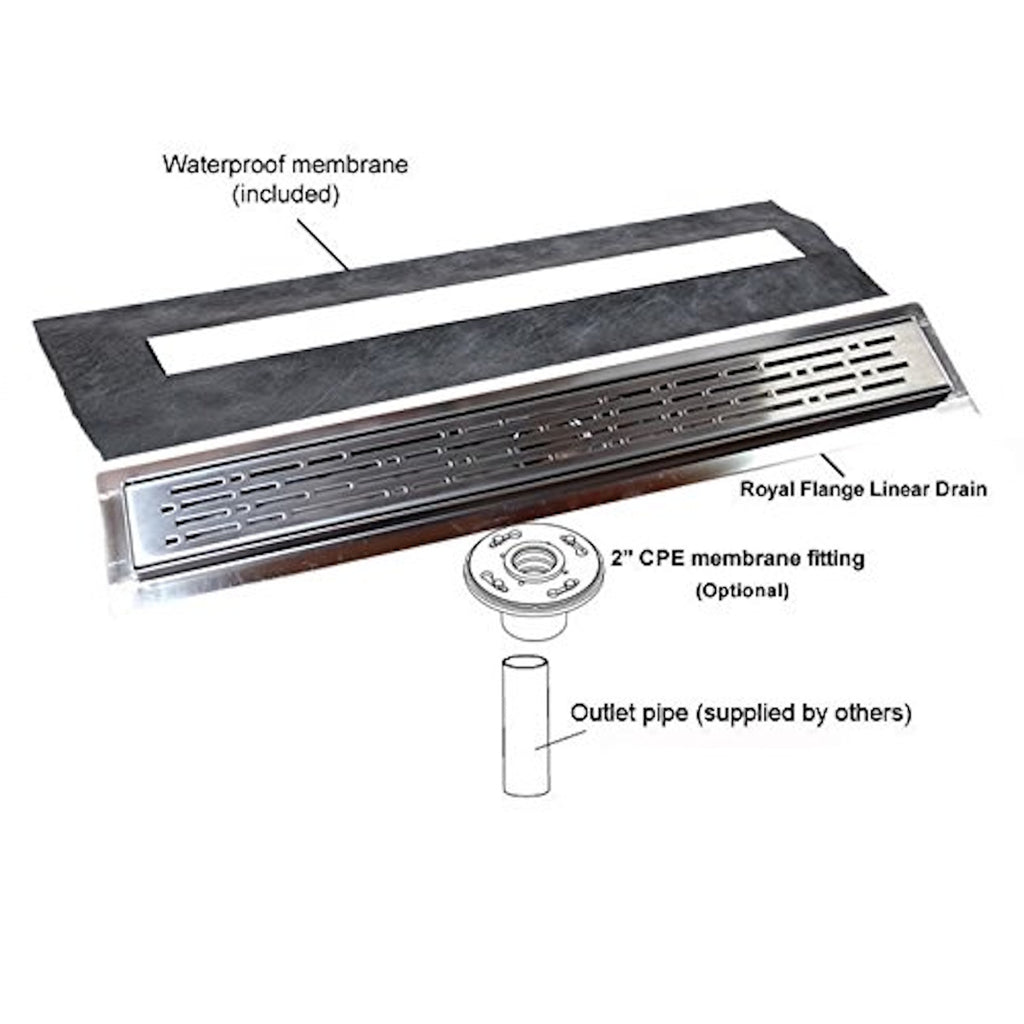

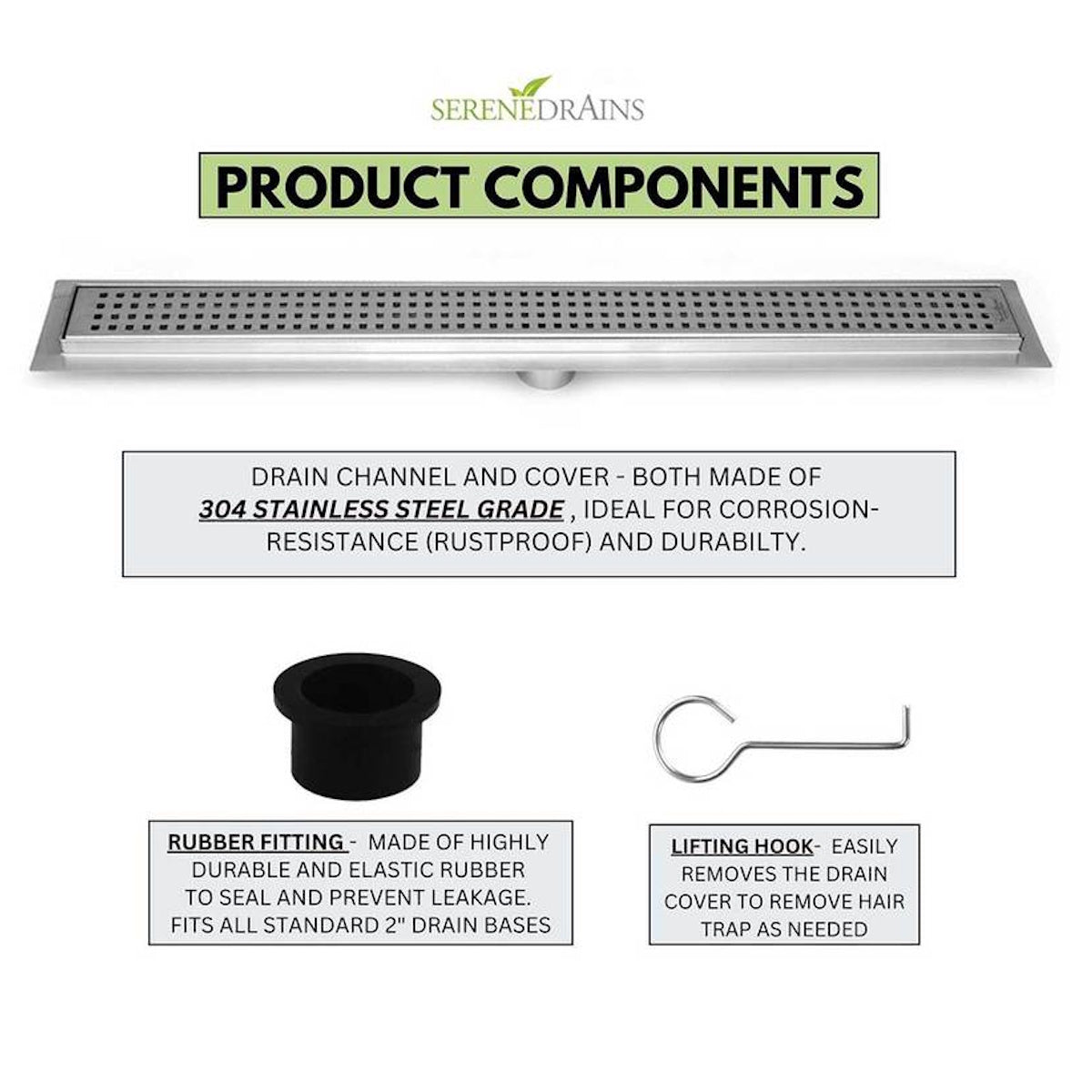

Complete Linear Drain Kit Includes:
- Stainless steel channel body and grate
- 2" ABS or PVC shower drain base
- Rubber gasket
- Hair Strainer
- Puller key
- Waterproofing membrane sheet
- Installation instructions
Note: ABS drain flange is shipped by default. Please consult your contractor or plumber to confirm whether ABS or PVC flange is required by your local building code.
Available Grate Designs (6):

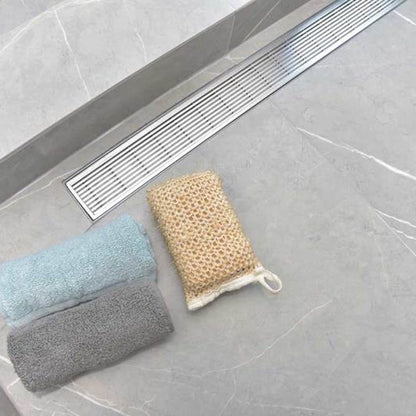

- Wind Design

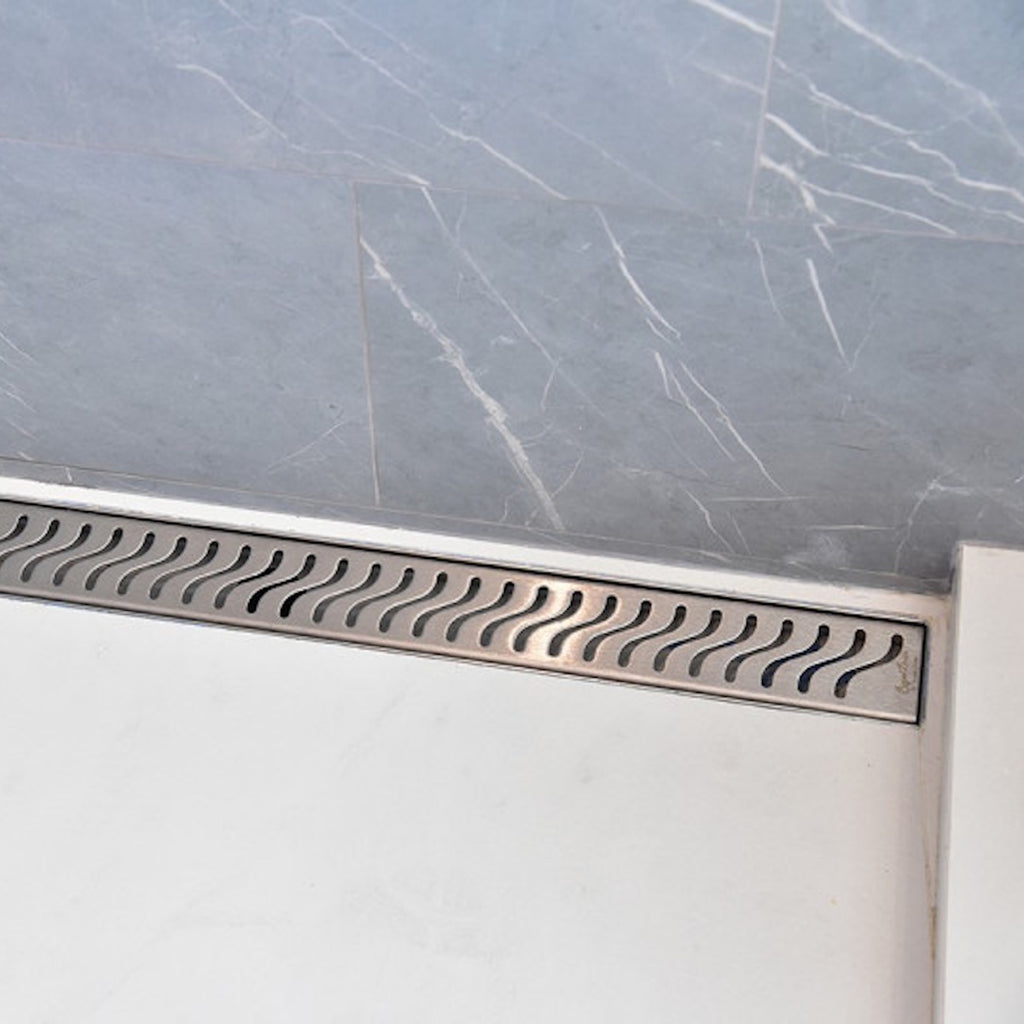

- Wave Design

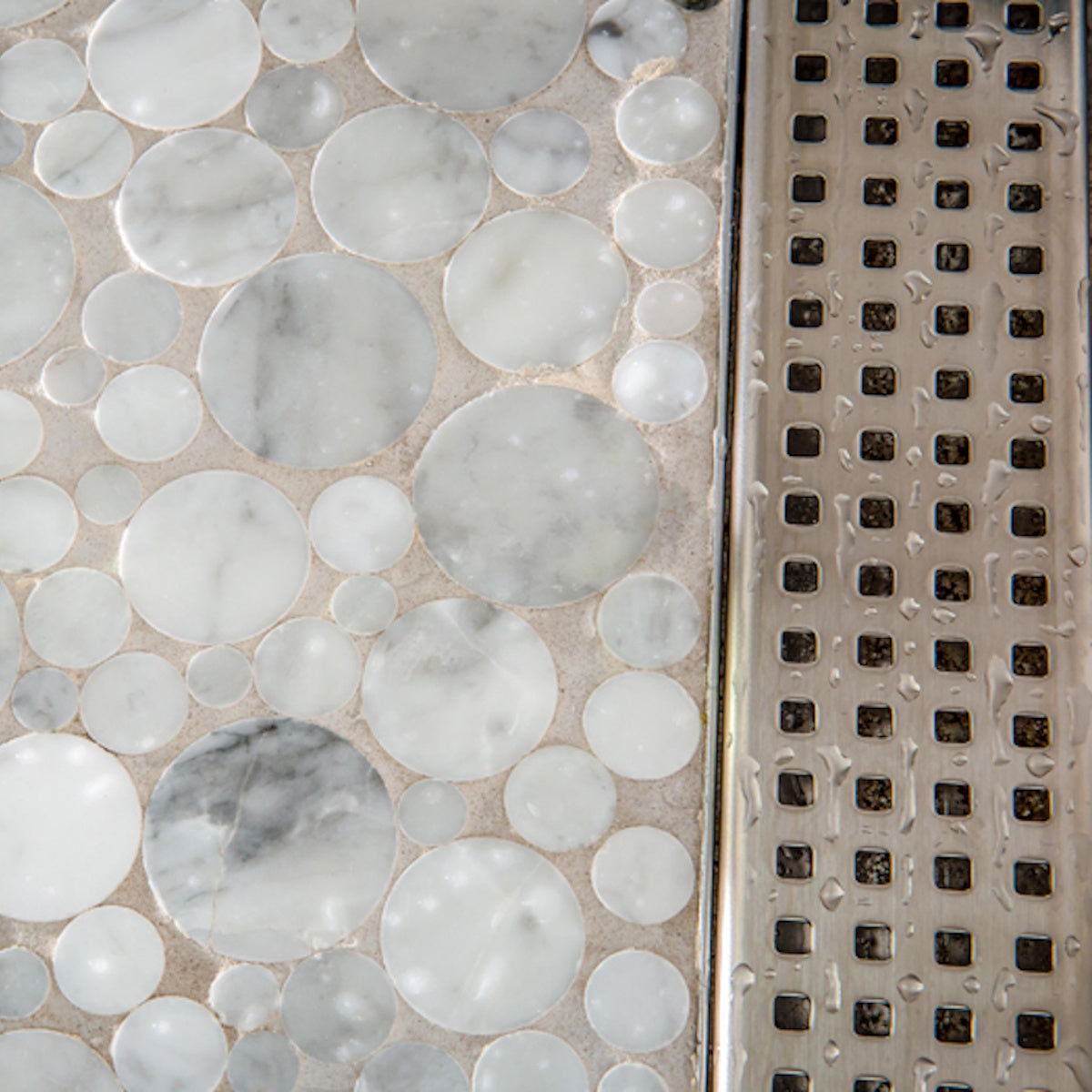

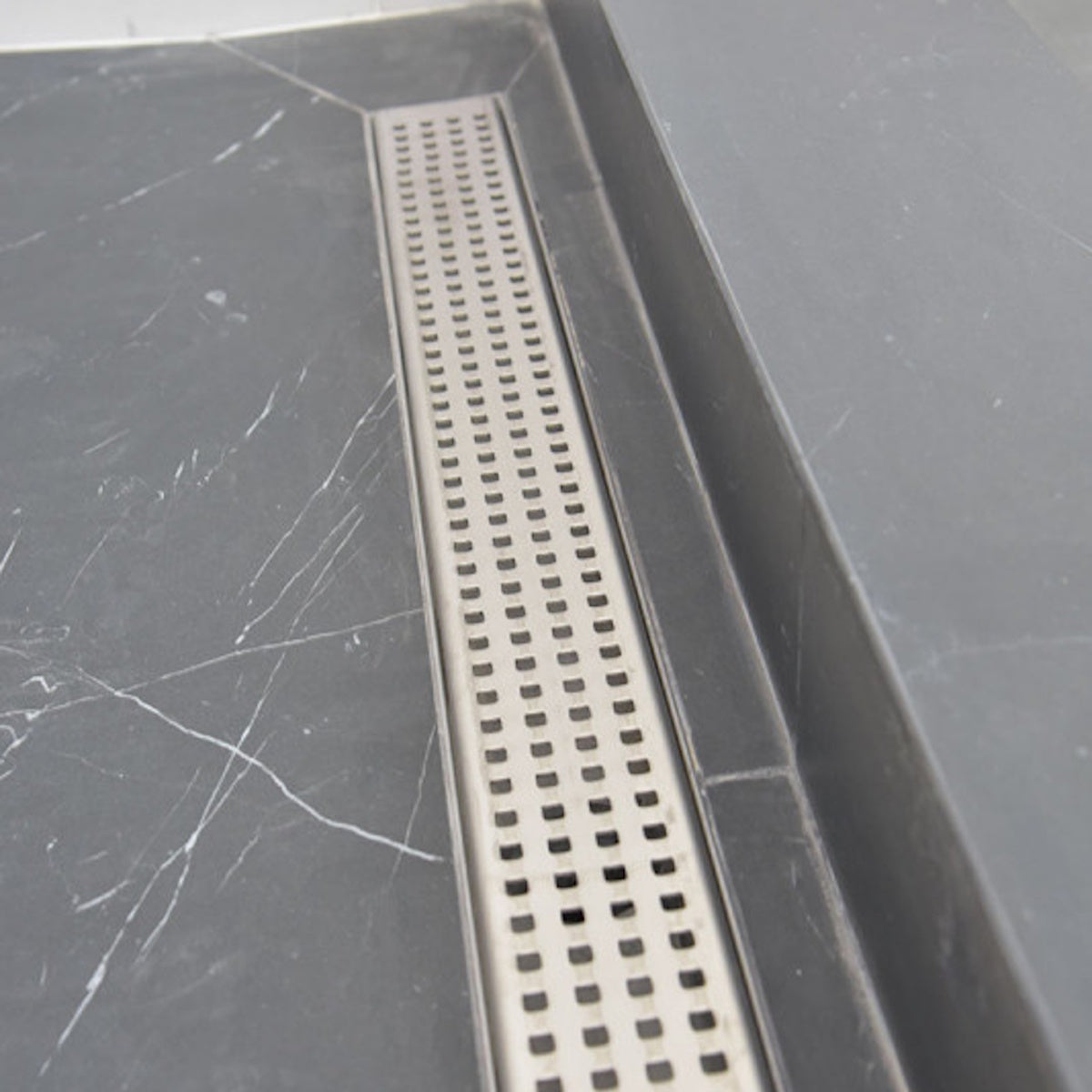

- Square Design

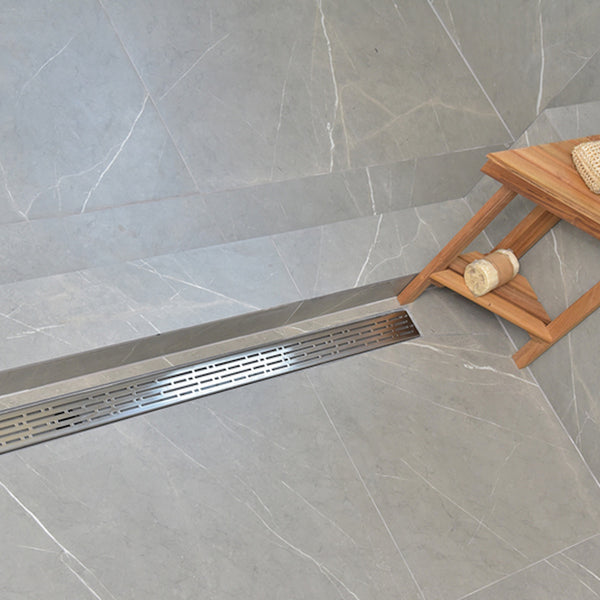

- Broken Lane Design
- Tile Insert Design
- Linear Wedge Design
Applications:
- Wheelchair access & ADA-compliant barrier-free showers (walk-in layouts)
- Residential or commercial showers and baths
- Kitchens, pools, balconies, hotels and more
Key Features:
- Brushed nickel finish on 304-grade stainless steel
- Electropolished, laser-cut grate surface for a clean look
- Fully welded and leak-tested before shipping
- Central 2" vertical outlet fits standard 2" shower drain flange
- Tile compatibility: up to 10mm depth (14mm lip)
- Pre-sloped channel design
- Channel width: 2 3/4" (70mm)
- Compatible with 1/2", 1", 2", and 4" tiles – no tile cutting required
Drain Grade:
- Standard grates: 16-gauge 304 stainless steel
- Wedge design: 6-gauge 304 stainless steel
Flow Rates:
- 6.3 GPM (0.4 l/s) at entrance
- 9.5 GPM (0.6 l/s) against wall
Flange edge works with all waterproofing systems:
- Hot mop
- Liquid/painted membranes
- Sheet membrane
- Vinyl waterproofing

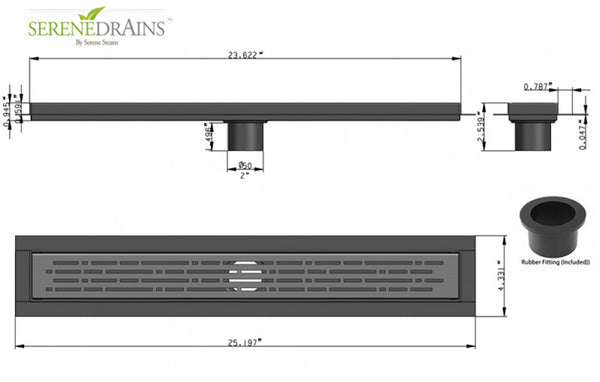

Drain Dimensions Available:
| Net Size (inches) | Metric | Overall Size (inches) | Intake Area (sq. in.) |
|---|---|---|---|
| 15 3/4" x 2 3/4" | 400 mm | 17 1/4" x 4 3/8" | 12.38 |
| 23 1/2" x 2 3/4" | 600 mm | 25.2" x 4 3/8" | 14.96 |
| 30" x 2 3/4" | 762 mm | 31.57" x 4 3/8" | 17.62 |
| 35 3/8" x 2 3/4" | 900 mm | 37.01" x 4 3/8" | 20.03 |
| 39 3/8" x 2 3/4" | 1000 mm | 40.95" x 4 3/8" | 21.12 |
| 47 1/4" x 2 3/4" | 1200 mm | 48.82" x 4 3/8" | 26.68 |
| 59.05" x 2 3/4" | 1500 mm | 60.63" x 4 3/8" | 31.67 |
✅ In stock – Ships from the USA
