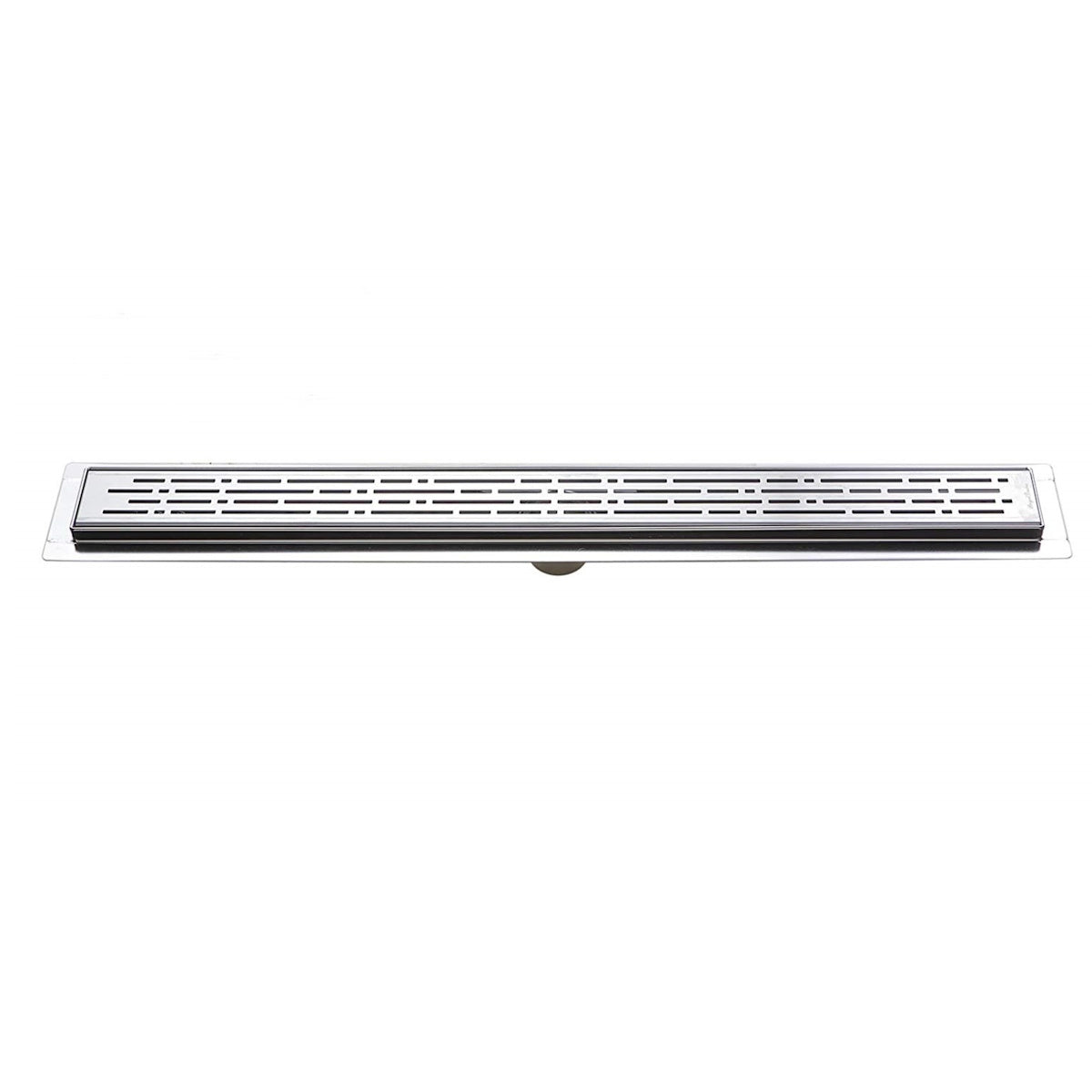

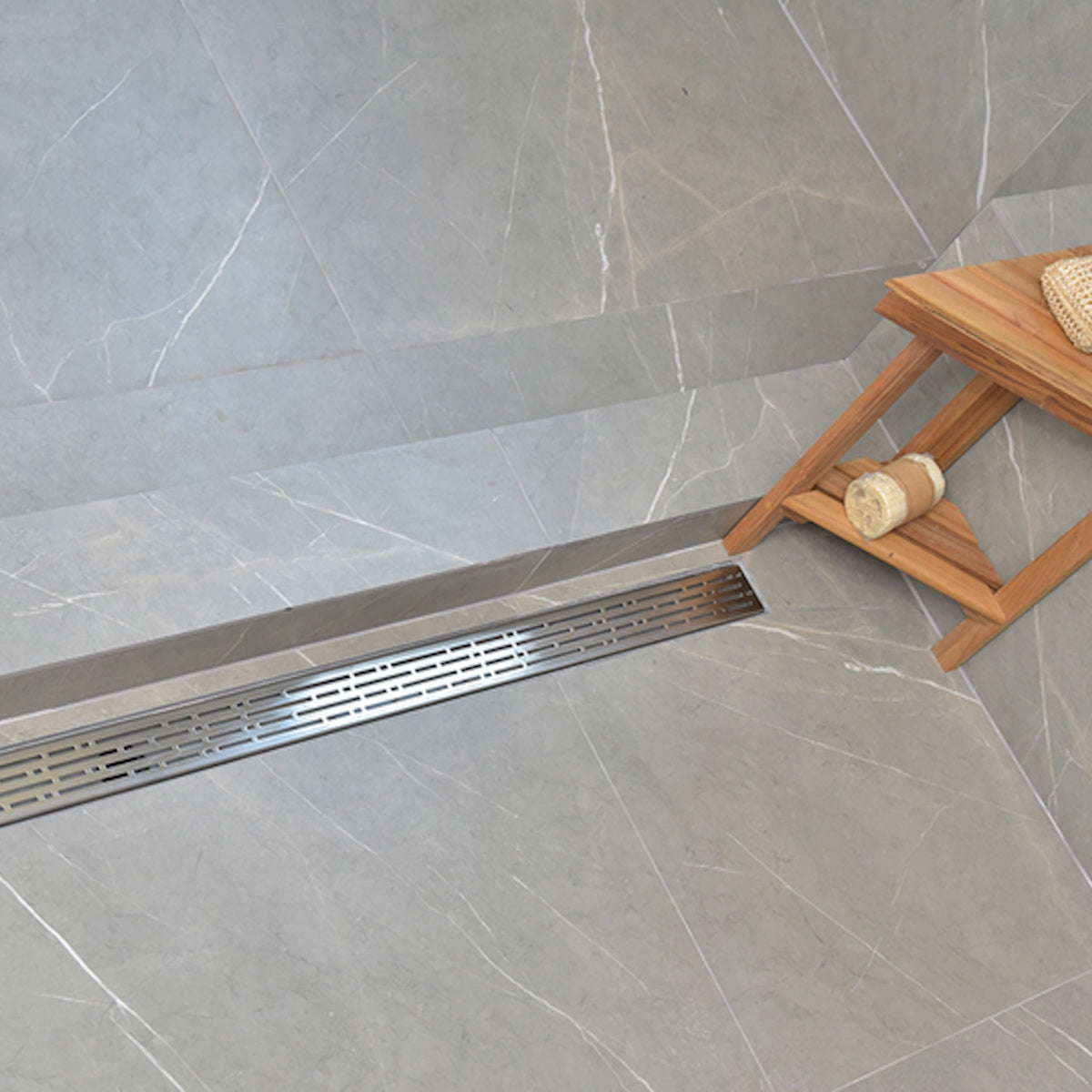

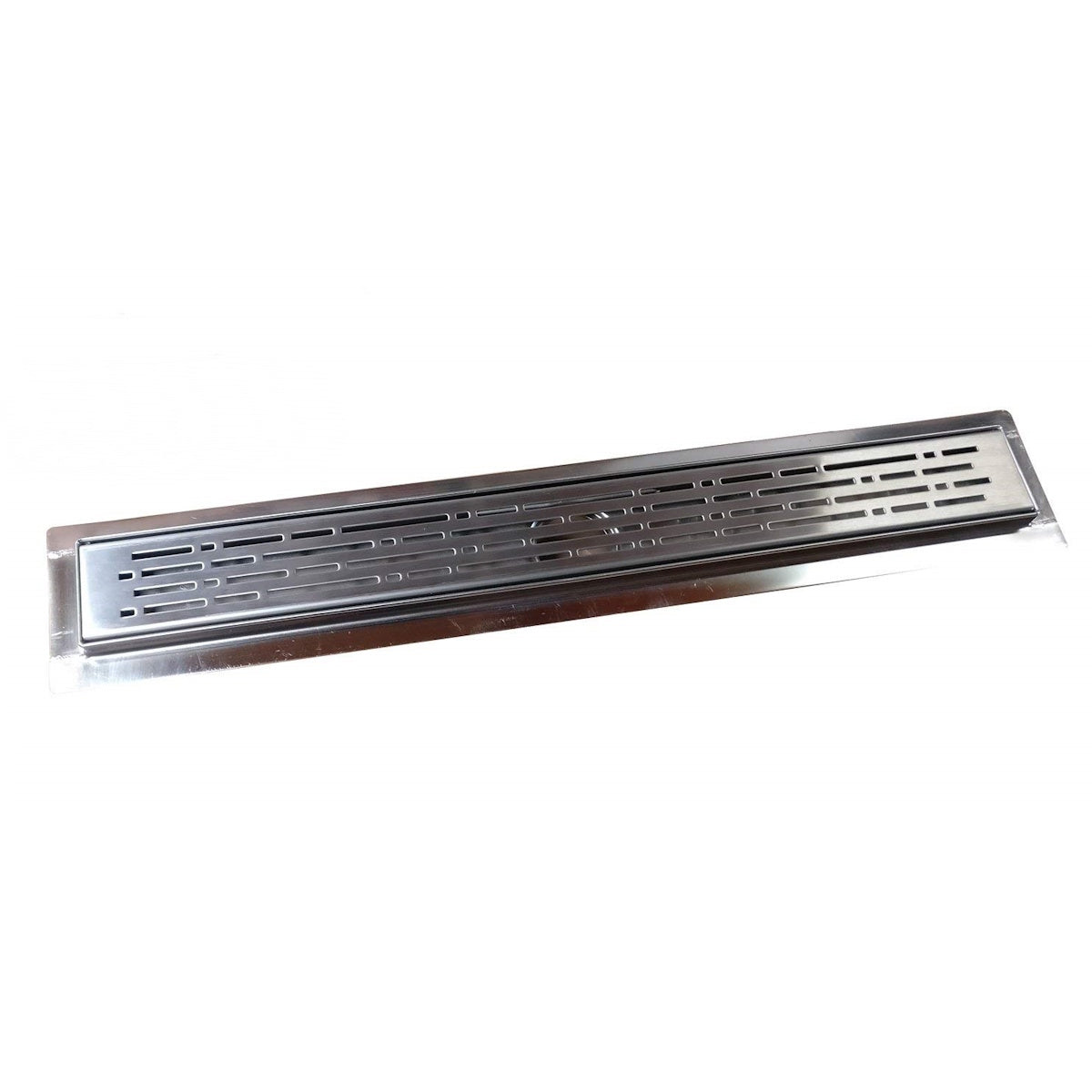

Polished Chrome Linear Shower Drain – Broken Lane Design by SereneDrains
Enhance your shower space with this luxurious linear drain in polished chrome finish and Broken Lane design, offering both style and functionality.
Available Sizes:

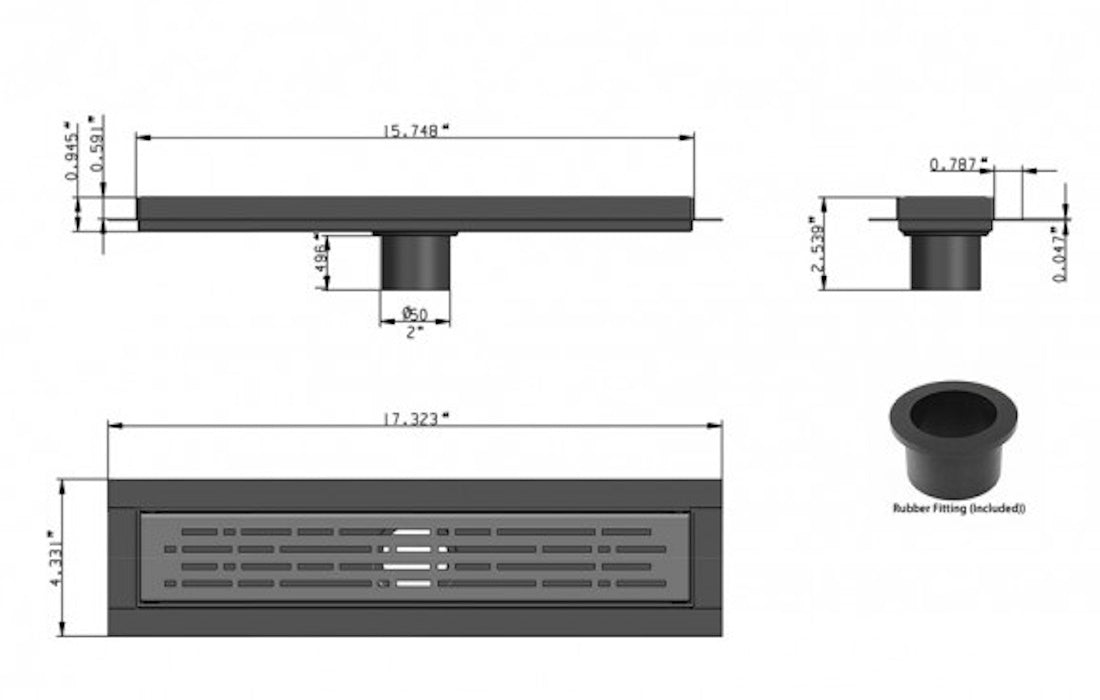

• Net Size: 15 ¾" x 2 ¾" (400mm) | Overall Size: 17 ¼" x 4 3/8" | Intake: 12.38 sq. in.

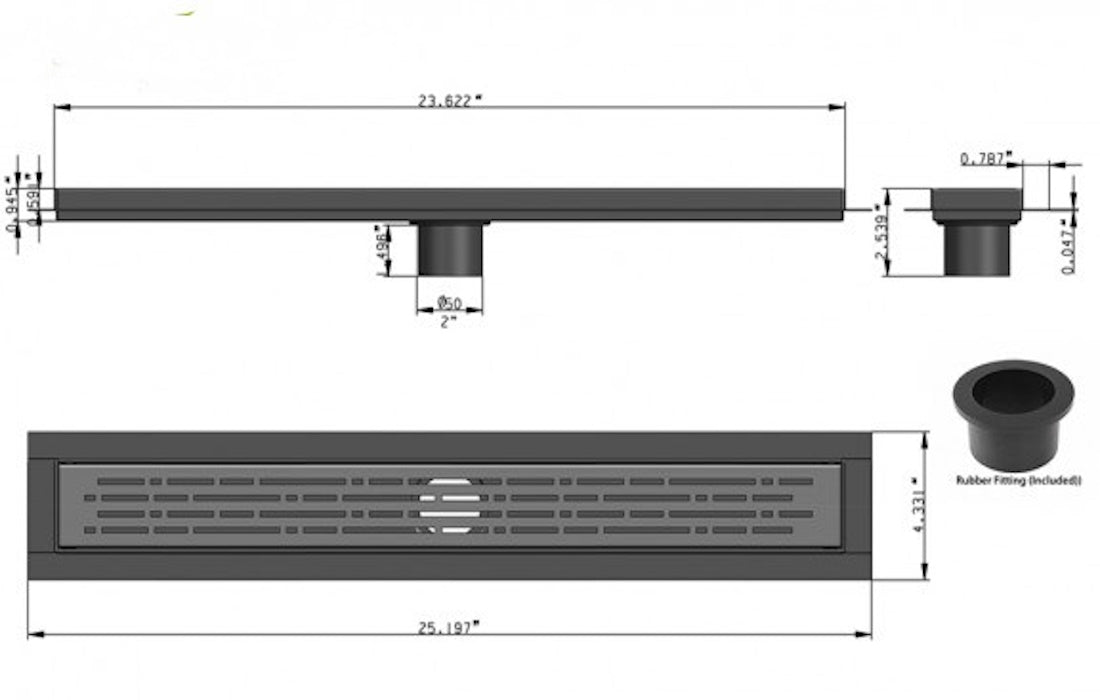

• Net Size: 23 ½" x 2 ¾" (600mm) | Overall Size: 25.2" x 4 3/8" | Intake: 14.96 sq. in.
• Net Size: 30" x 2 ¾" (762mm) | Overall Size: 31.57" x 4 3/8" | Intake: 17.62 sq. in.

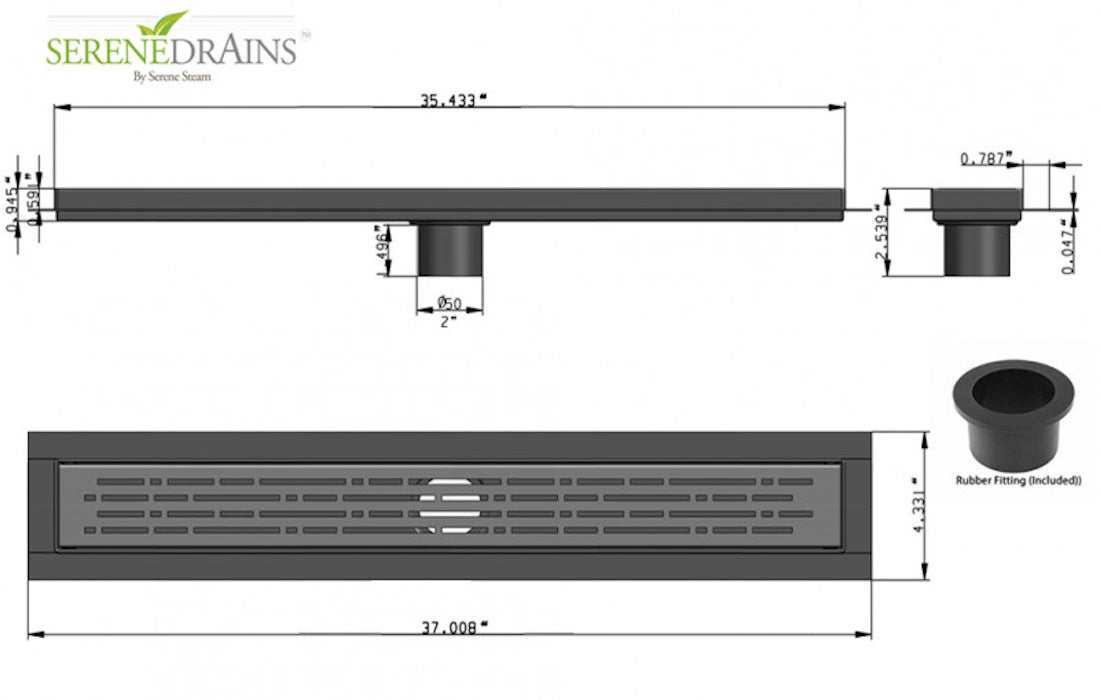

• Net Size: 35 ⅜" x 2 ¾" (900mm) | Overall Size: 37.01" x 4 3/8" | Intake: 20.03 sq. in.

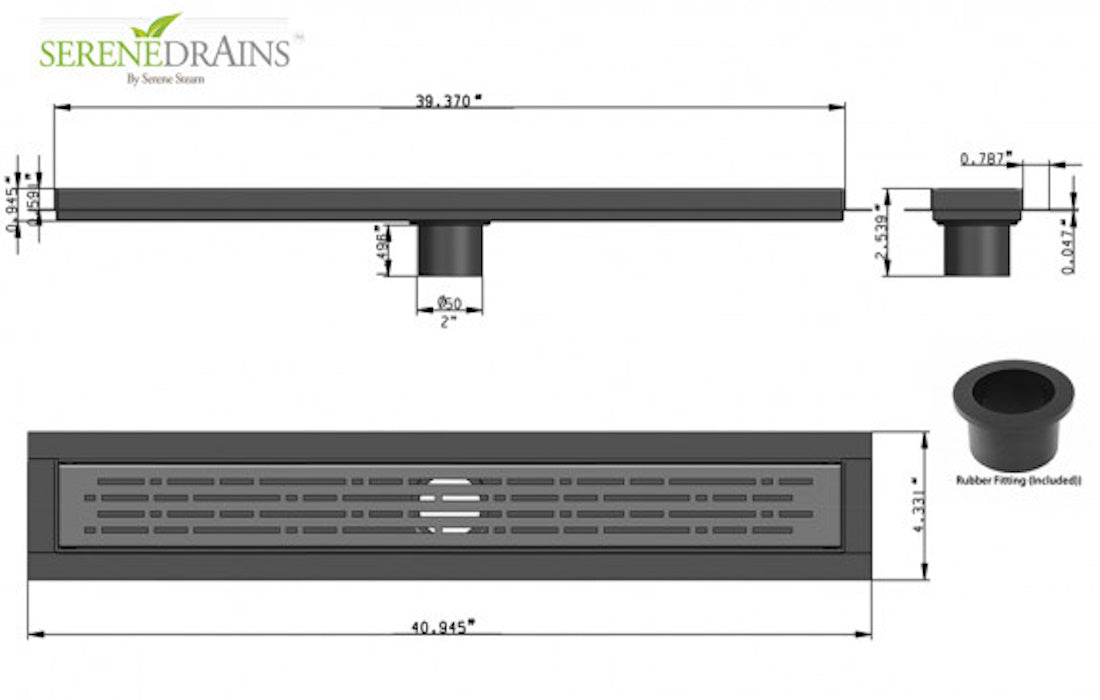

• Net Size: 39 ⅜" x 2 ¾" (1000mm) | Overall Size: 40.95" x 4 3/8" | Intake: 21.12 sq. in.
• Net Size: 47 ¼" x 2 ¾" (1200mm) | Overall Size: 48.82" x 4 3/8" | Intake: 26.68 sq. in.
• Net Size: 59.05" x 2 ¾" (1500mm) | Overall Size: 60.63" x 4 3/8" | Intake: 31.67 sq. in.
📦 In Stock & Ready to Ship from the USA!
Key Features:

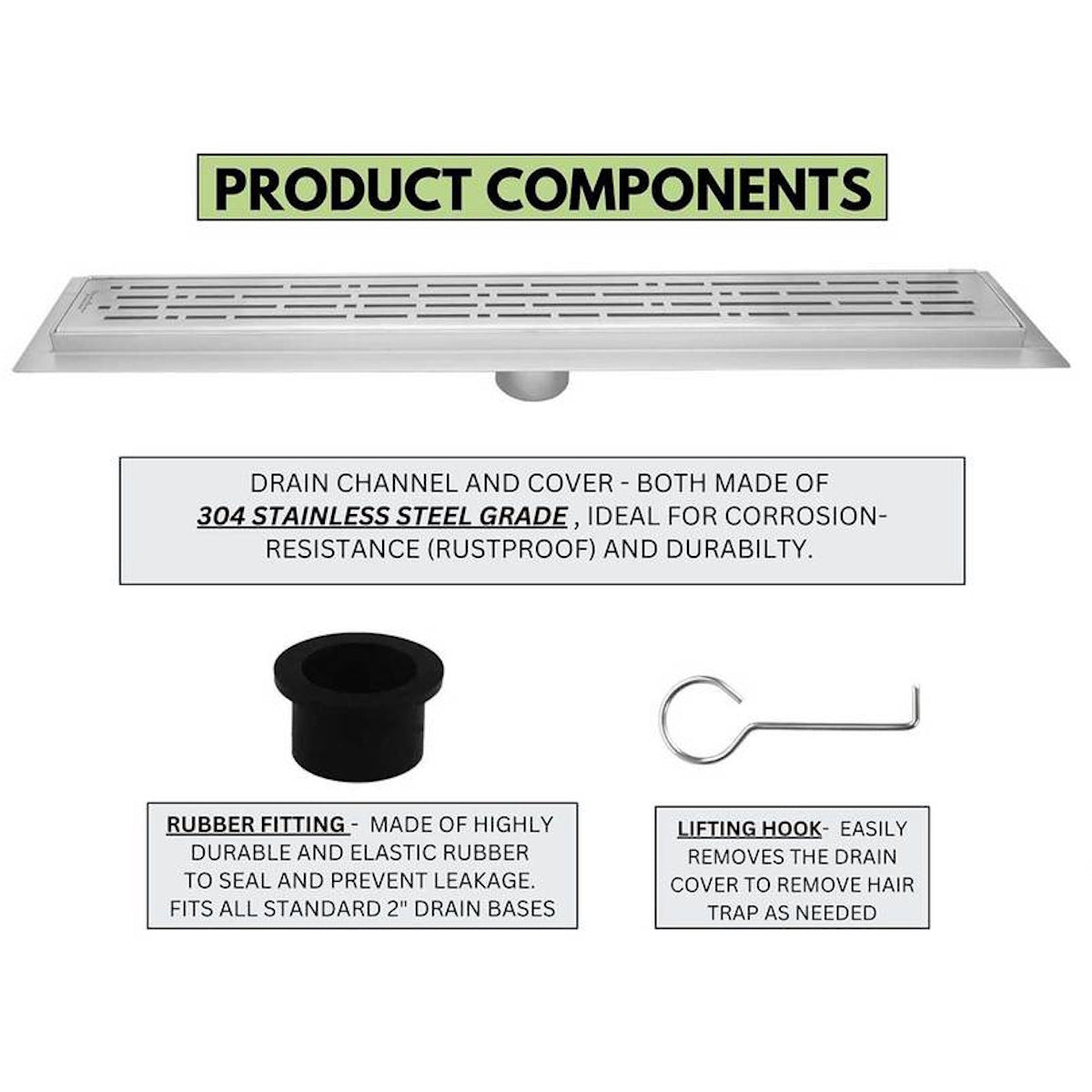

✔ High-Quality Stainless Steel: 16-gauge 304 stainless steel body & grate for durability and resistance to corrosion.
✔ Polished Chrome Finish: Adds a sleek and elegant look to your shower.
✔ Efficient Drainage: Pre-slope channel with a 2" central vertical outlet, designed to fit standard 2" shower drain flanges.
✔ Leak-Proof & Waterproofing Compatible: Compatible with hot mop, sheet membranes, liquid membranes, and vinyl waterproofing.
✔ Easy Installation: Sized to match ½", 1", 2", and 4" tiles without cutting. Works with tiles up to 10mm depth (14mm lip).
✔ ADA Compliant: Ideal for wheelchair access and barrier-free (walk-in) showers.
Versatile Applications:
• Bathrooms & Showers 🛁
• Kitchens & Laundry Rooms 🍽
• Hotels, Gyms & Spas 🏨
Additional Design Options:
• Wind, Wave, Square, Broken Lane, Tile Insert, Invisible Tile Insert, Linear Wedge
• Tile Insert Drains seamlessly integrate with the shower floor tile for a clean, uniform look.
• Invisible Tile Insert Drains completely hide under the floor tile, offering a minimalist, modern appearance.
🛠 Optional Accessories:
• Plumbing connectors (ABS/PVC drain base flange)
• Debris strainer for clog prevention
• Complete drain kits available
Contact us for bulk order discounts.
Order Now fast shipping from in the USA!
