SereneDrains Linear Shower Drain, Polished Chrome, Linear Wedge Design

Elevate your bathroom with the SereneDrains Designer Wedgewire Linear Shower Drain, designed to complement modern shower plans. Featuring a sleek polished chrome finish, this drain combines style and functionality.

Available Sizes:
16", 24", 30", 35", 39", 47", 59".

Also Available In:
Brushed Nickel, Polished Chrome.

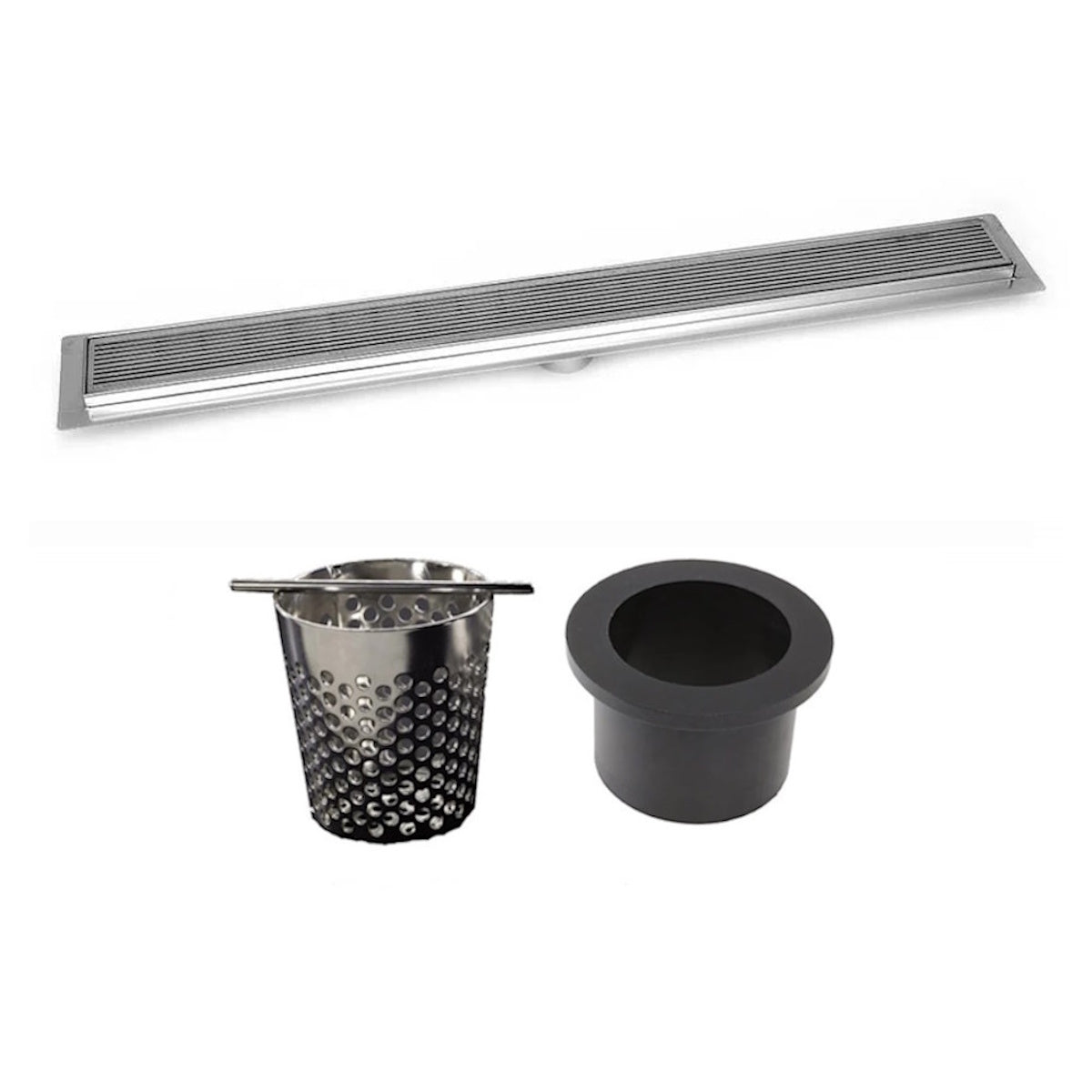

Drain Includes:

• 100% stainless steel channel body & grate

• Puller key

• Rubber gasket

• Waterproofing membrane sheet around the drain flange (not required but included)

• Installation instructions

Applications:
Perfect for showers, master bedrooms, hotel rooms, gyms, home spas, and more. Ideal for wheelchair access and barrier-free showers (walk-in floor plans).

Features:

• Grate Material: Grade 6 gauge (5mm) 304 stainless steel

• Foot-Friendly Grate: Anti-slip nodules for added safety

• Finish: Superior laser-cut electropolish finish for durability and elegance

• Construction: Fully welded bodies, leak-tested before dispatch

• Outlet Size: 2-inch central vertical outlet for compatibility with any 2" shower drain flange

• Tile Compatibility: Suitable for tiles up to 10mm depth (14mm lip); no cutting required for standard 1/2", 1", 2", and 4" tiles

• Pre-Slope Channel: Channel width of 2 3/4" (70mm)

• Flow Rate: 6.3 GPM (0.4 l/s) at the entrance, 9.5 GPM (0.6 l/s) against the wall

Waterproofing Compatibility:
Flange body edge works with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing, and more.

Dimensions Available:

• 15 3/4" x 2 3/4" (400mm) | Intake: 12.38 sq. in.

• 23 1/2" x 2 3/4" (600mm) | Intake: 14.96 sq. in.

• 30" x 2 3/4" (732mm) | Intake: 17.62 sq. in.

• 35 3/8" x 2 3/4" (900mm) | Intake: 20.03 sq. in.

• 39 3/8" x 2 3/4" (1000mm) | Intake: 21.12 sq. in.

• 47 1/4" x 2 3/4" (1200mm) | Intake: 26.68 sq. in.

• 59" x 2 3/4" (1500mm) | Intake: 31.67 sq. in.

Contact us for quantity discounts.
