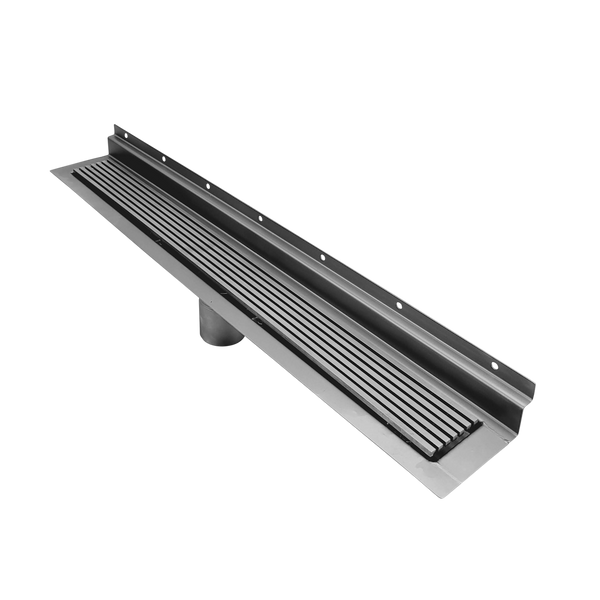

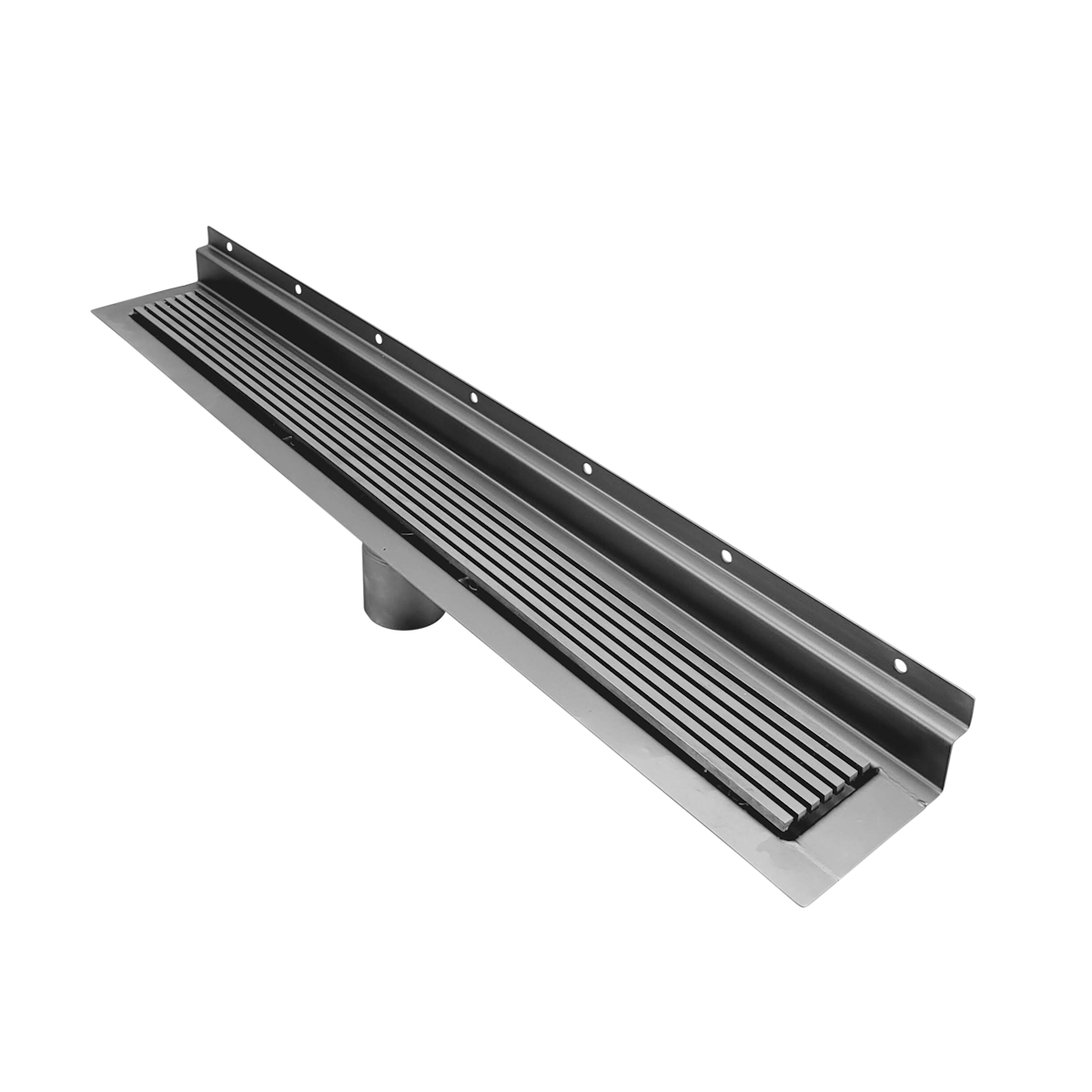

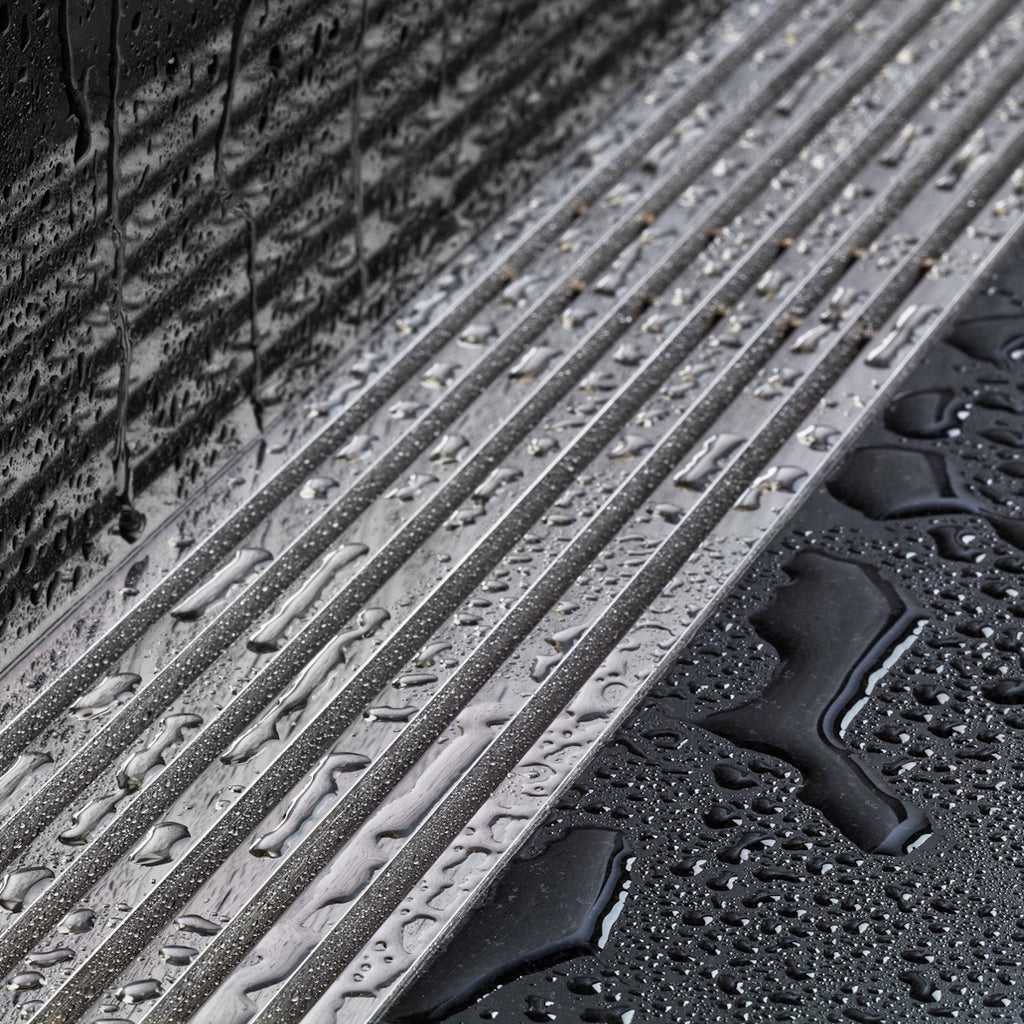

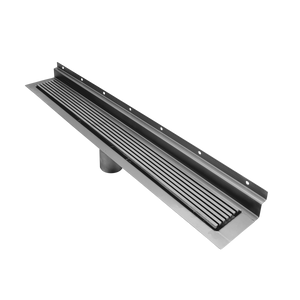

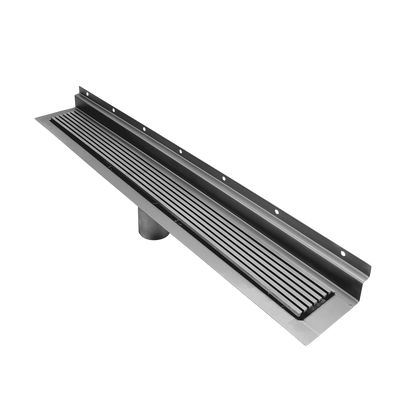

Flush Wall Linear Drains, Polished Wedgewire Design, Backwall Return Flange – Drains Unlimited

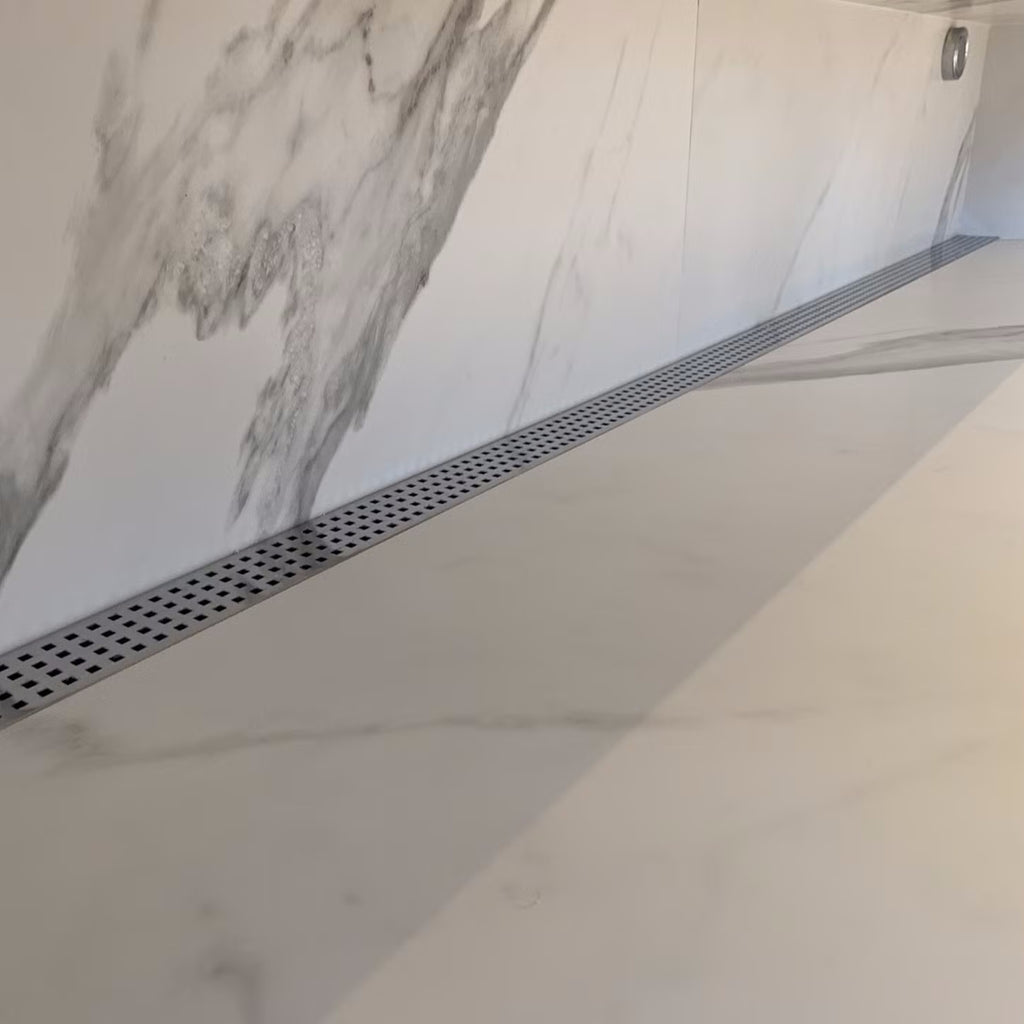

These stainless-steel wall linear drains fit flush along the wall, creating a clean and modern look. A Wall Linear Drain is a long, narrow drain installed along the wall of a shower, allowing for easier tiling, improved water drainage, and better hygiene compared to traditional center drains. Ideal for enhancing drainage in contemporary showers, these drains also add a stylish, refined touch. The wall-mounted design secures directly to the wall frame, eliminating the need for a tile strip between the wall and the drain. This installation simplifies waterproofing and delivers a seamless, professional finish.

Important Note:

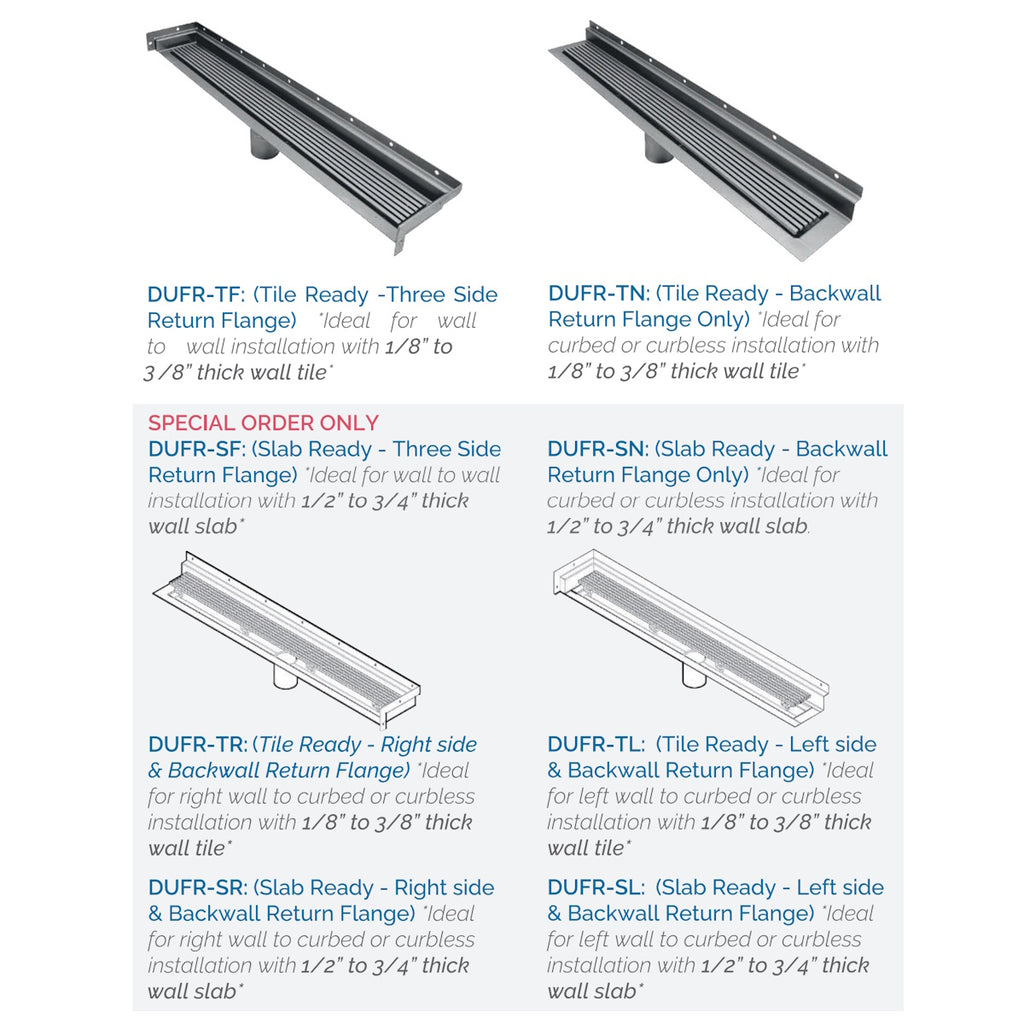

The Backwall Return Flange Only is designed for installation along one shower wall and does not extend fully to the two adjacent walls. This allows for flexible placement anywhere along the back wall, regardless of length.

• Backwall Return Flange Only – Ideal for curbed or curbless installations with 1/8" to 3/8" thick wall tiles
• Three-Side Return Flange – Best for full wall-to-wall installations with 1/8" to 3/8" thick wall tiles

Main Features:

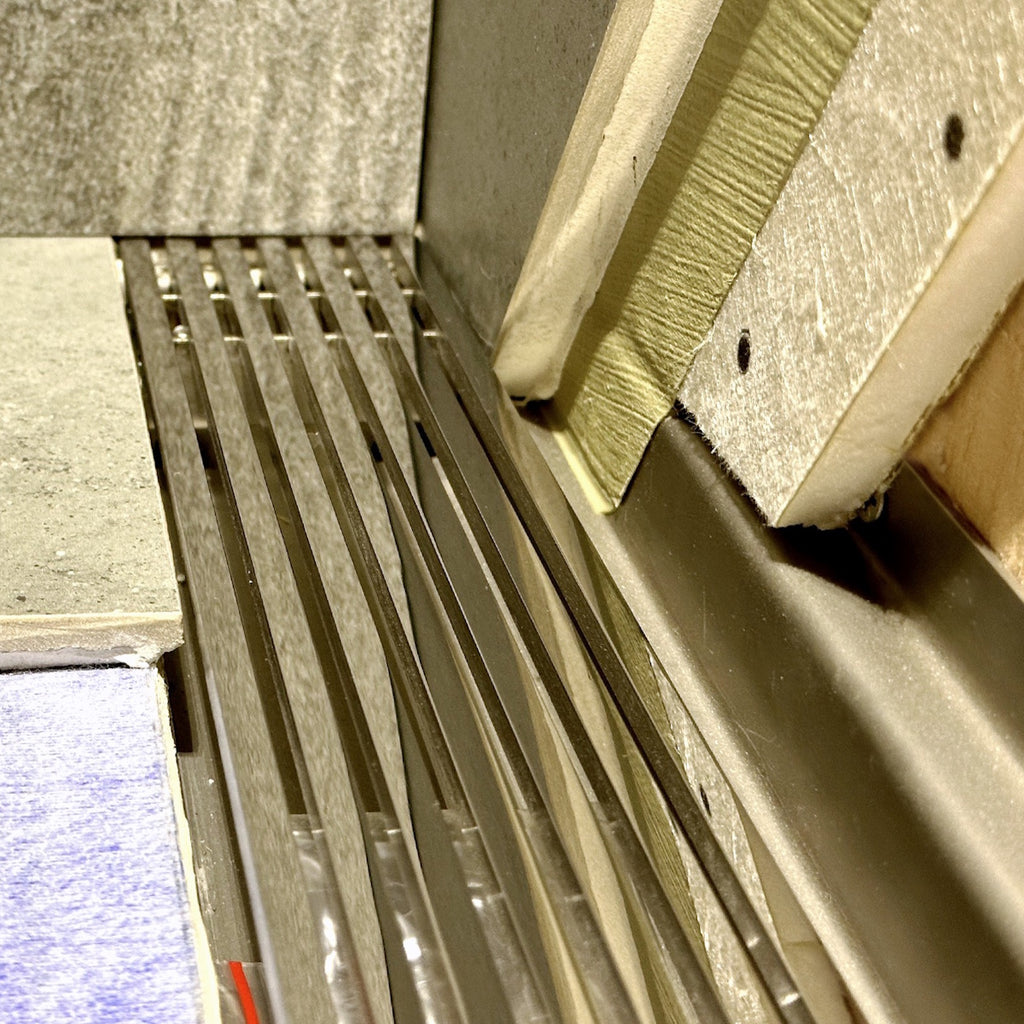

• Must be secured to wall framing (studs)
• Installs flush against the wall for a seamless appearance
• Full length measured from stud to stud (finish face of framing)
• Offered in three styles and multiple finishes

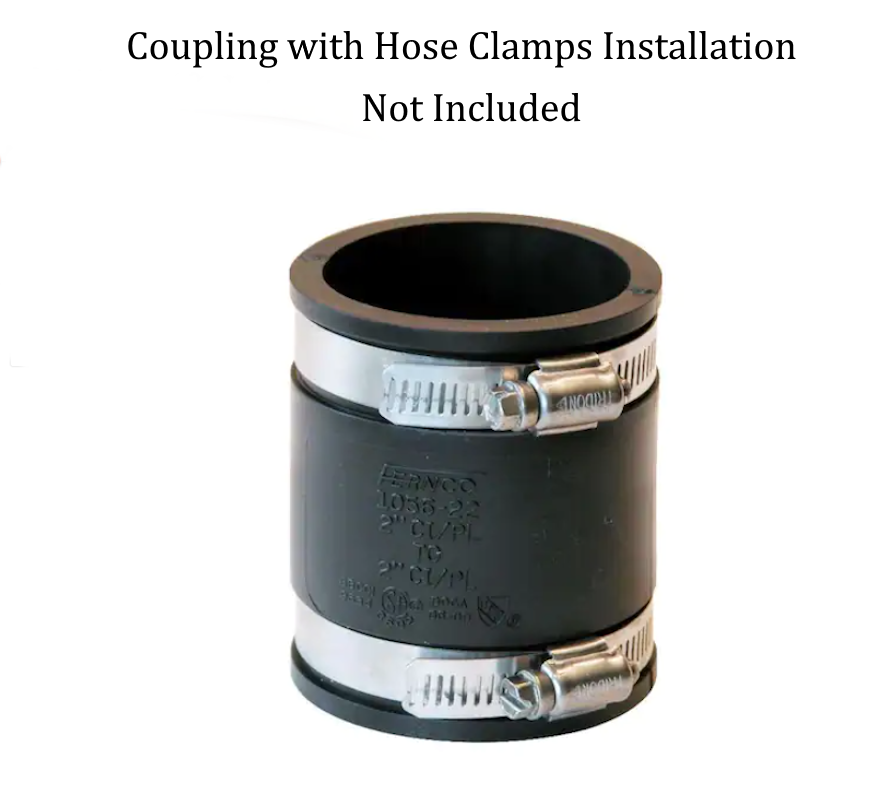

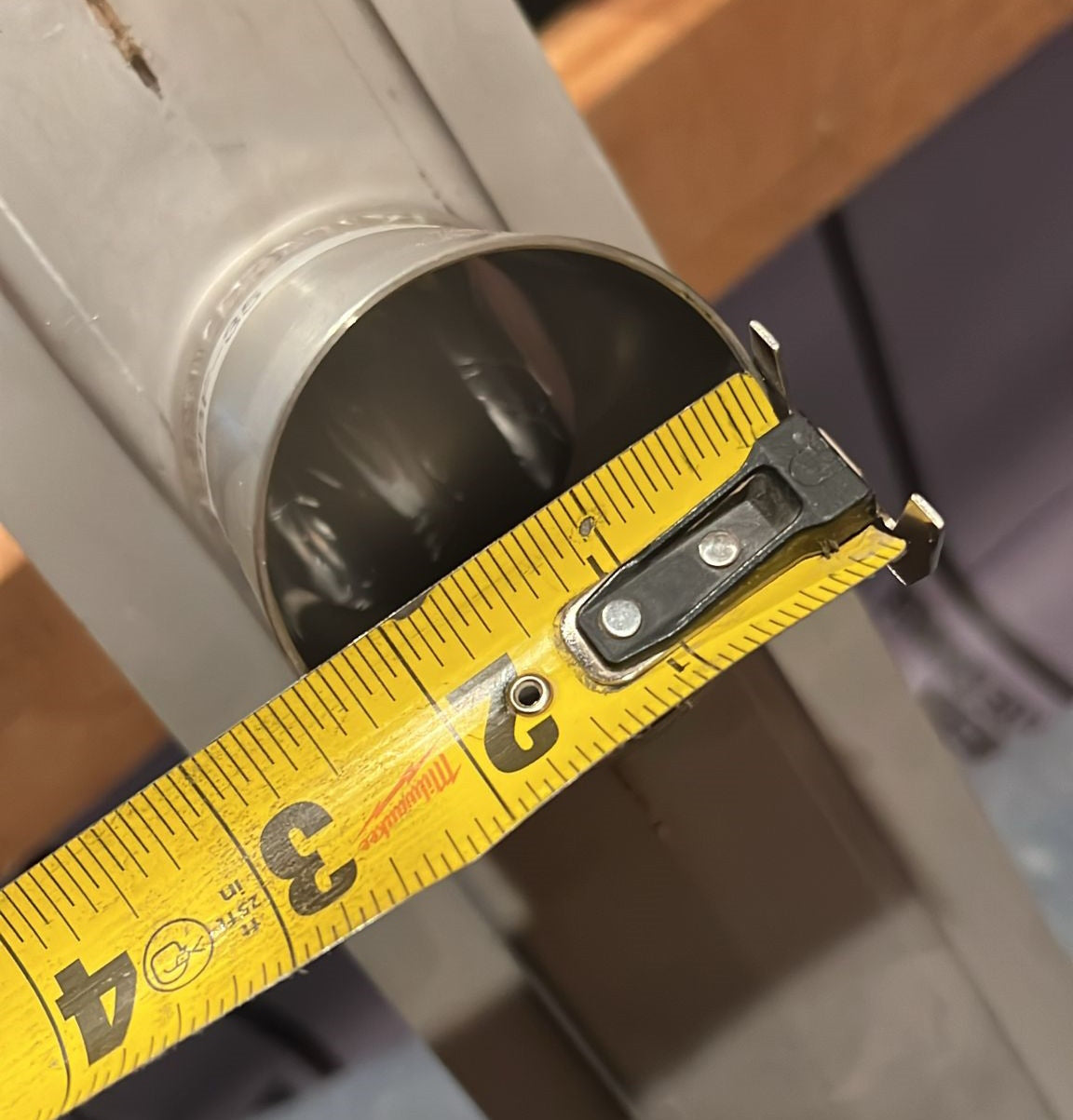

• No-hub coupling system with 2-3/8" outside diameter drain outlet
• Constructed from 14-gauge AISI 304 stainless steel, rust-resistant and electro-passivated

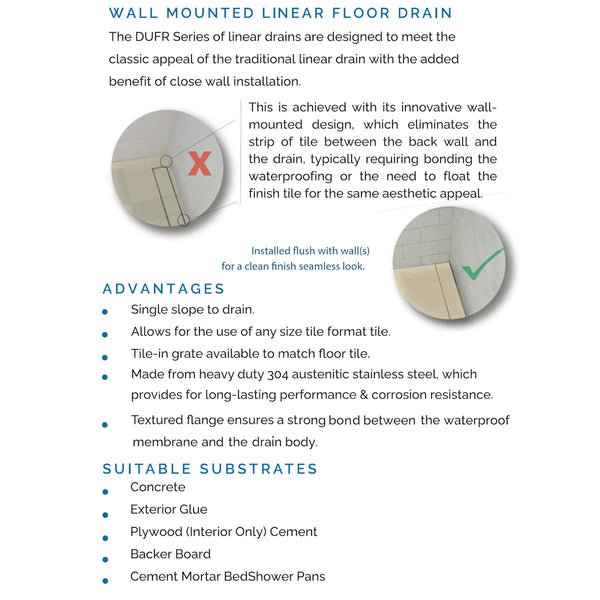

Suitable Substrates:

• Concrete
• Exterior glue plywood (interior use only)
• Cement backer board
• Cement mortar bed
• Shower pans

Available Sizes:

30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72"

(Note: Drains are measured from the outer edge of the flange. The visible grate is approximately 2" shorter than the full drain length.)

Package Includes:

• Drain body
• Grate
• Hair strainer
• Puller key

Additional Features:

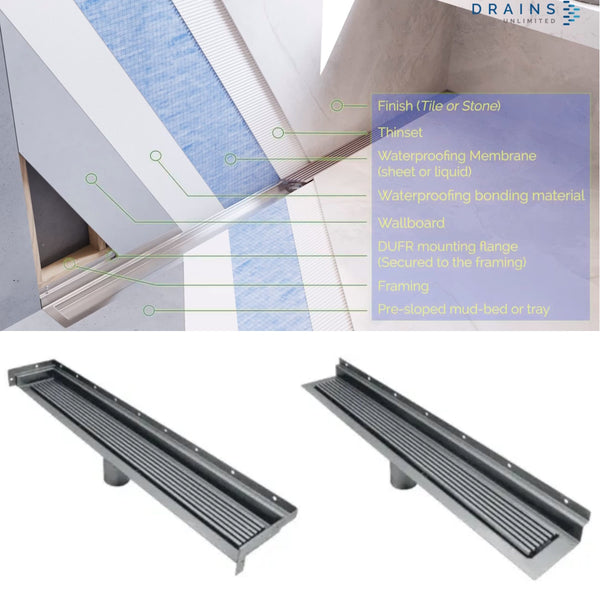

• Compatible with major waterproofing systems: Blanke Aqua-Shield, Laticrete, Mapei, Schluter
• Textured flange ensures a strong, waterproof membrane seal
• Removable grate allows easy cleaning and maintenance
• Hygienic, barrier-free design
• High-flow drainage performance
• UPC, CSA, and ASME certified

Perfect for:

Showers, bathrooms, hotel rooms and more

Drains Unlimited

Drains Unlimited designs and manufactures premium-quality shower drains in a wide range of sizes, styles, and finishes to match any project. Their exclusive DUWR Series wall-recessed linear drains offer a concealed, flush installation—ideal for luxury showers.

Custom configurations, such as side outlets or 316 stainless steel, are available upon request.

Contact us for more details.
