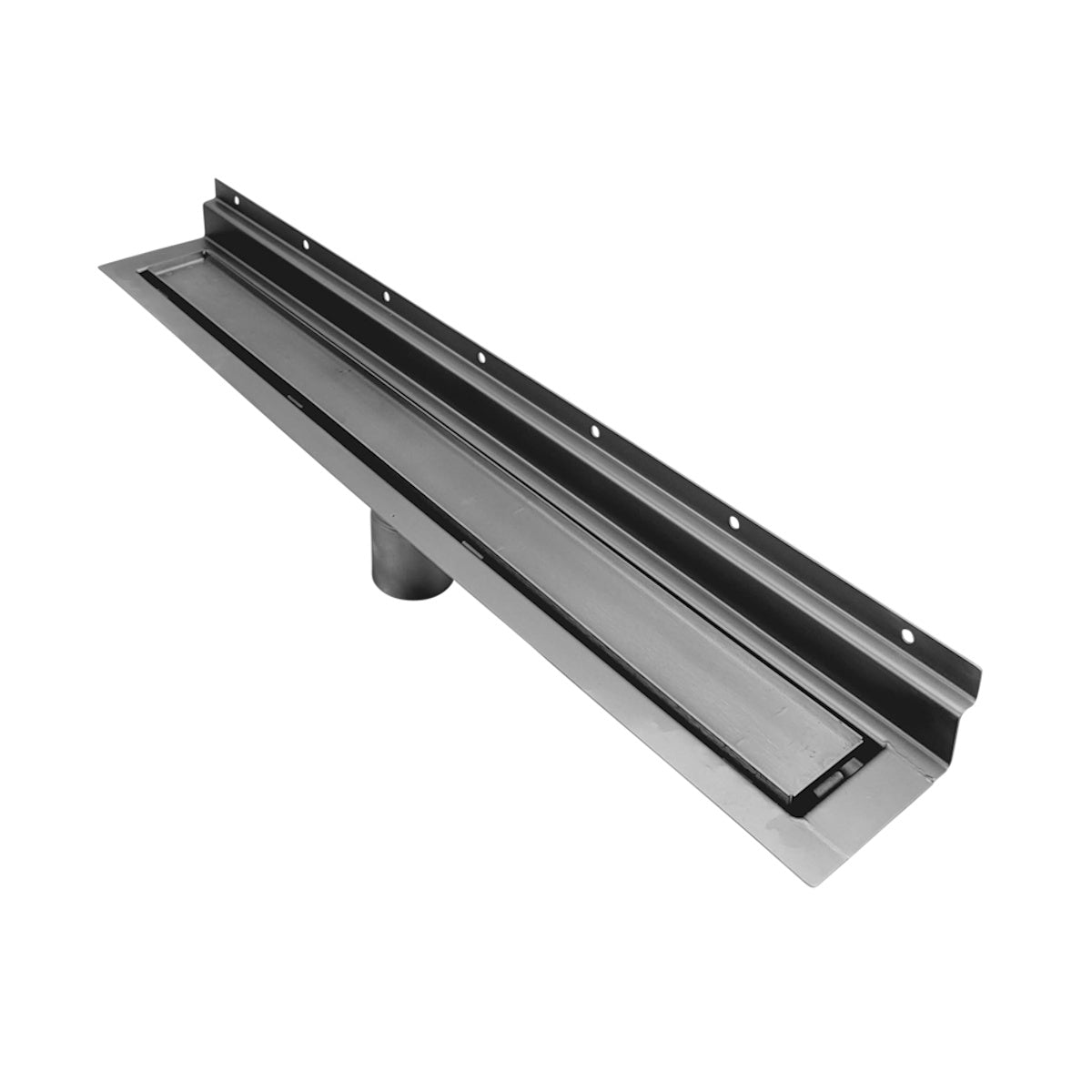

Wall Mounted Linear Floor Drain, invisible Tile Insert Cover – Backwall Return Flange Only

Upgrade your shower with the DUFR-TN Series wall mounted linear floor drain from Drains Unlimited. This tile-in drain installs flush with the wall, eliminating the need for a tile strip between the wall and the drain. It secures directly to wall framing, simplifies waterproofing, and removes the need to float the finish tile — resulting in a clean, modern shower design.

Flange Options

  • Backwall Return Flange Only: Ideal for curbed or curbless showers with 1/8" to 3/8" thick wall tiles.
  • Three Side Return Flange: Ideal for wall-to-wall installations with similar tile thickness.

Key Features

  • Installs flush with the wall for a seamless, frameless look.
  • Mounts directly to wall studs (stud-to-stud full-length design).

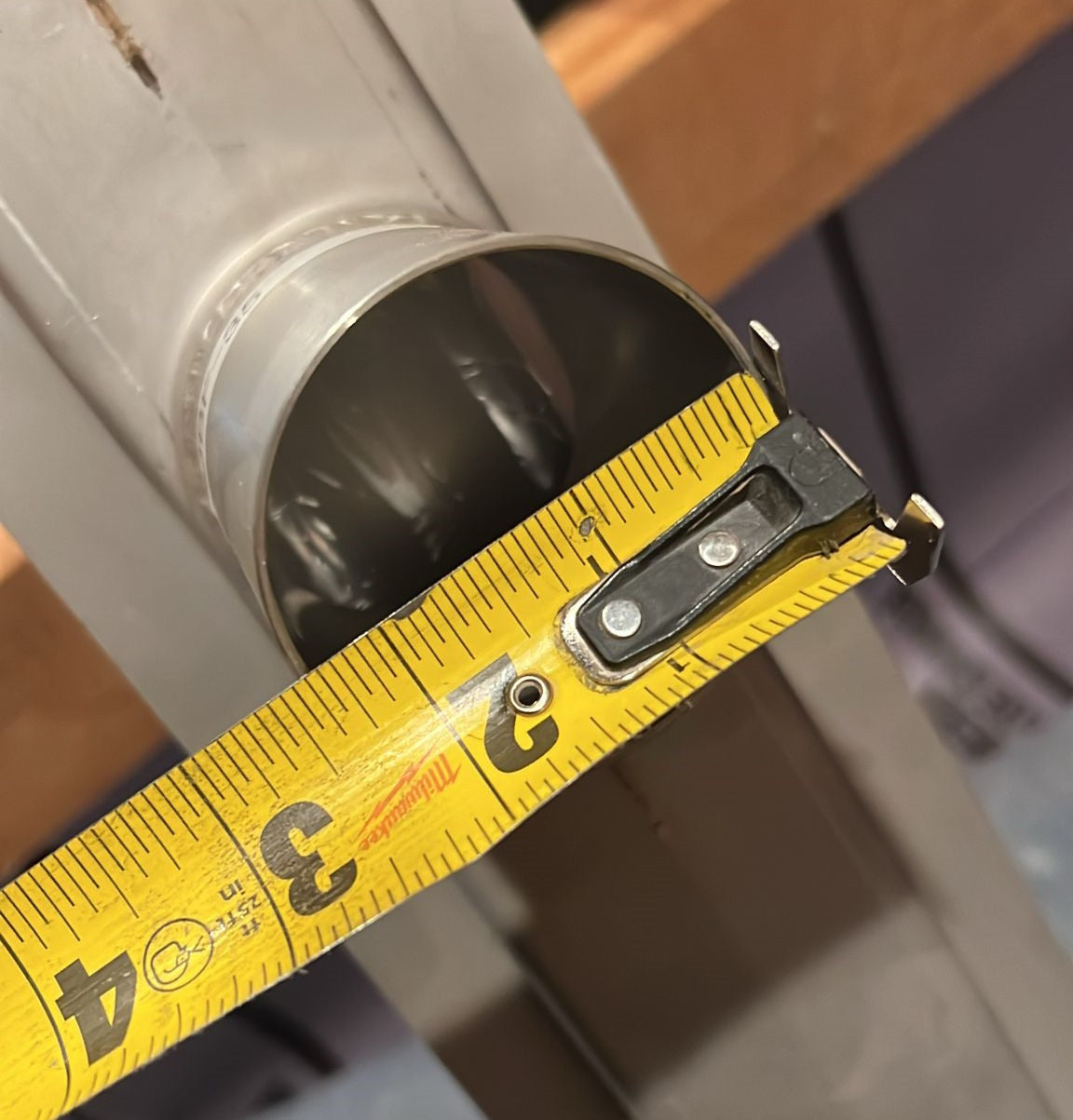

  • 2-3/8 inch outside diameter no-hub center outlet.
  • Textured bonding flange for waterproof membrane adhesion.
  • 2-1/2 inch wide tile insert grate with V-shaped bottom for efficient drainage.
  • 14-gauge AISI 304 stainless steel; rust-resistant and electro-passivated.

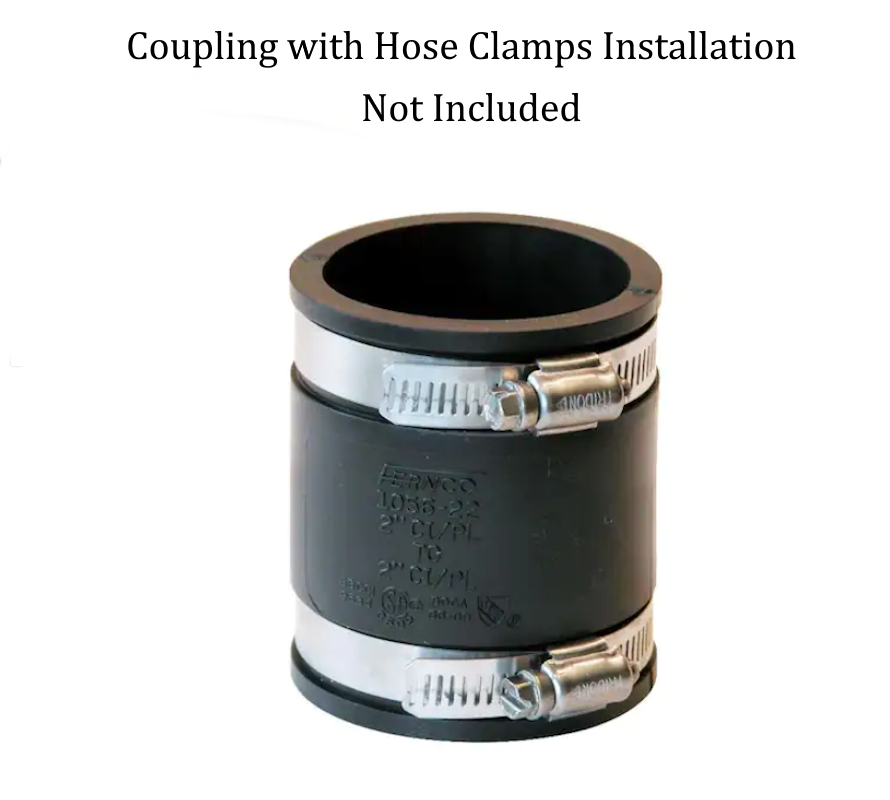

  • No-hub coupling compatible.

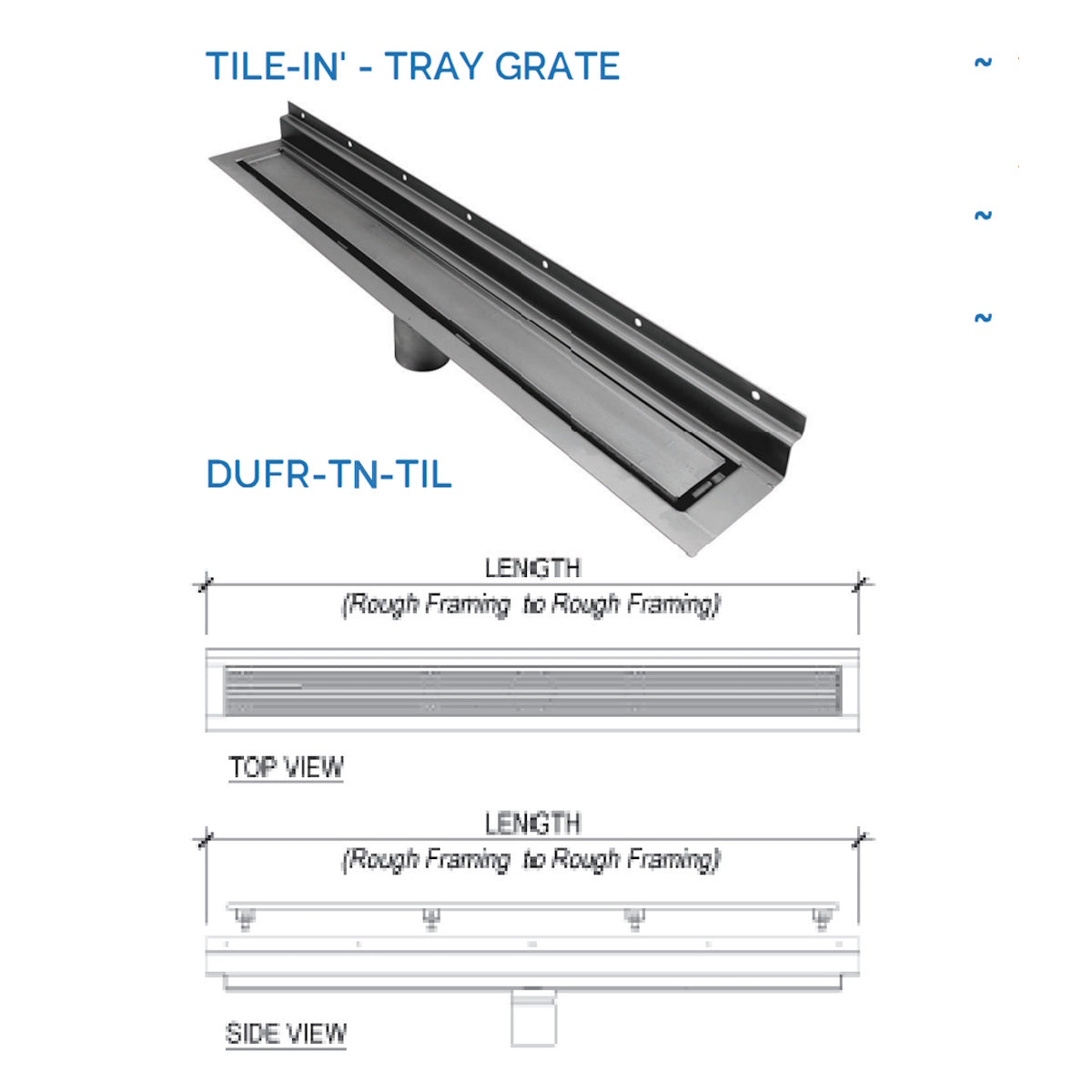

Available Sizes

30", 32", 34", 36", 40", 42", 44", 48", 54", 60", 66", 72"
(Drain length is measured at the outer flange. Visible grate is ~2" shorter.)

Compatible Substrates

  • Concrete
  • Exterior glue plywood (interior use only)
  • Cement backer board
  • Cement mortar bed
  • Shower pans

Package Includes

  • Drain body
  • Tile insert grate

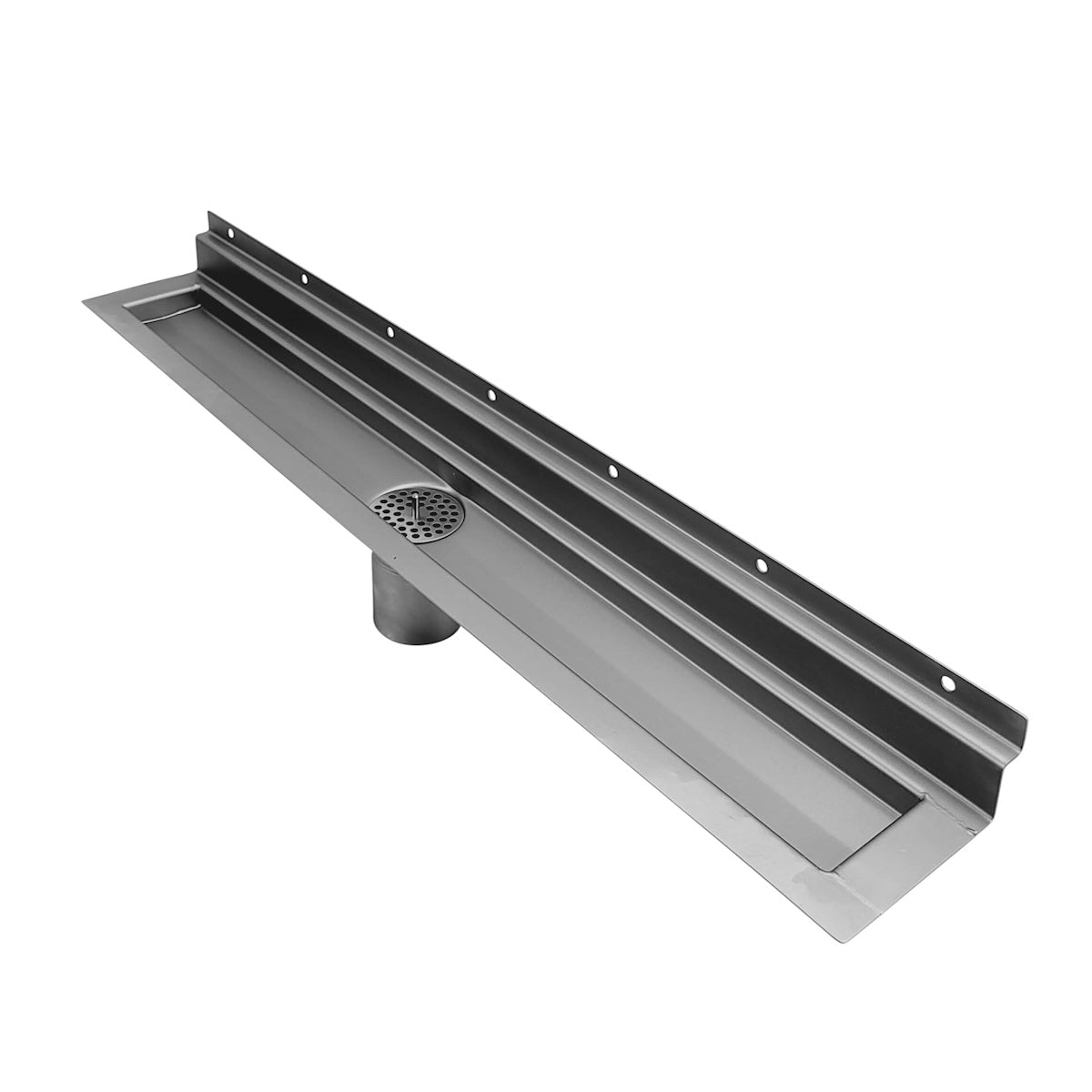

  • Hair strainer
  • Puller key

Additional Highlights

  • Removable grate for easy cleaning and maintenance
  • Single-slope design to direct water to the drain
  • High flow rate performance
  • SANS10400-compliant 75mm water seal
  • Barrier-free, hygienic design
  • Compatible with all tile sizes and formats
  • Excellent corrosion resistance; passivated finish
  • Certified: UPC, CSA, ASME
  • Works with leading waterproofing systems: Schluter, Laticrete, Mapei, Blanke

Applications

Ideal for modern showers, bathrooms, wet rooms, spas, hotel bathrooms, and kitchens.

More From Drains Unlimited

  • DUFB Series: Wall-adjacent linear floor drains in various styles and sizes
  • DUWR Series: Wall-recessed luxury shower drains
  • Customization available: Side or horizontal outlets, 316-grade stainless steel

Contact us for professional pricing and custom order options.
