SereneDrains WOW Horizontal Side Discharge Outlet with 5 Inch Tile Insert Square Shower Drain Kit

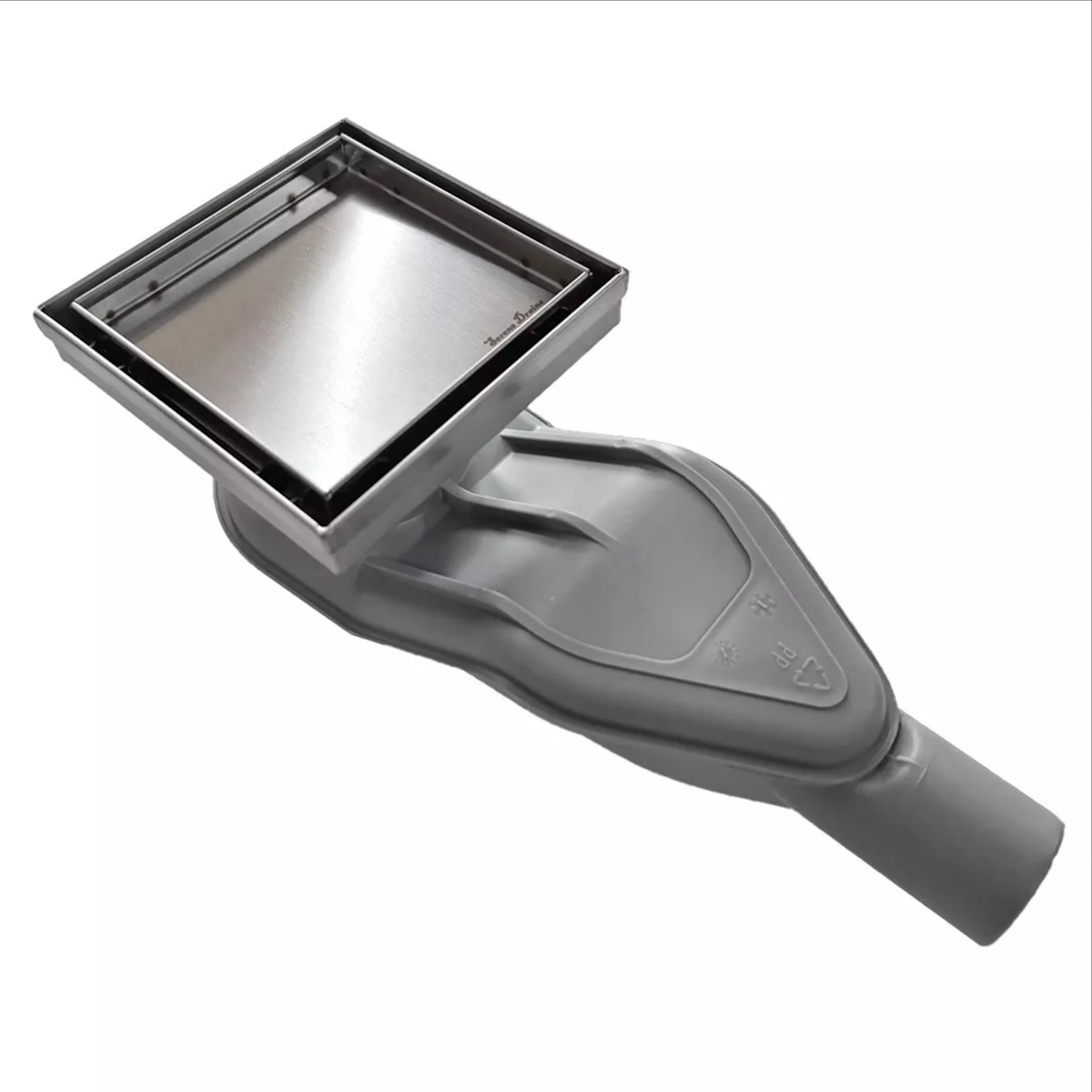

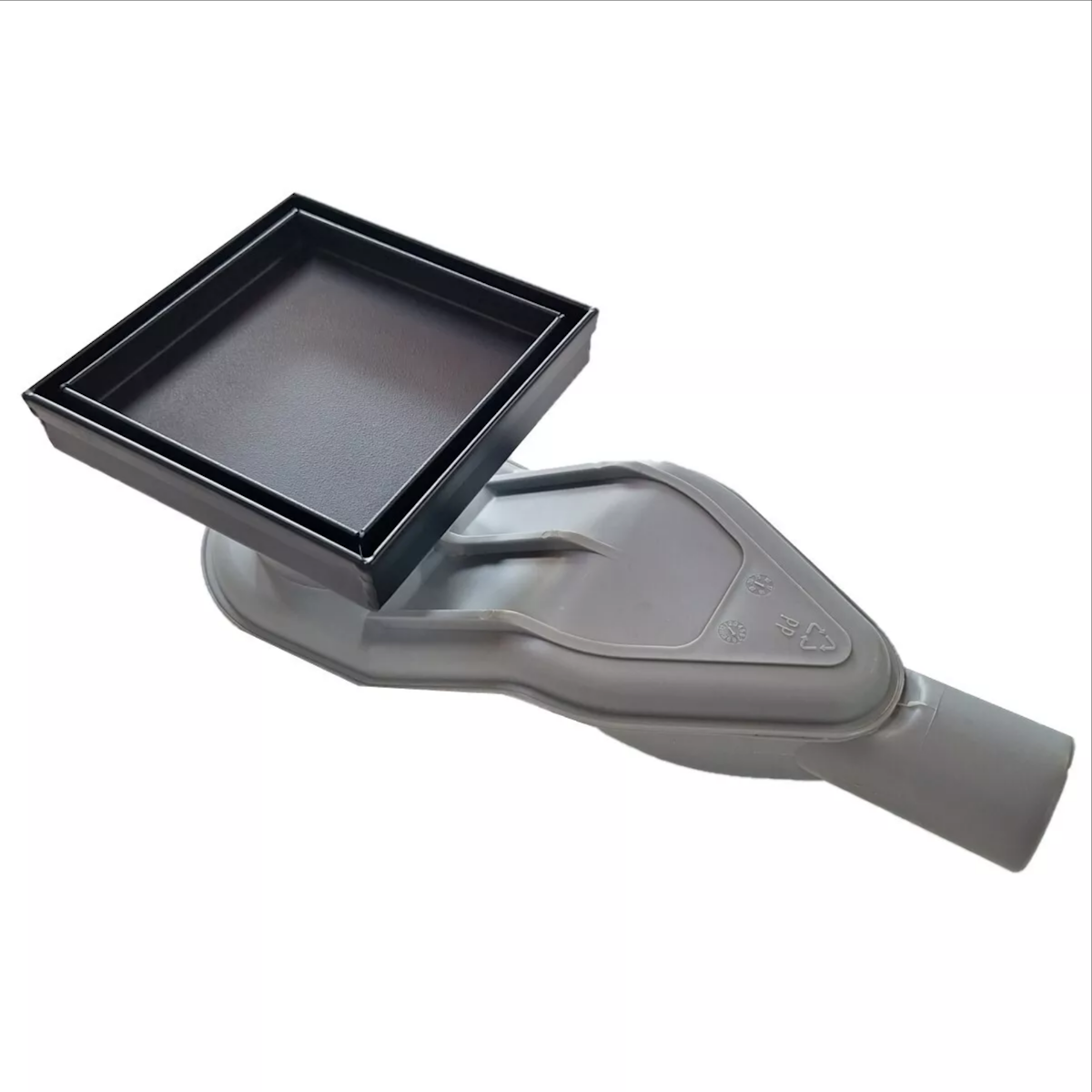

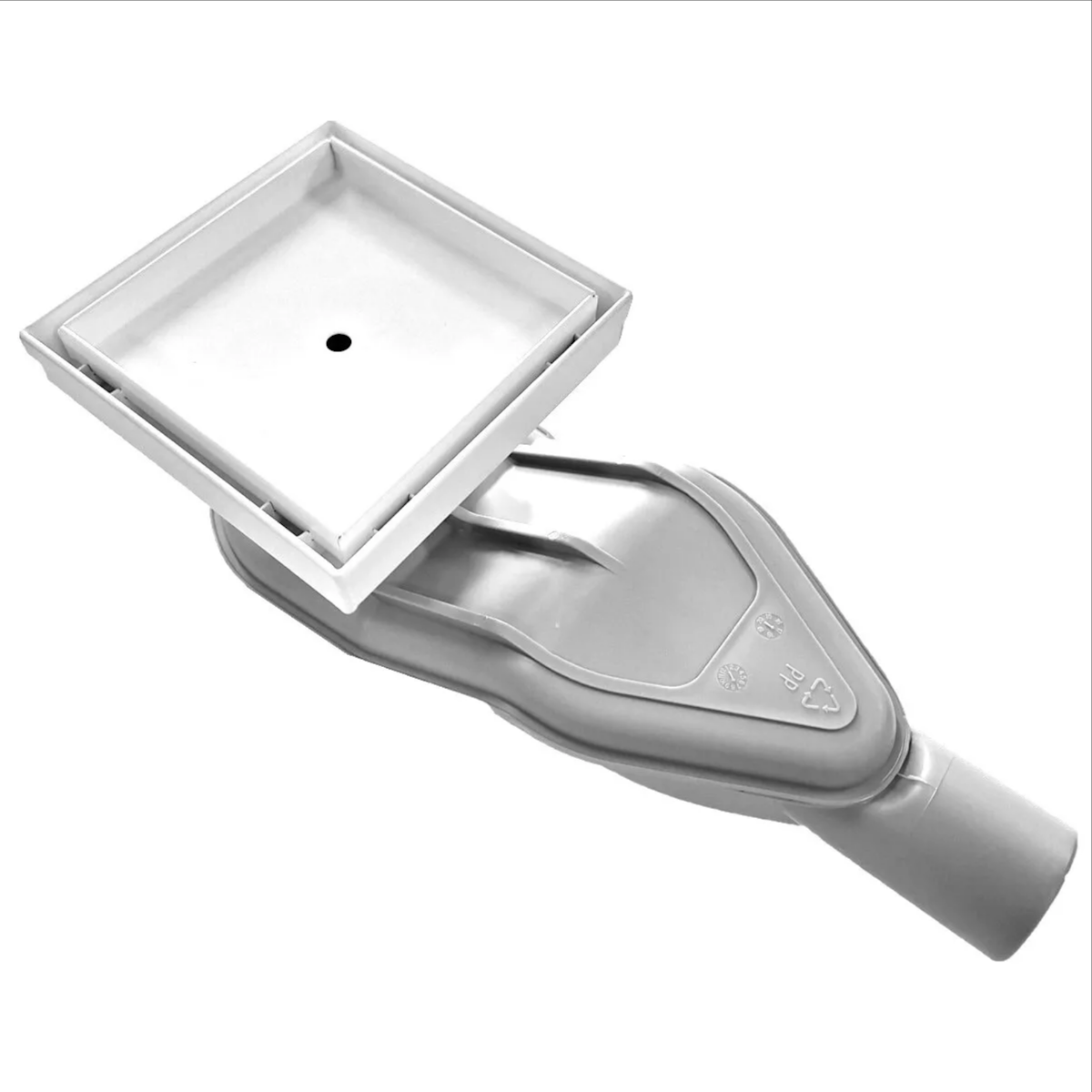

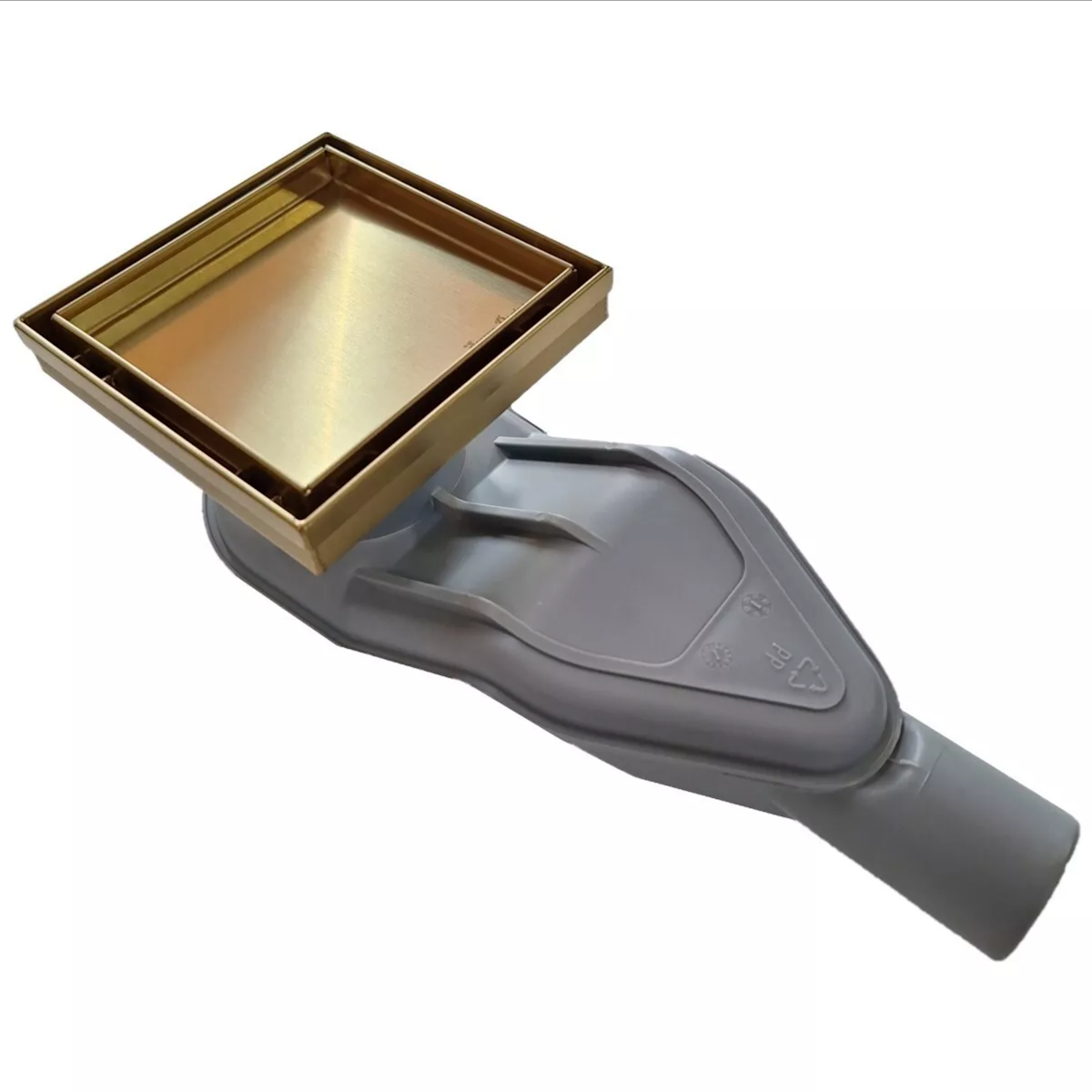

The SereneDrains Low-Profile Horizontal Side Discharge Outlet converts a vertical drain connection into a horizontal 2-inch outlet, allowing standard square and linear shower drains to be installed in low-clearance or space-restricted applications where vertical drainage is not possible.

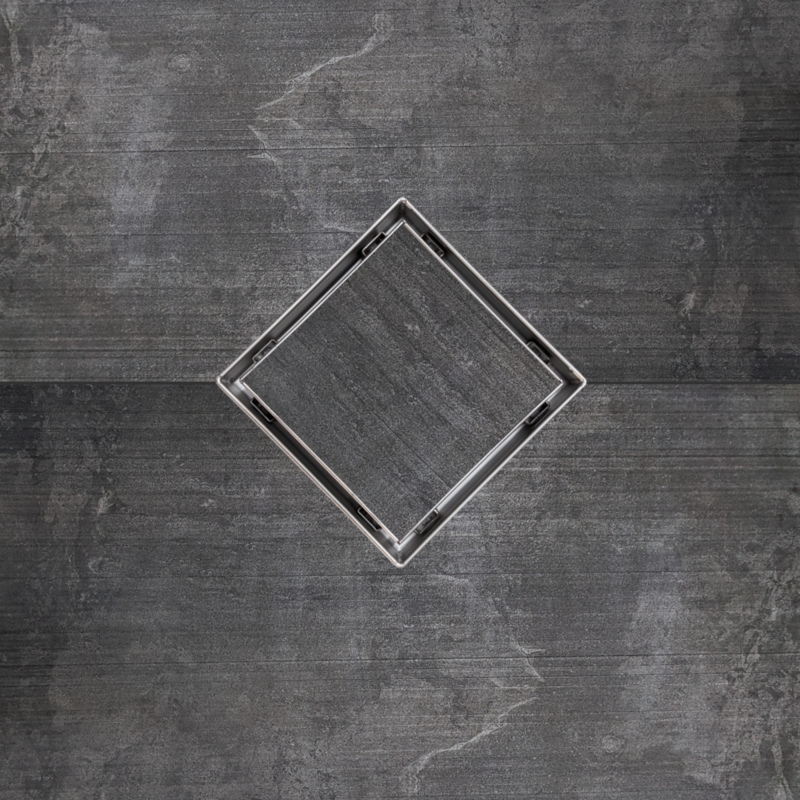

To simplify installation, we offer the side outlet discharge adapter paired with a SereneDrains 5-inch square tile-insert shower drain, crafted from durable 304 stainless steel. The tile-insert cover allows the same floor tile to be set into the drain, creating a seamless, concealed look that blends discreetly into the shower floor while maintaining efficient water drainage.

Available Finishes: Matte Black, Satin Gold, Brushed Nickel, Matte White.

What’s Included

• Horizontal converter body
• Rubber fitting for drainpipe connection
• SereneDrains stainless steel 5" tile insert square drain
• Integrated hair trap (free)
• Grate lifting hook
• Optional extension fitting (used only if additional connection height is required)

Why Use a Horizontal Shower Drain Converter

Key Benefits

Connection to Existing Plumbing
The horizontal outlet allows the new drain to connect to an existing drain pipe and P-trap that are not directly beneath the new drain location. This minimizes the need for extensive demolition and reduces both the mess and cost of the renovation project.

Accessibility in Challenging Installations
Ideal for slab foundations or second-story installations where there is no access below the floor. This flexibility makes projects feasible that would otherwise be impossible, particularly in older homes or buildings with limited plumbing access.

Enhanced Aesthetic Appeal
Horizontal shower drains provide a clean, modern look and can be integrated seamlessly into the floor, often along one side or wall of the shower.

Improved Water Drainage
Designed to handle a larger volume of water efficiently, helping prevent water from pooling in the shower.

Increased Design Flexibility
Allows the use of large-format tiles and barrier-free shower entries, making it ideal for accessible bathroom designs.

Easy Maintenance
Removable covers make horizontal drains easier to clean and maintain compared to traditional center drains.

Better Slope Management
Enables a single-slope shower floor toward the drain, simplifying design and construction.

Enhanced Accessibility
Ideal for walk-in showers and barrier-free environments, improving safety for individuals with mobility issues.

Reduced Clogging
The design helps reduce clogging and makes clearing debris easier if needed.

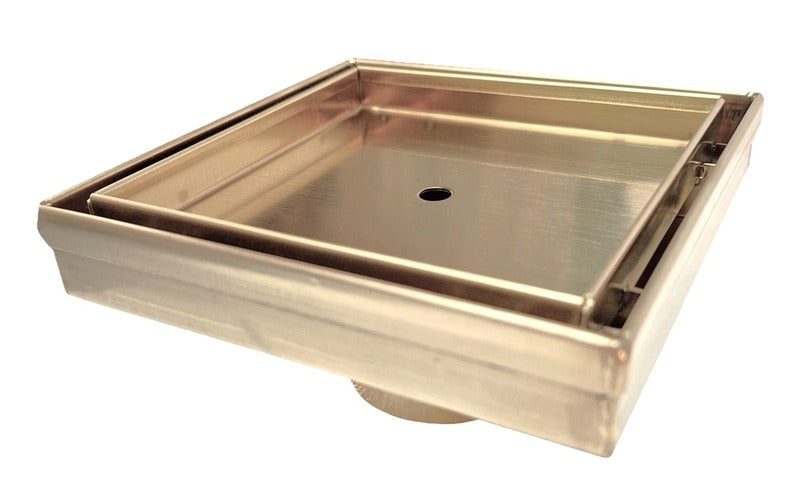

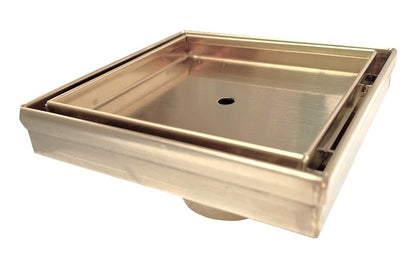

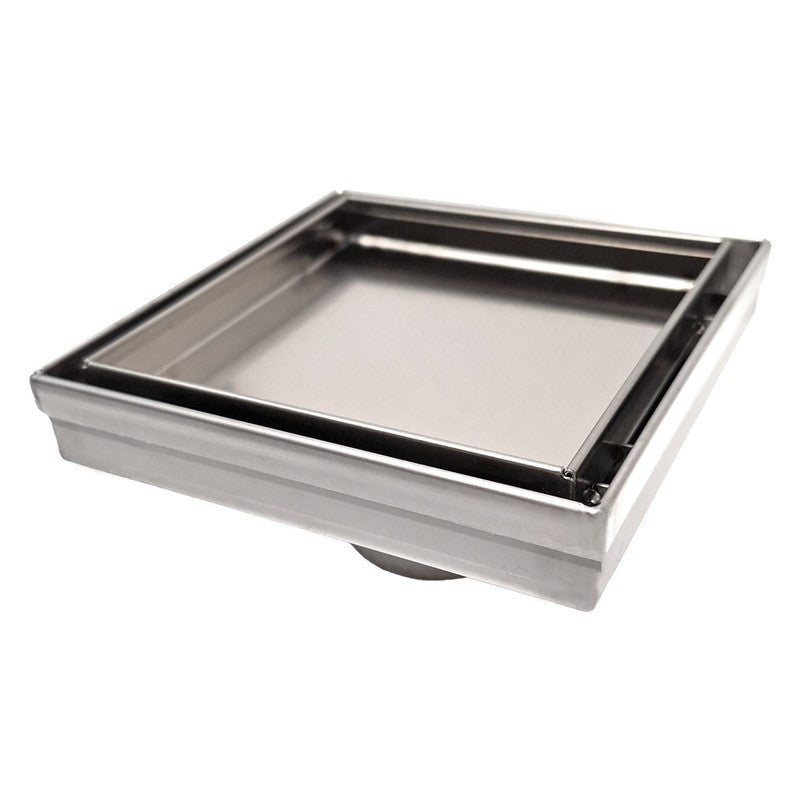

SereneDrains Tile Insert Square Shower Drains

Available Finishes:

• Brushed Stainless

• Matte Black
• Satin Gold
• Matte White


Features

Manufactured from 16 Gauge SS304 stainless steel for both the grate and body. The brushed steel finish protects against corrosion and rust.

Compatible with all waterproofing systems including Hot-Mop, liquid membranes, sheet membranes, and vinyl waterproofing. Bodies are fully welded and leak-tested prior to dispatch.

The removable grate allows quick access for cleaning using the included hook.

Rounded (folded, not welded) frame design creates a structure that is twice as strong and smooth underfoot. No plastic parts.

Technical Specifications

• Outlet size: 2 inch
• Flow rate: 6.36–7.92 GPM (US) / 0.4–0.5 L/s
• Compatible with tiles up to 10 mm depth (14 mm lip)
• No screws

• No special cleaning required

Note: This side-discharge outlet adapter is also compatible with other SereneDrains linear drains and square shower drains, allowing for total design flexibility.
